dicodes Dani Box Micro - 05 Main Menu Operations (Page 7); Extended Functions Menu Access; Error Message Reference

05MainMenu(Page7)
ExtendedFunctionsMenu
HeaterMenuSettingsrelatedtotheheaterorcoil
ModMenuSettingsrelatedtotheindividualusageandappearance
ValueMenuProvidesseveralstatisticsofvaping
TheExtendedFunctionsMenuprovidesthreelogicallygroupedsub-menues:
ErrorMessages
Ifanerroroccurs,themoddirectlyjumpstotheerrormenuanddisplaysthe
errornumberandamnemonic(short-term)description.
Thepossibleerrormessagesare:
TheExtendedFunctionsMenuoffersalotofsettingoptionsofthedevice,toprovidethehighestpossible
flexibilityfortheusertoindividuallyadjustittowhateverpreferences.Normally,oncethesettingswere
made,theuserwillneedtochangetheparameterrarely.Inordertokeepthemainmenuasshortas
possible,theextendedfunctionsmenuwascreated.
Themanyoptionsmayfrightensomeoftheusersinitially.Butwithouttheextendedfunctionsmenu
themodwouldnotbeabletoaddressalldifferentcustomerrequirements.Pleasetakeabitoftimeto
getfamiliarwiththemenu.Wearesure,assoonasyouhavegainedanoverview,theindividualsetup
isawalk-over.SeethenextpagesforamoredetailedexplanationoftheExtendedFunctionsMenu.
0OvrVolt:Theinputvoltageistoohigh.TheDaniBoxMicrooperateswithonebattery.
Iftheinputvoltageexceeds4.5Vthiserrormessageisdisplayed.Reducetheinput
voltagetothespecifiedrange.
1ChkAtom:Noatomizerdetectedoropencoil.
2TempRef:Aproblemduringthetemperaturereferencemeasurementoccured
3N/A
4OverCur:Shortoncoilorcoilbreakdown(open)
5LowBat:Thebatteryvoltageunderload(withcurrentdrainedfromit)has reachedtheminimum
dischargelevel,definedwithparameterUbatMinintheextendedfunctionmod-menu.
6EleHot:Theelectronicshaveheateduptoomuchandneedstocooldown.Thiserrorwillnot
occurwithnormalusageofthemod.
7TimeOut:Themaximumpuff-timeislimiteddependingonpower.Forapower<20Witis20
seconds.Above20Witdecreasesby0.5secondsperWatt,above40Witis10seconds.
8LowR:InBypassmodethecoilresistanceistoolow.

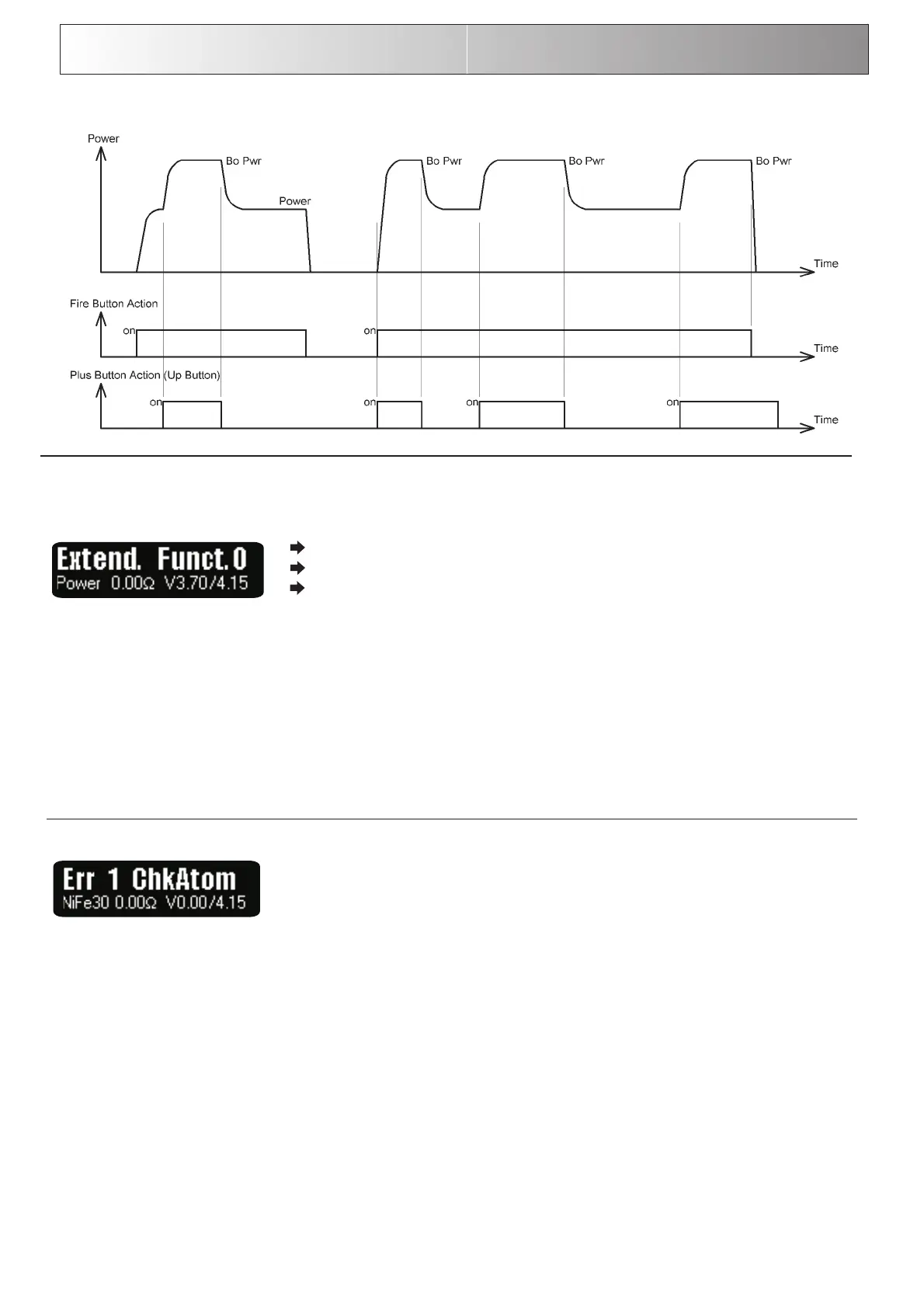

IllustrationoftheDynamicBoostOperation
