Digi XStream-PKG User Manual

Digi Application Guide
Configuring XStream-PKG Serial RF Modems for Serial Bridging
March 2012 v.1 Digi International 3 of 5
g) Scroll down to Networking Set the HP (Hoping Channel) value to “1” and DT (Destination
Address) to “10”
- The Hoping Channel value is the channel on which the radio modem will
communicate. These channels are not non-interfering. Both modems must be
communicating on the same channel
- The Destination Address is the address that identifies the destination of the RF
packet. Only radio modems having matching addresses can communicate with each
others.
h) In the Modem Parameter and Firmware click the “Write” button
4.2 Configuring the Remote XStream modem
a) Proceed to a factory reset of the modem to restore default parameters:
a. Power ON the modem
b. Set switches 1 & 2 to their ON state (up)
c. Power OFF the modem for at least one second, then on again

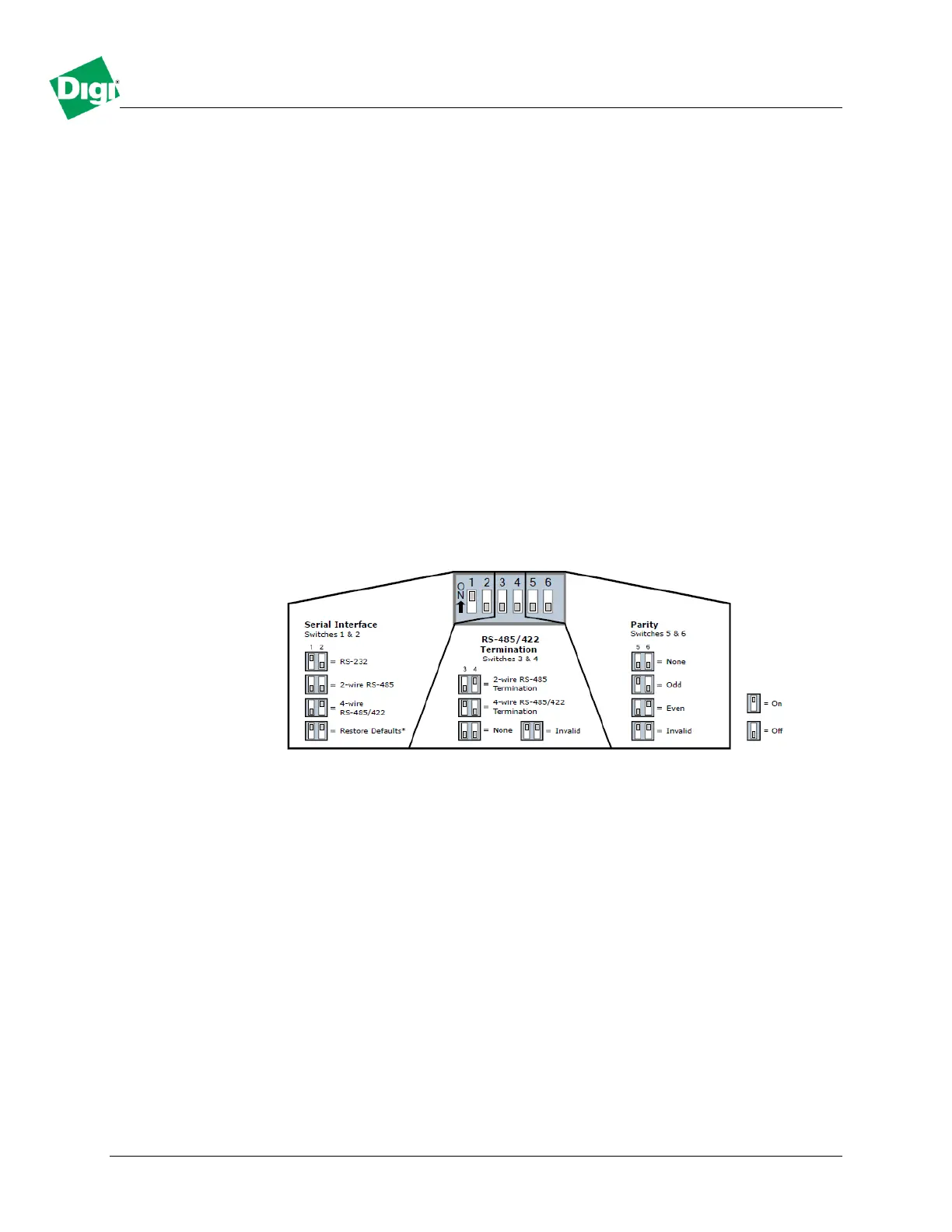

b) Verify that the DIP switches settings are the following : 1 ON all OFF
c) Connect the XStream modem to the Local Terminal computer using a RS232 Straight
Thru cable
d) Open the XCTU application and select the COM port of your computer
e) In our example we use the 19200 version of the XStream mode, so set the baud rate
accordingly and click the “Test Query” button, a new window should appear :

Digi XStream-PKG Specifications

General

Connectivity LEDs	Yes
Certification	FCC, IC
Operating temperature (T-T)	-40 - 85 °C
Interface	RS-232/485
Modulation	FSK
Frequency range	902 - 928 MHz
Receive current	70 mA
Transmit current	170 mA
Power down current	1 mA
Operating frequency	900 MHz
Receiver sensitivity	-110 dBm
Throughput data rate	9.6 Kbit/s
Spread spectrum method	FHSS
Impedance	50 Ω
Antenna connector type	RP-SMA
Input voltage	7 - 18 V
Supported network topologies	Peer-to-peer, Point-to-multipoint, Point-to-point

Weight and Dimensions

Weight	200 g
Dimensions (WxDxH)	69.9 x 139.7 x 28.6 mm
