VuLink Operation & Installation Guide 860-00198-00 REV A
Digital Ally, Inc. | Model-Specific Wiring Diagrams
4-1

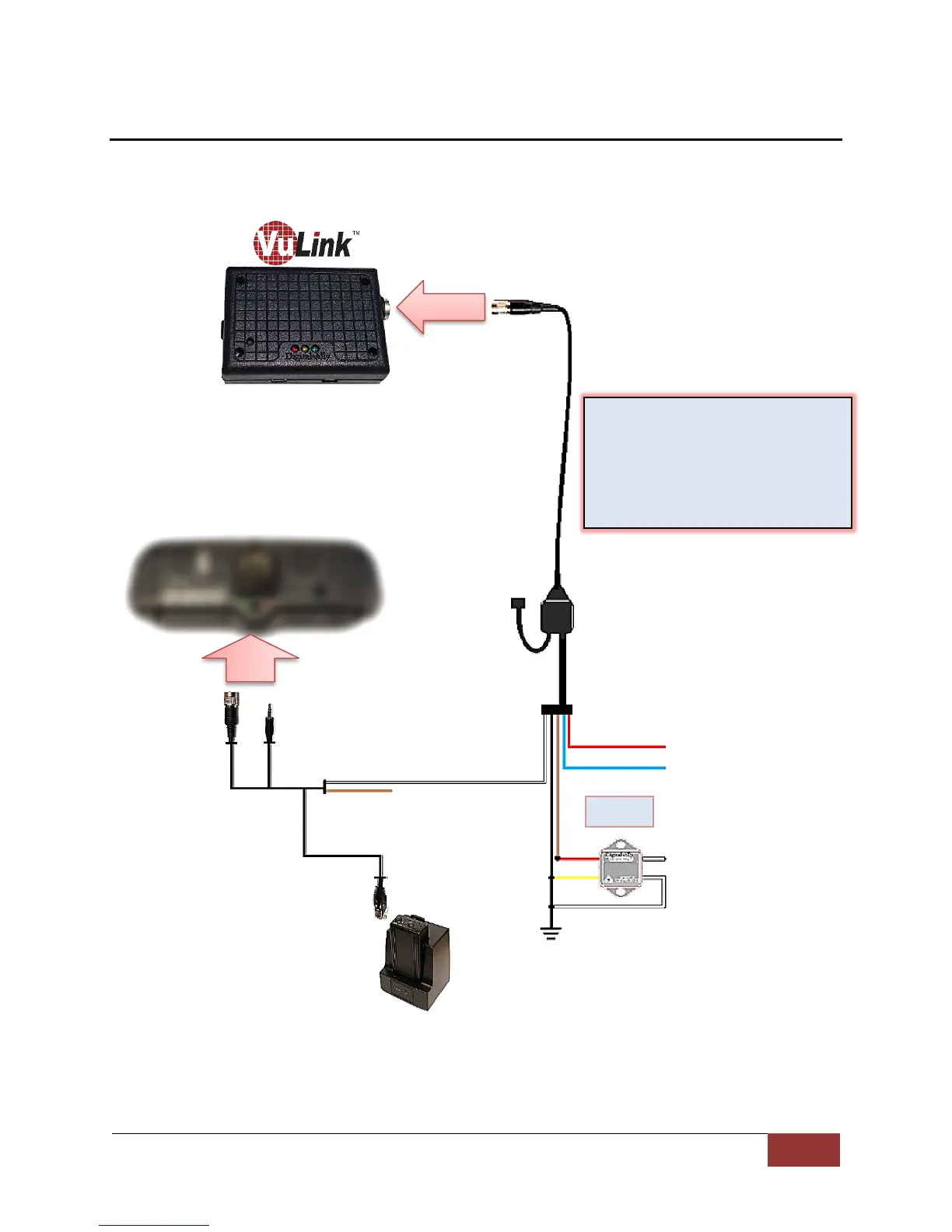

Section - 4: Model-Specific Wiring Diagrams
DVM-100 / DVM-400
VuLink Base Cable
008-01456-00
RED = +12VDC Battery
BLUE = +12VDC Ignition
BLACK = Chassis Ground
WHITE = Emergency Light Input
WHITE = Tie to ground
Relay
(see
belo
w)
DWM800
Sensor Cable
Connect WHITE wire from
VuLink Base Cable to WHITE
wire of DWM800 sensor cable
VuLink Relay Wiring
WHITE = connect to Emergency lights
WHITE = connect to chassis ground
YELLOW = connect to chassis ground
RED = connect to BROWN wire on
VuLink base cable
NC
