Braking
resistor
connector
Thermal
trip
DBE1500
DBE2200
Braking
resistor
connector
Thermal
trip
DBE140
DBE220
Internal braking resistor connections
DBE420
DBE600
DBE750
DBE1100S
External braking resistor connectionsModels
Main
power
connector
Braking
resistor
connector
External
braking
resistor
Thermal
trip
Thermal
trip
Braking
resistor
connector
Thermal
trip
External
braking
resistor
External
braking
resistor
Upper
power
terminals

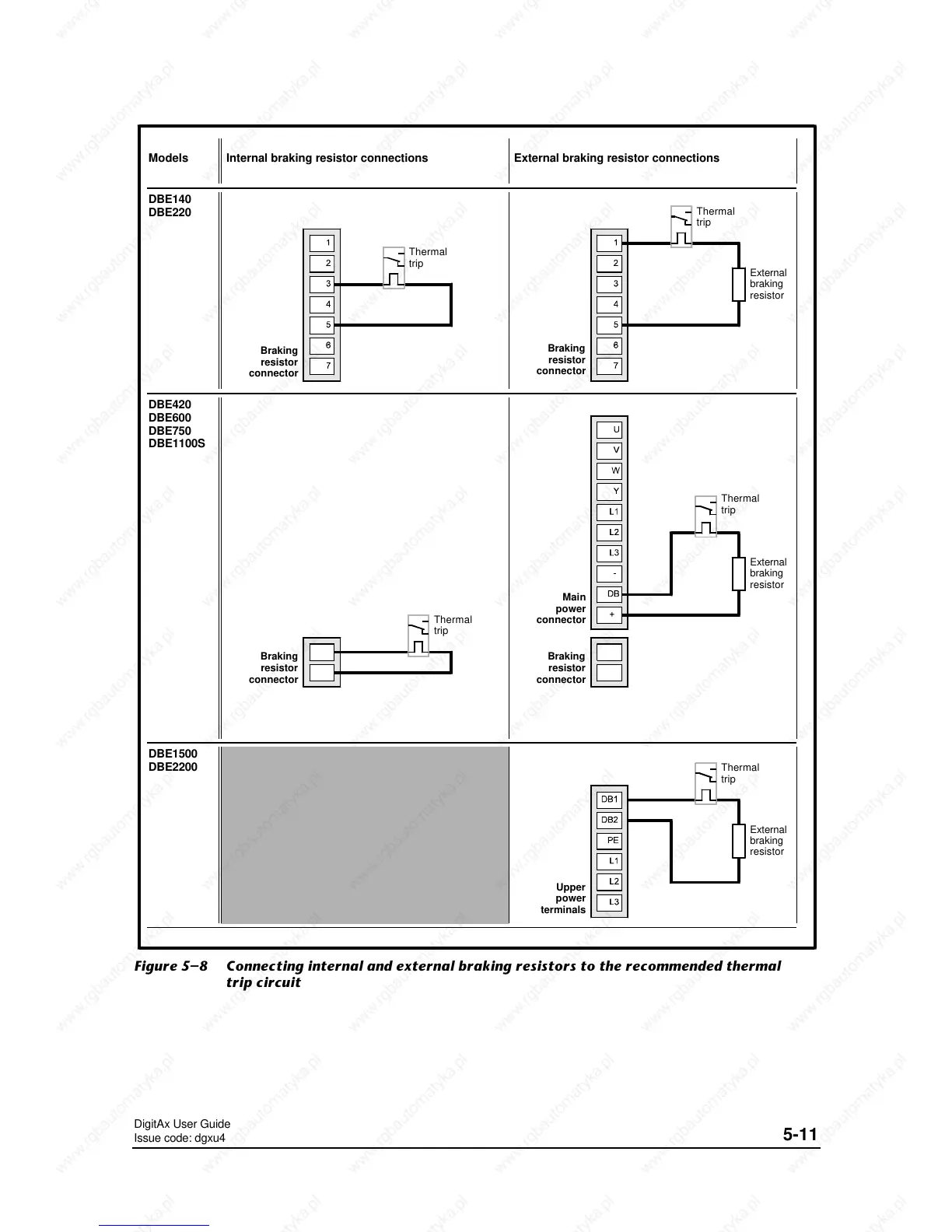

Figure 5–8 Connecting internal and external braking resistors to the recommended thermal
trip circuit
