DigitAx User Guide
Issue code: dgxu4
10-18
Start
Orientation
function
Stop with ramps
b22 = 0
End
b53 = 1
b53 = 0
b22 = 1
Set:
Pr27, Pr37, Pr53, Pr54
to the required
orientation values
Set Pr9, Pr10, Pr11, Pr12
Used in speed control mode only.
Activated when b18 is set at 1
or +24V applied to pin B6 (b18 set at 0)

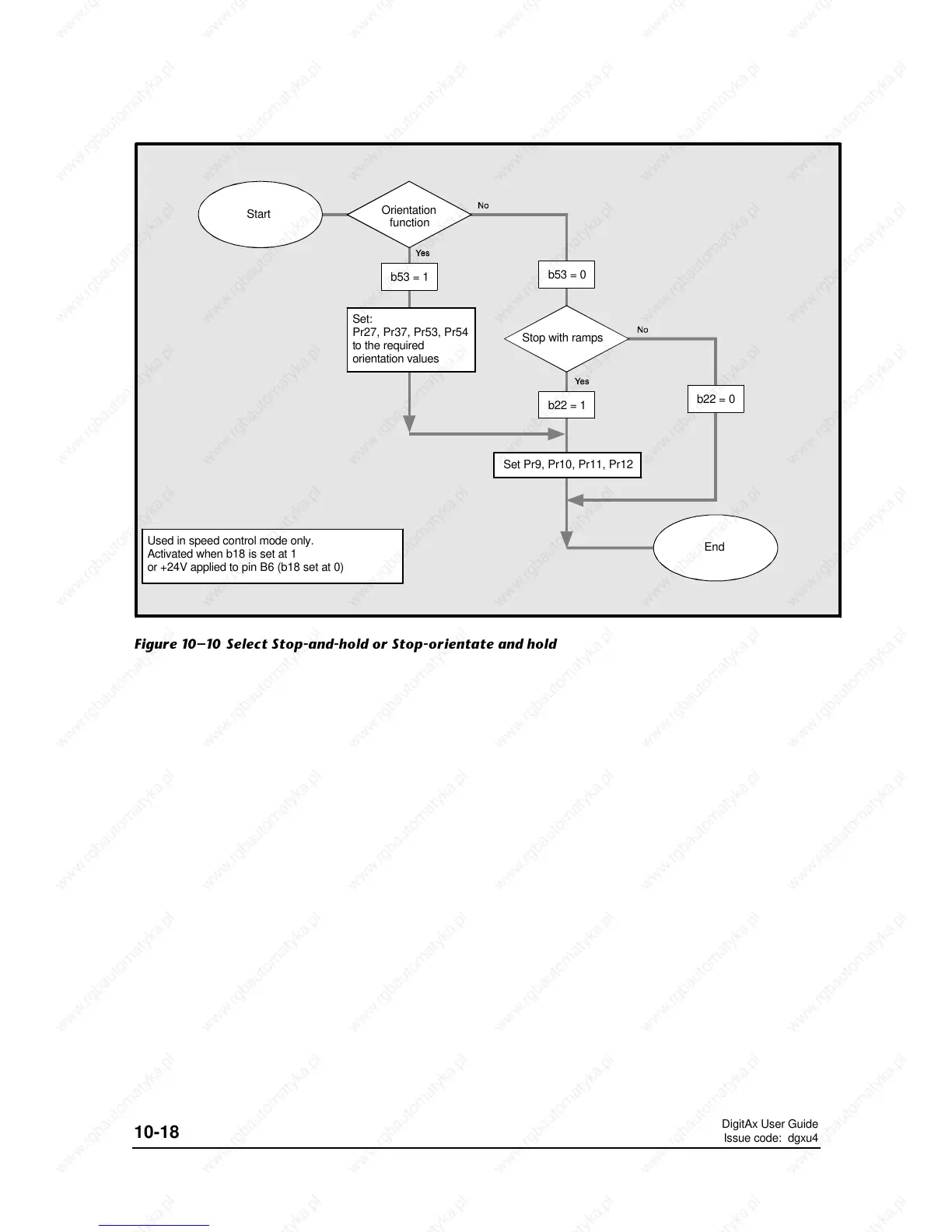

Figure 10–10 Select Stop-and-hold or Stop-orientate and hold
