DigitAx User Guide
Issue code: dgxu4

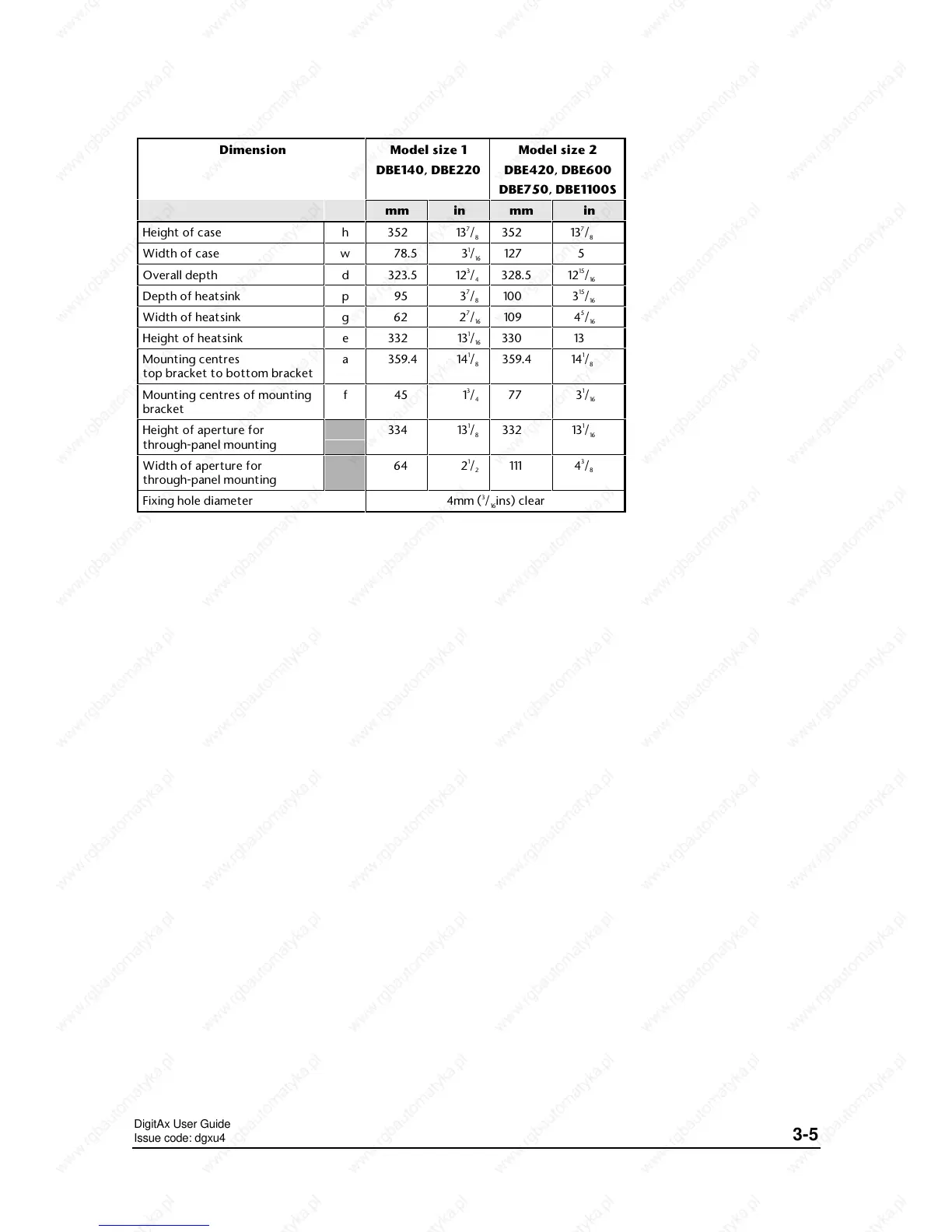

3-5
Dimension Model size 1
DBE140, DBE220
Model size 2
DBE420, DBE600
DBE750, DBE1100S
mm in mm in
Height of case h 352 13
7
/
8
352 13
7
/
8
Width of case w 78.5 3
1
/
16
127 5
Overall depth d 323.5 12
3
/
4
328.5 12
15
/
16
Depth of heatsink p 95 3
7
/
8
100 3
15
/
16
Width of heatsink g 62 2
7
/
16
109 4
5
/
16
Height of heatsink e 332 13
1
/
16
330 13
Mounting centres
top bracket to bottom bracket
a 359.4 14
1
/
8
359.4 14
1
/
8
Mounting centres of mounting
bracket
f45 1
3
/
4
77 3
1
/
16
Height of aperture for
through-panel mounting
334 13
1
/
8
332 13
1
/
16
Width of aperture for
through-panel mounting
64 2
1
/
2
111 4
3
/
8
Fixing hole diameter 4mm (
3
/
16
ins) clear
