4. Specifications
1. Frequency response: 30Hz-20 kHz
2. Sensitivity: -34dB ± 2dB (0dB = 1V/Pa at 1kHz)
3. Output impedance: 150Ω ± 30% (at 1kHz)
4. Load impedance: ≥1000Ω
5. Equivalent noise level: 16dBA
6. Maximum sound pressure level: 130dB (at 1kHz ≤1% T.H.D)
7. Signal to noise ratio: 78dB
8. Electrical current: 3mA
9. Material: Metal
10. Cable length: 1.5M

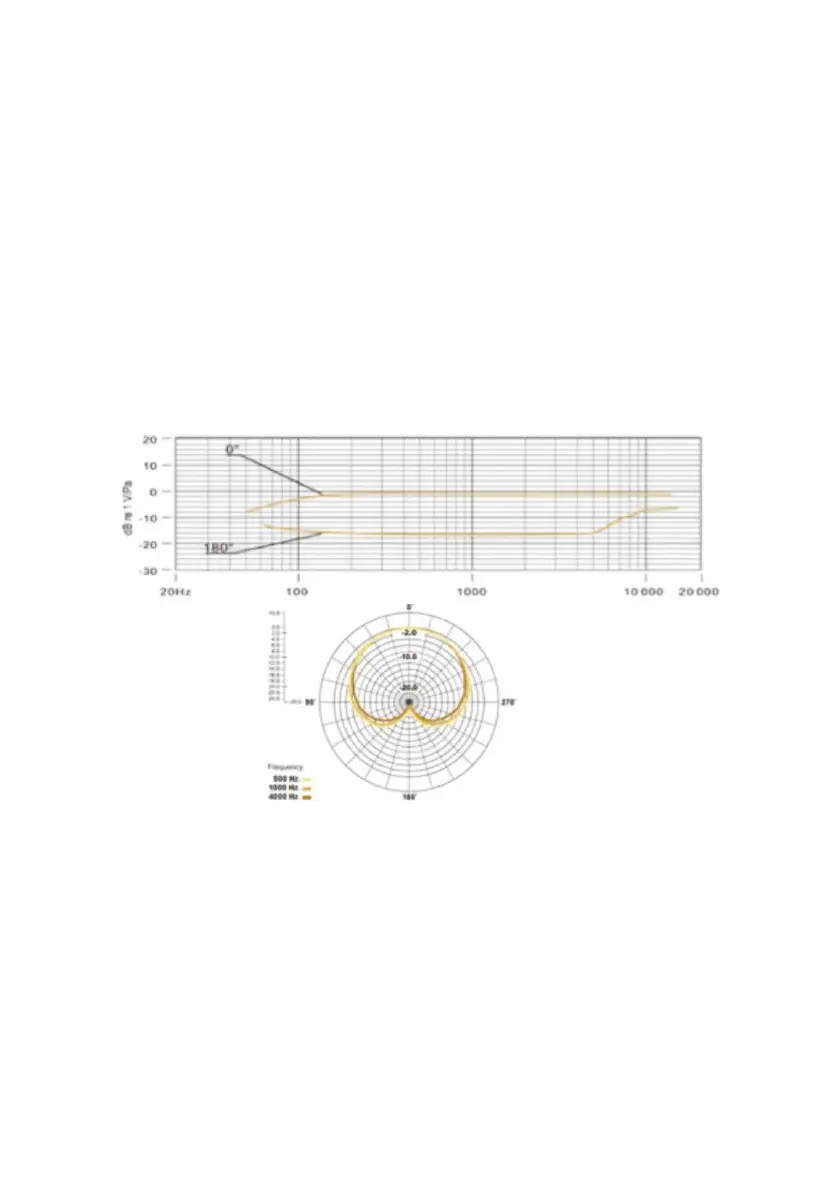

Polar Response
5. Microphone setup
1. Plug one end of the USB cable into the USB port of the
microphone and connect the other end to the computer. After
connecting the USB cable, you can start working directly
