4

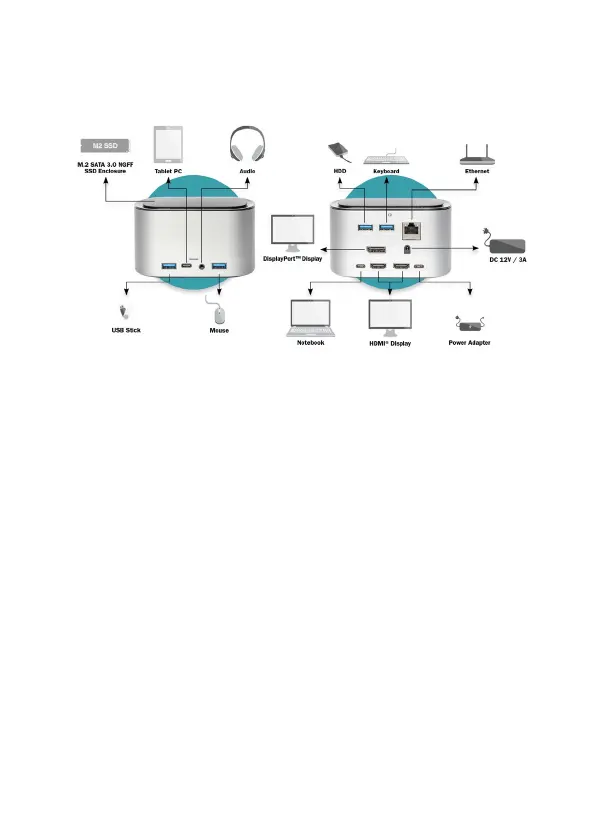

Connection
Features
Front:
1. M.2 SATA 3.0 NGFF SSD Enclosure Transfer speed: 5Gbps
2. Exclusively design e d for S ATA-based M.2/ NGFF (B key & B+M Key)
SSD ONLY
3. Support SSD lengths including: 80 mm (2280), 60 mm (2260),
42 mm (2242) and 30 mm (2230) M.2 NGFF SATA SSD up to 2TB.
NOTE: It doesn’t support M.2 NVMe PCI-E SSDs, M.2 PCIe AHCI SSDs,
or other M.2 non-SATA devices.
4. LED indicator
5. USB-A 3.0 (data + downstream charge): 5Gbps, 5V/1.5A @7.5W
6. USB-C 3.0 (data + downstream charge): 5Gbps, 5V/3A @15W
7. 3.5mm Audio & Microphone
8. USB-A 3.0 (data + downstream charge): 5Gbps, 5V/1.5A @7.5W
Back:
1. USB-A 3.0: 5Gbps, 5V/0.9A @4.5W
2. USB-A 3.0: 5Gbps, 5V/0.9A @4.5W
3. RJ45 Gigabit Ethernet: 1000Mbps
4. DP: 4K x 2K @60Hz / 3840x2160
5. DC: 36W(12V/3A) power adapter for docking's power supply
