5
6. USB-C: connect to host
7. HDMI 1: 4Kx2K 30Hz / 3840x2160 max
8. HDMI 2: 4Kx2K 60Hz / 3840x2160
(work separately while source is DP 1.4 )
4Kx2K 30Hz / 3840x2160
(work separately while source is DP 1.2 )
9. USB-C PD3.0: Upstream charging the source devices such as
Laptop/Notebook, charging limited to 87-96W for safety and affected
by different firmware. Support 100W power adapter
In the box
1 x Product
1 x 36W (12V/3A) power adapter
1 x USB-C to USB-C cable
1 x Screw set (include a screwdriver)
1 x User manual
M.2 NGFF SATA 3.0 SSD Enclosure:

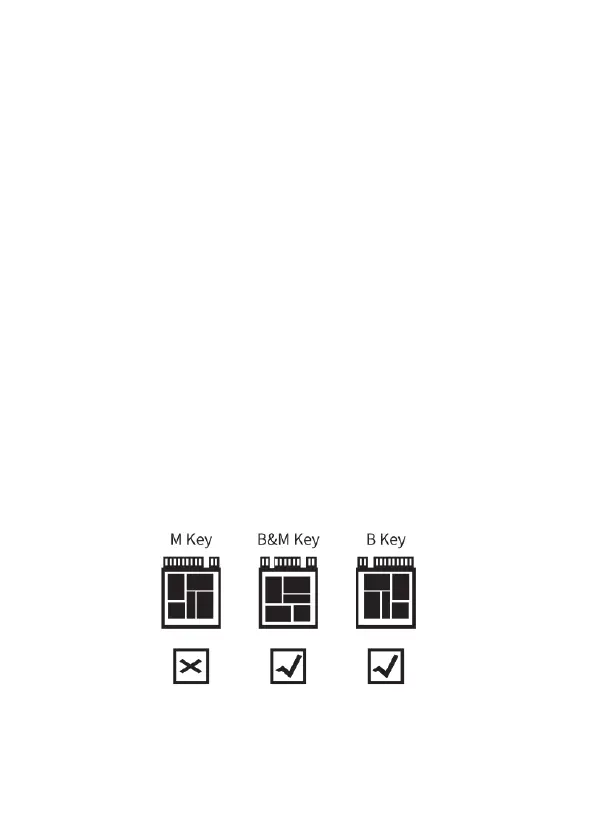

1. Exclusively designed for SATA-based M.2/ NGFF，insert the correct M.2
SSD properly. (B key & B+M Key) SSD, do not support M key M.2 SSDs.
NOTE: It doesn’t support M.2 NVMe PCI-E SSDs
2. It is normal that the case heats up since the high-speed M.2 SSD drives
generate a lot of heat while working.
3. Most of the new SSD need to be initialized, partitioned and formatted.
