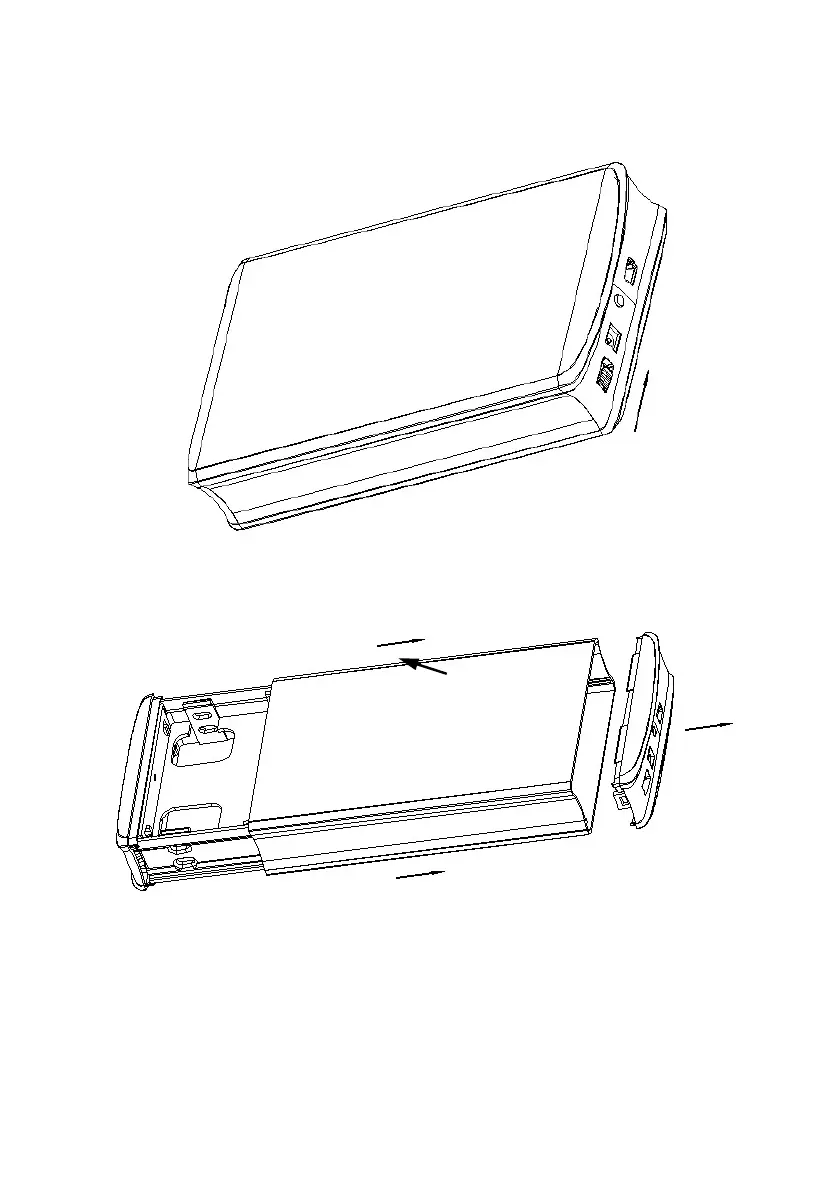

Step 2: Pull out the plastic frame from the aluminum-shell
Step 3: Insert the HDDs to 7+15P SATA connectors on the PCBA
Corresponding. Fix two HDDs by the screws
