15
|

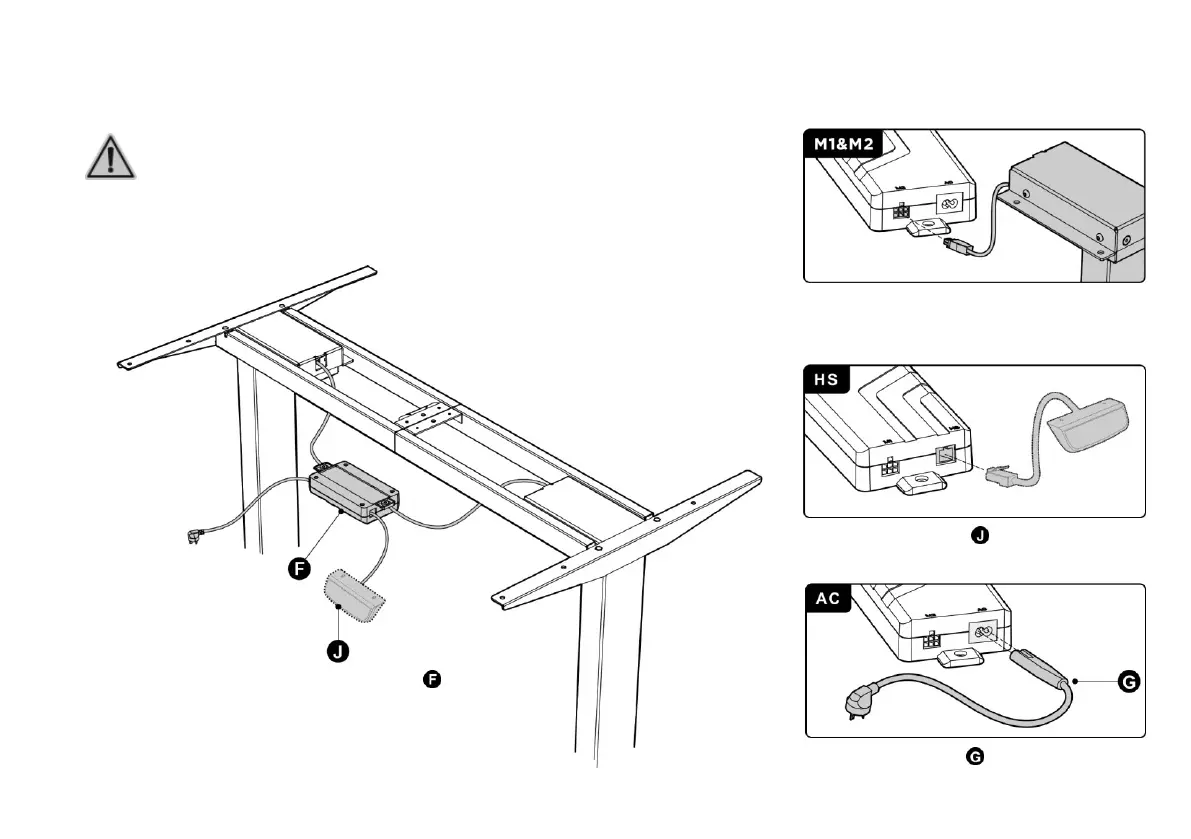

Attaching the Control Box
Turn over the desk frame with the crossbar facing up.
At least two people are required when turning over the
desk frame. If only one person turns over the desk frame,
serious bodily injuries might occur.
Connect the cords, control box and motors.
Note:
Please make sure the slot on the control box is facing upward.
There is no corresponding relation between the motor ports and
the lifting columns.
The picture of the controller is for your reference only.
Actual product may vary.
Connect the two motor cords to the two ports
marked "M1" and "M2" (one on each side of the
control box).
Connect the controller cord to the port
marked "HS".
Insert the power plug in the port marked "AC".
