Digitus DA-90453 - Page 7

7
7. Assembly instruction

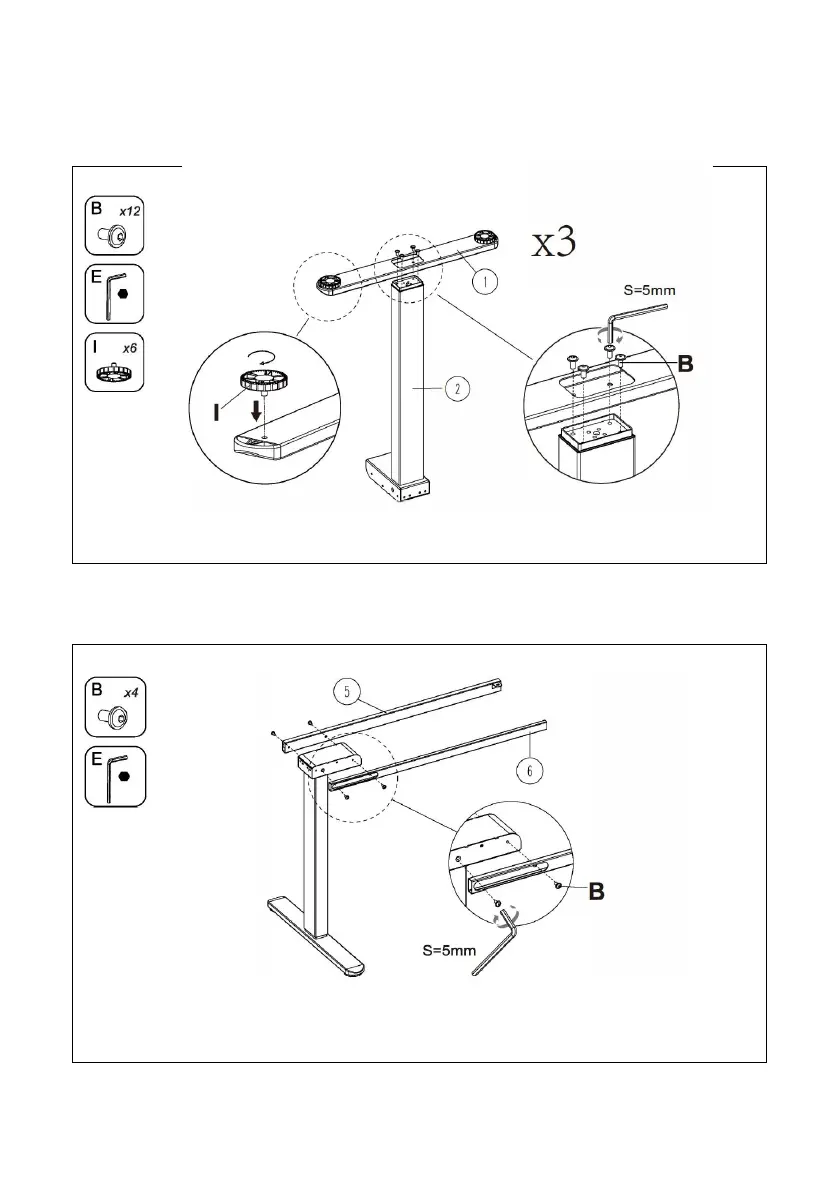

Step 1: Install the feet
Connect the feet (l) and the lifting column (2) with screws (B), and tighten
them with the allen key (E).
Step 2: Install the connection rod.
Using screws (B) to connect the lifting column with connection rods (5) and
(6) and tighten them with the allen key (E).
