Digitus DA-90453 - Page 9

9

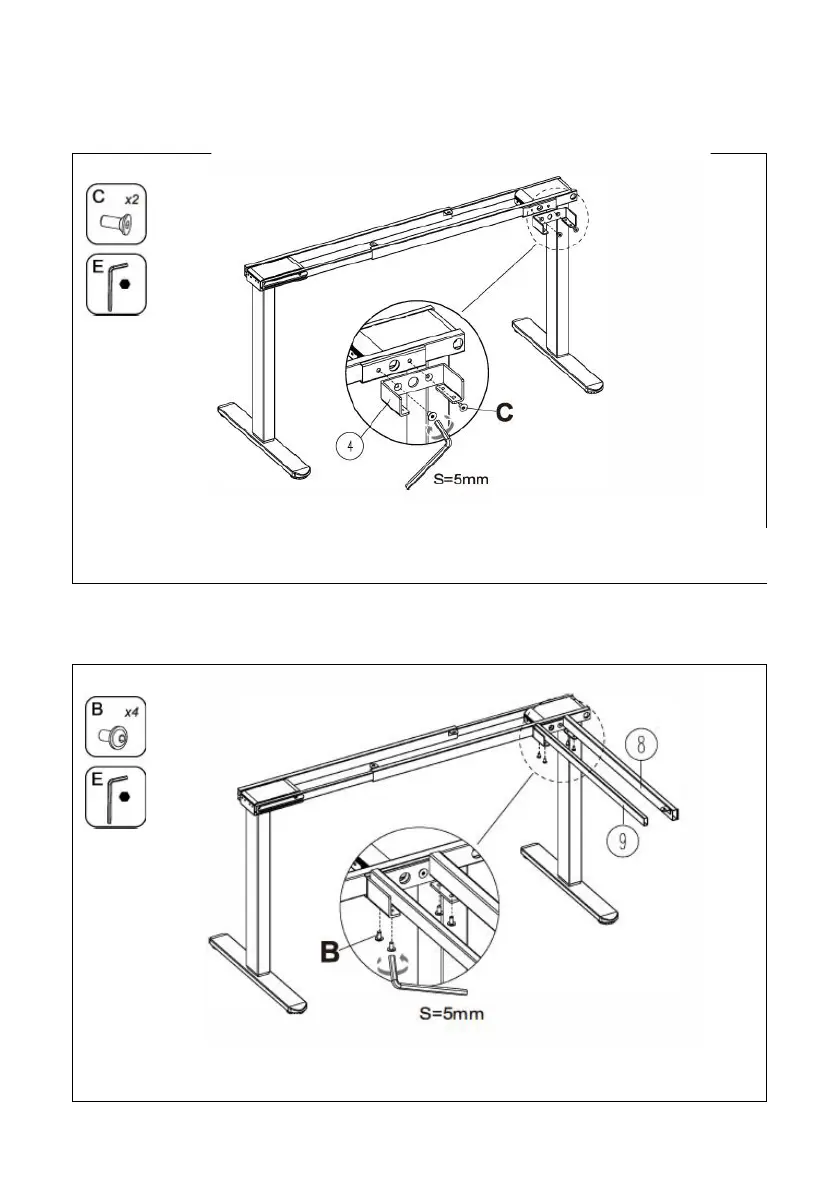

Step 4: Install the connection arm.
Connect the connection arm (4) to the connection rod (7) with screws (C)
and tighten them with the allen key (E).
Step 5:
Install the connection rod
Connect connection rods (8) and (9) to the connection arm (4) with screws
(B), and tighten them with the allen key (E).
