1. OVERVIEW
1.1 Package Content
□ Network camera □ Installation Sticker
□ Installation Guide □ RJ45 cable extender adapter
□ Ground Wire
□ CD-ROM disc (including user manuals & CMS software “Video Viewer”)

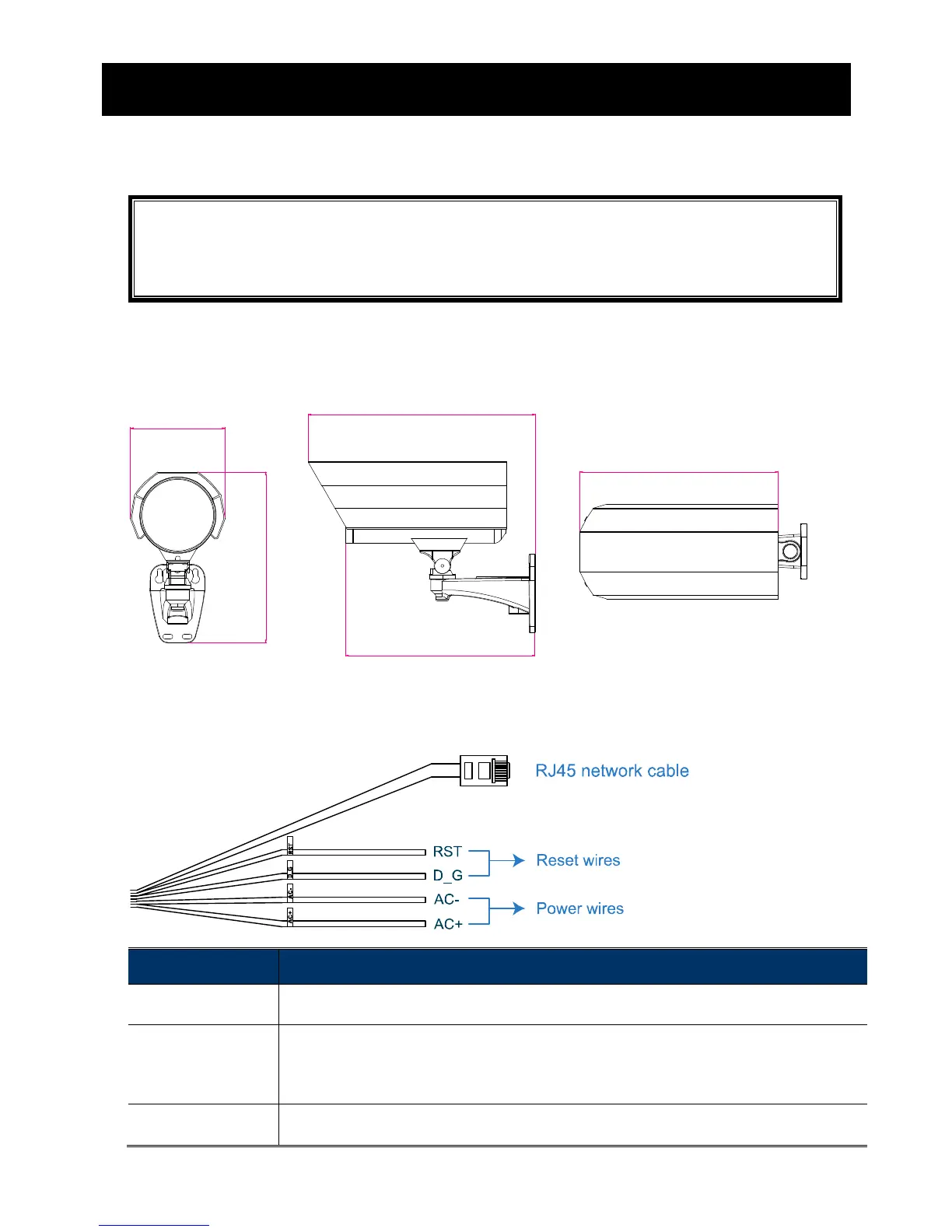

1.2 Dimensions
246.87
282.4
236.03
212.63
117.89
1.2 Cable Overview
CABLE DESCRIPTION
RJ45 network cable Connect it to the supplied RJ45 cable extender adapter for cable extension, and
prepare another RJ45 network cable with suitable length for your connection.
Reset wires Remove the insulating coating of these two wires, and twist them together to reset
default. This will reset all parameters, including the IP address to factory default settings.
Note: Disconnect power before twisting these two wires together, and connect to power
again for reset default. When the reset is done, disconnect these two wires.
Power wires Connect to AC power supply. For details, please refer to “2.2 Connect to power” at page
3.
