8
The UPS is equipped with intelligent slot perfect for either SNMP or Relay card. When
installing either SNMP or Relay card in the UPS, it will provide advanced
communication and monitoring options.
Note: USB port and RS-232 port can't work at the same time.
Note: Using the provide USB cable is required. (RS232 cable is optional.)
Step 4: Turn on the UPS
Press the ON button on the front panel for two seconds to power on the UPS.
Note: The battery charges fully during the first five hours of normal operation. Do not
expect full battery run capability during this initial charge period.

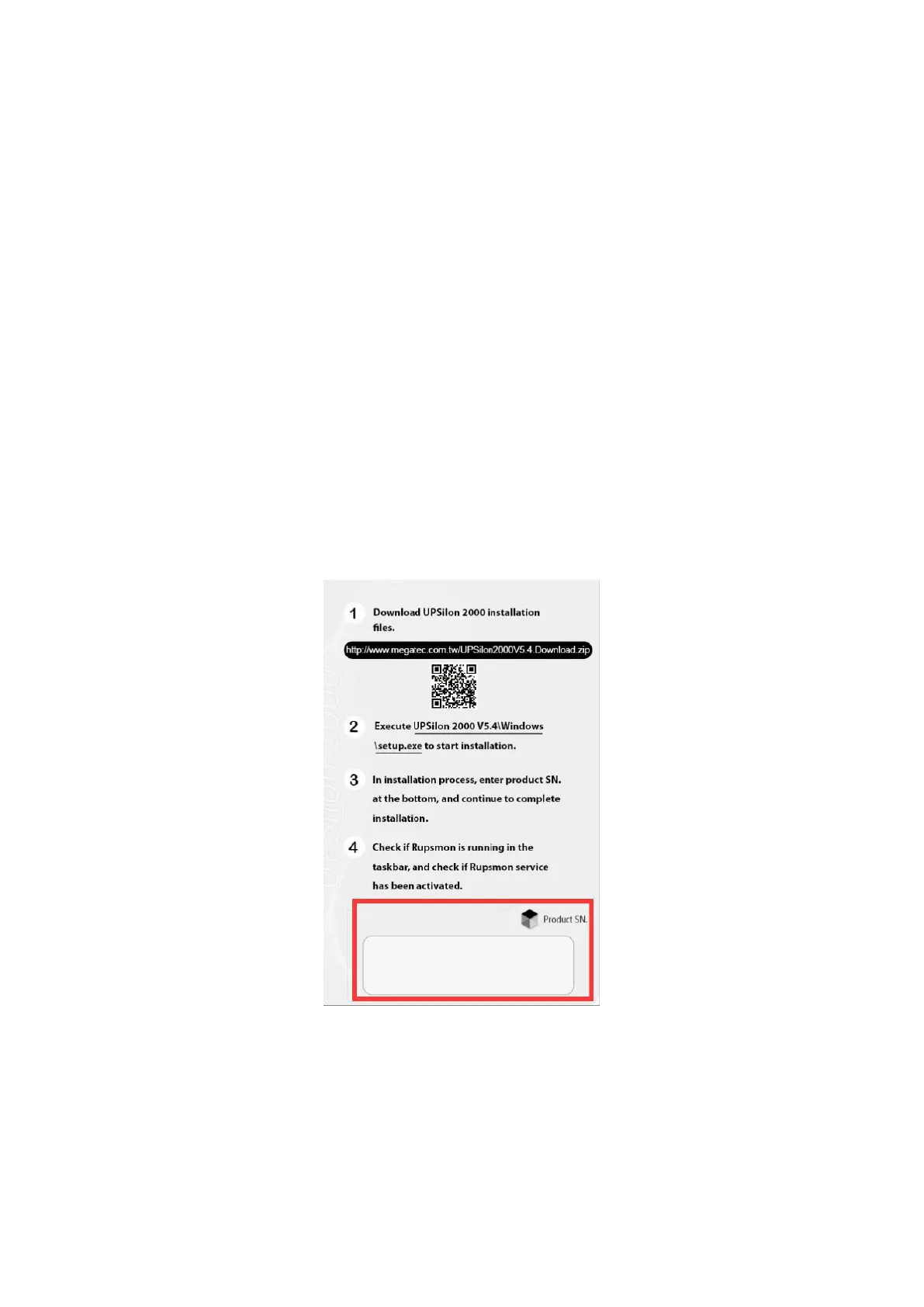

Step 5: Install software
For optimal computer system protection, install UPS monitoring software to fully
configure UPS shutdown. You may insert provided CD into CD-ROM to install the
monitoring software. You may follow the Software License Card instruction to install
the monitoring software.
Note: The software product SN. can be only allowed for one PC installation.
