Digitus DN-7039-B User Manual

4.2 Quick Installation Guide
With a Web-based (Internet Explorer or Netscape
®
Navigator) utility, it is easy to configure
and manage the DN-7039-B 108Mbps Wireless Router. The Web-based utility can be
used on any Windows, Macintosh or UNIX OS with a web browser.

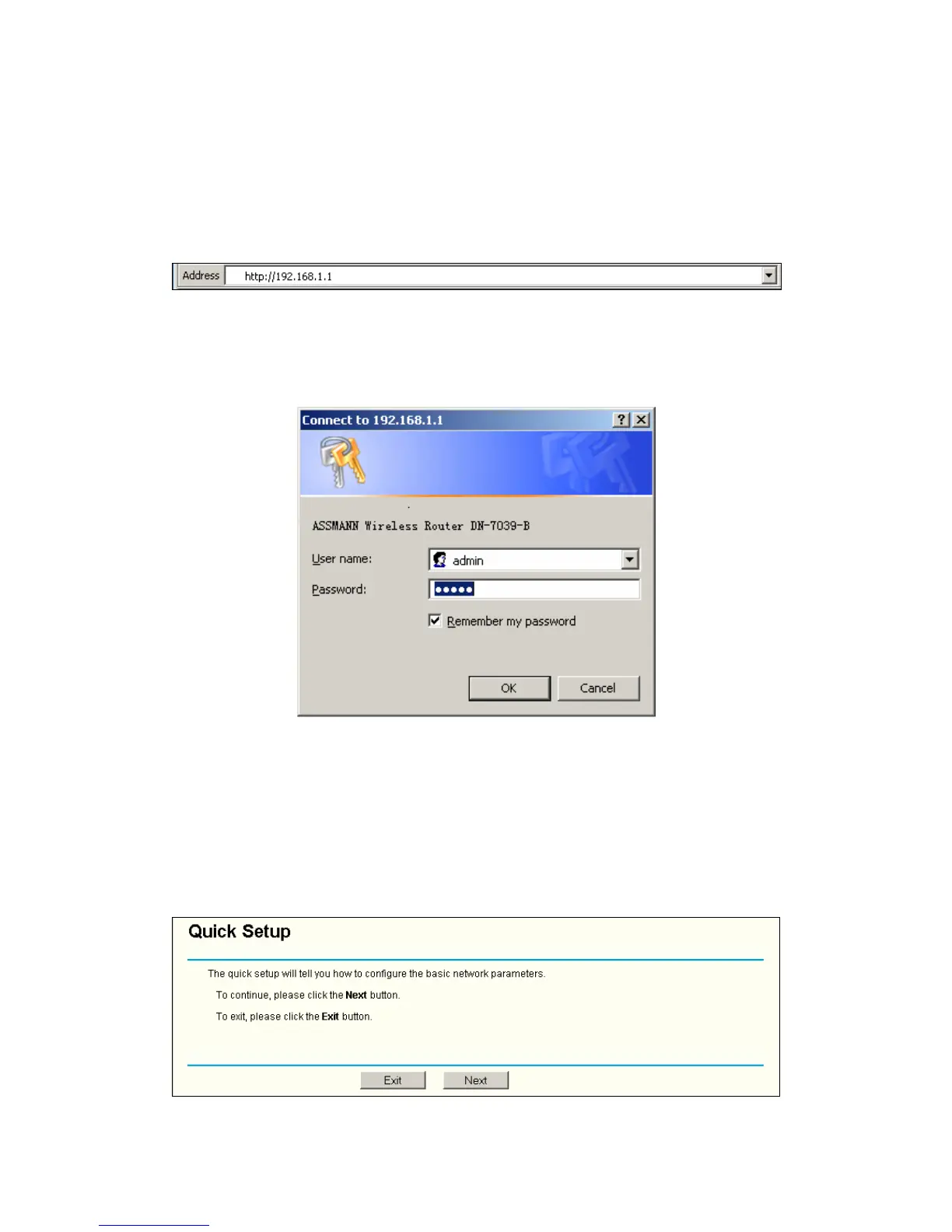

Connect to the router by typing http://192.168.1.1 in the address field of web browser.
Figure 4-3 Login the router
After a moment, a login window will appear similar to that shown in Figure 4-4. Enter
admin for the User Name and Password, both in lower case letters. Then click the OK
button or press the Enter key.
Figure 4-4 Login Windows
Note: If the above screen does not pop-up, it means that your web-browser has been set
to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen
that appears, cancel the Using Proxy checkbox, and click OK to finish it.
If the User Name and Password are correct, you can configure the router using the web
browser. Please click the Quick Setup link on the left of the main menu and the Quick
Setup screen will appear.
Figure 4-5 Quick Setup
