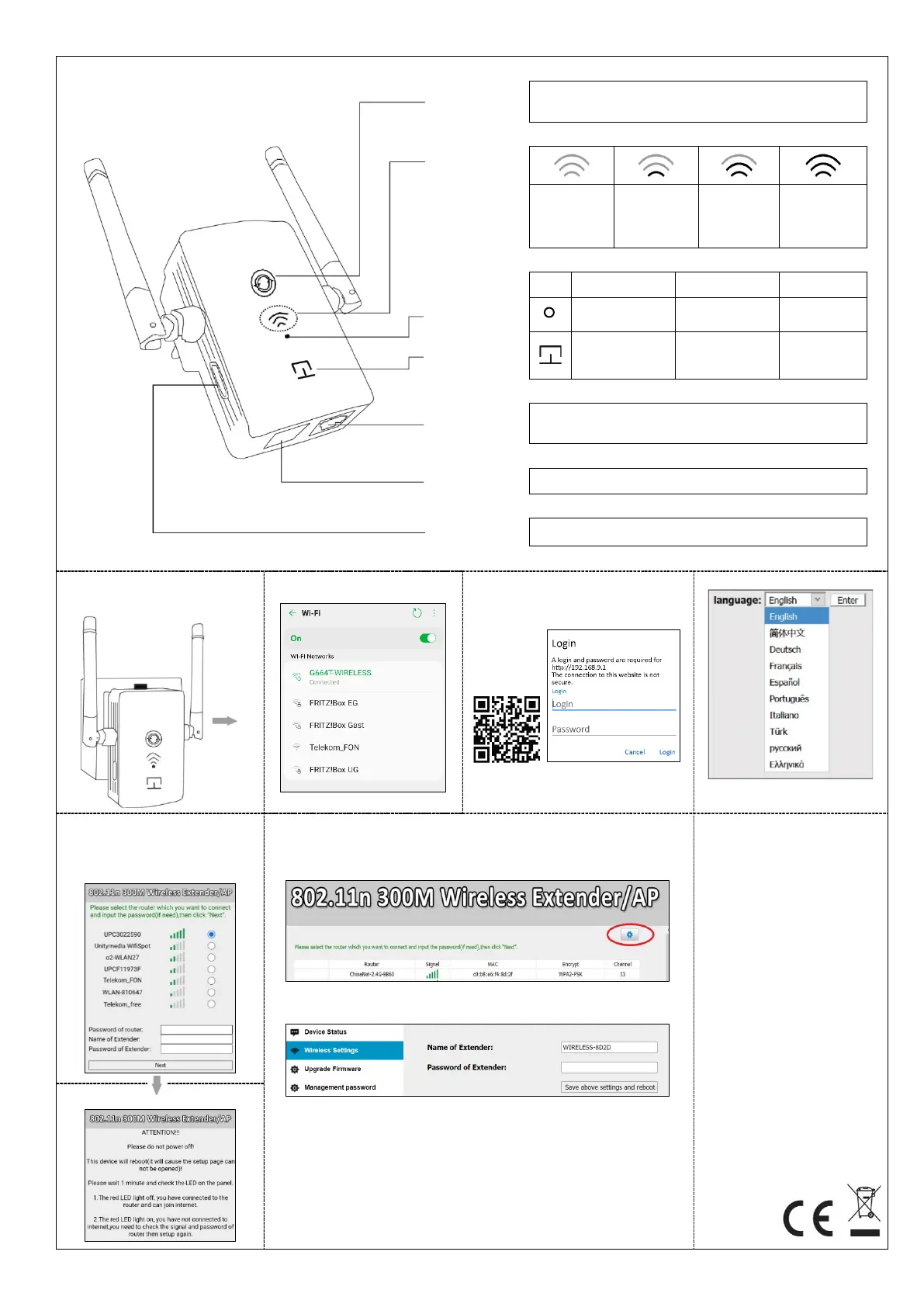

Digitus DN-7072 User Manual

WPS
Press this button and the WPS button of end device within
2 minutes, then connect immediately.
Connection status
No connection:
Need to setup or
move closer to the
router
Weak reception:
Signal strength
below than 25%
(move closer to
the router)
Good reception:
Signal strength
25% to 75%
(Right distance)
Excellent
reception: Signal
strength 75%-100%
(move away to the
router)
ON
OFF
Blink
Device
Device is working
well
Power-on self-test
or device error
WPS in process
Internet
Device can not be
connected with
internet
Device is connected
with internet
Ethernet port
1. For connect to Ethernet device (or)
2. Connect to uplink switch / router to become AP mode
USB port
For power charge DC 5V 500mA
RESET
Press this button for 5 seconds to restore to factory setting
Getting started
1. Plug into the outlet (near the router)
and waiting 40 seconds
2. Join the wifi SSID:
WIRELESS-XXXX by mobile phone.
3. Scan the below QR code or enter 192.168.9.1
at address bar, then input Login: admin and
Password: admin, you will get into the setup
page.
4. Select the language and click “Ent er ”.
5. After entering the setting page, just
select your home wifi router and input
your home wifi router password (change
ssid and password of extender if need),
then click "Next".
AP mode settings (Alternative)
1. Login web UI with web browser by entering http://wireless.repeater or IP 192.168.9.1
with a computer. (Default ID /password: admin)
2. Click on the settings button on the right corner. (This is not supported by smart phone)
3. Click on Wireless Settings and set up a new ID and password (8 digits)
4. Press „Save above settings and reboot“
5. Connect network uplink and wait for Internet LED red light off.
Technical Description
Frequency Range: 2412 to 2472 MHz
Transmission Power: < 20 dBm
Hardware Version: V1.2
Software Version: V3.4.11
Frequently asked and answers
How do enter setup page again?
You can enter the setting page at
anytime. (In case you can't enter, have
other methods: Re-plug the device and
power it, on, use your mobile phone to
connect SSID (WIRELESS-XXXX) and none
password. Then input
http://wireless.repeater to enter into
setup page, input username: admin and
password: admin.
How do change SSID, password?
After entering the setting page, you can
modify any SSID and password you want
in the text box. Please click "Save above
setting and reboot" after you complete
the modification.
How do go back to factory setting?
Please hold the Reset Button for
5 seconds to reset the device.
Hereby Assmann Electronic GmbH, declares that the
Declaration of Conformity is part of the shipping content.
If the Declaration of Conformity is missing, you can
request it by post under the below mentioned
manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
6. Now you can join it to enjoy the internet.
