8
automatically initializes. If all port indicators are on and off, the
system is successfully reset. The power LED indicator is steady
on.
Note: Please confirm the voltage is correct before power on,
otherwise the switch will be damaged.
(The power input is: 100V-240Vac, 50/60Hz.)
7. Console Port Interface
The smart switch has a monitor port (Console port). Rate 1200bps-
115200bps, standard RJ45 plug.

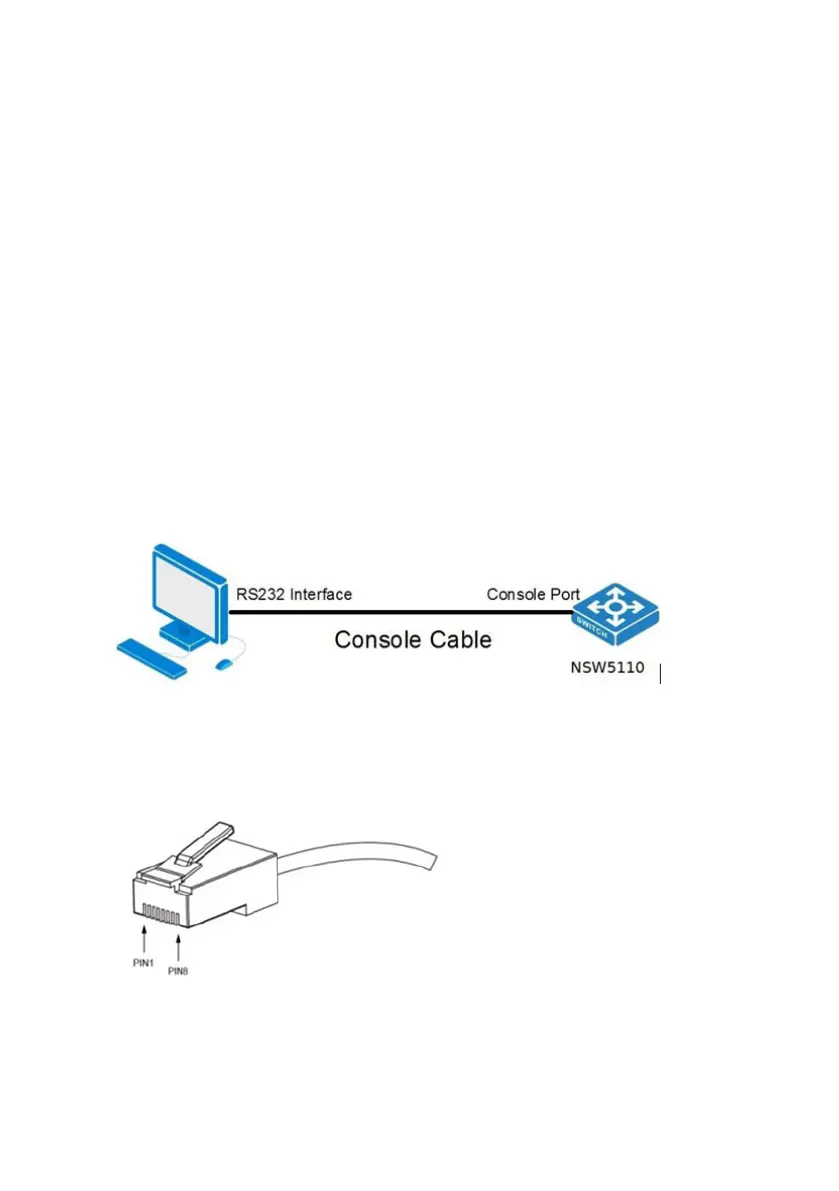

Use a dedicated monitoring cable to lead the port to the PC serial port
connection, as follows:
The RJ45 connector used by the Console port is shown in the
figure below, and the RJ45 plug corresponds to the RJ45 socket,
from left to right numbered from 1 to 8.
This cable is used to connect the console port of the switch to
the external monitoring terminal. One end of the RJ45 eight-pin
To Next Page
