6. Overview

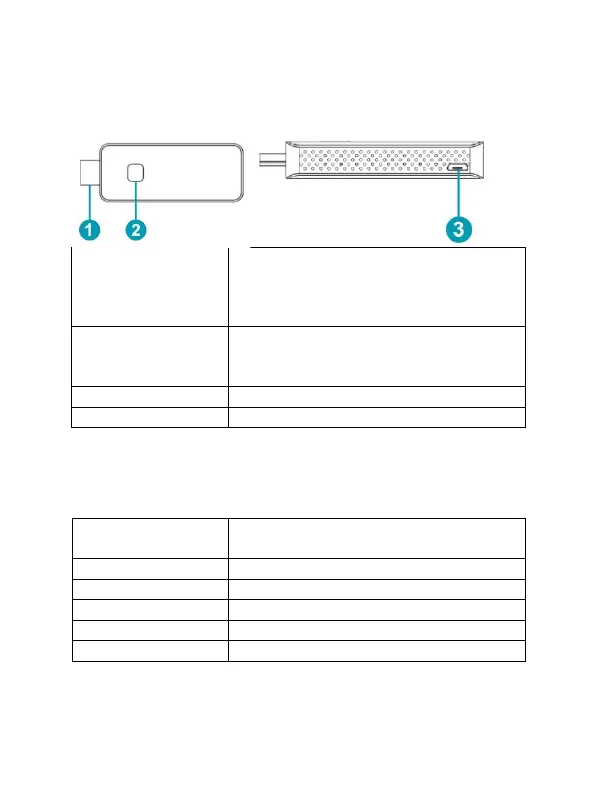

6.1 Transmitter Unit
1. HDMI in
Connect source devices, like with a
computer or other devices with HDMI,
the HDMI in also supports 5V power if the
source devices has HDMI with a 5V output
2. Button
Short press: start to cast
Long press: long press up to 10 seconds
for factory reset
2. LED
To display different statue
3. Micro USB
For power supply
Remark: if the source device has a HDMI with 5V/0,5A power output,
then there is no need to connect an USB cable for power.
LED indicator of the
Transmitter Unit
Description
Static red
Transmitter Unit system is booting on
Flashing red
Transmitter is searching for Receiver
Flashing blue
Waiting for connection
Static blue
Connected and started to present
Purple
No HDMI in
