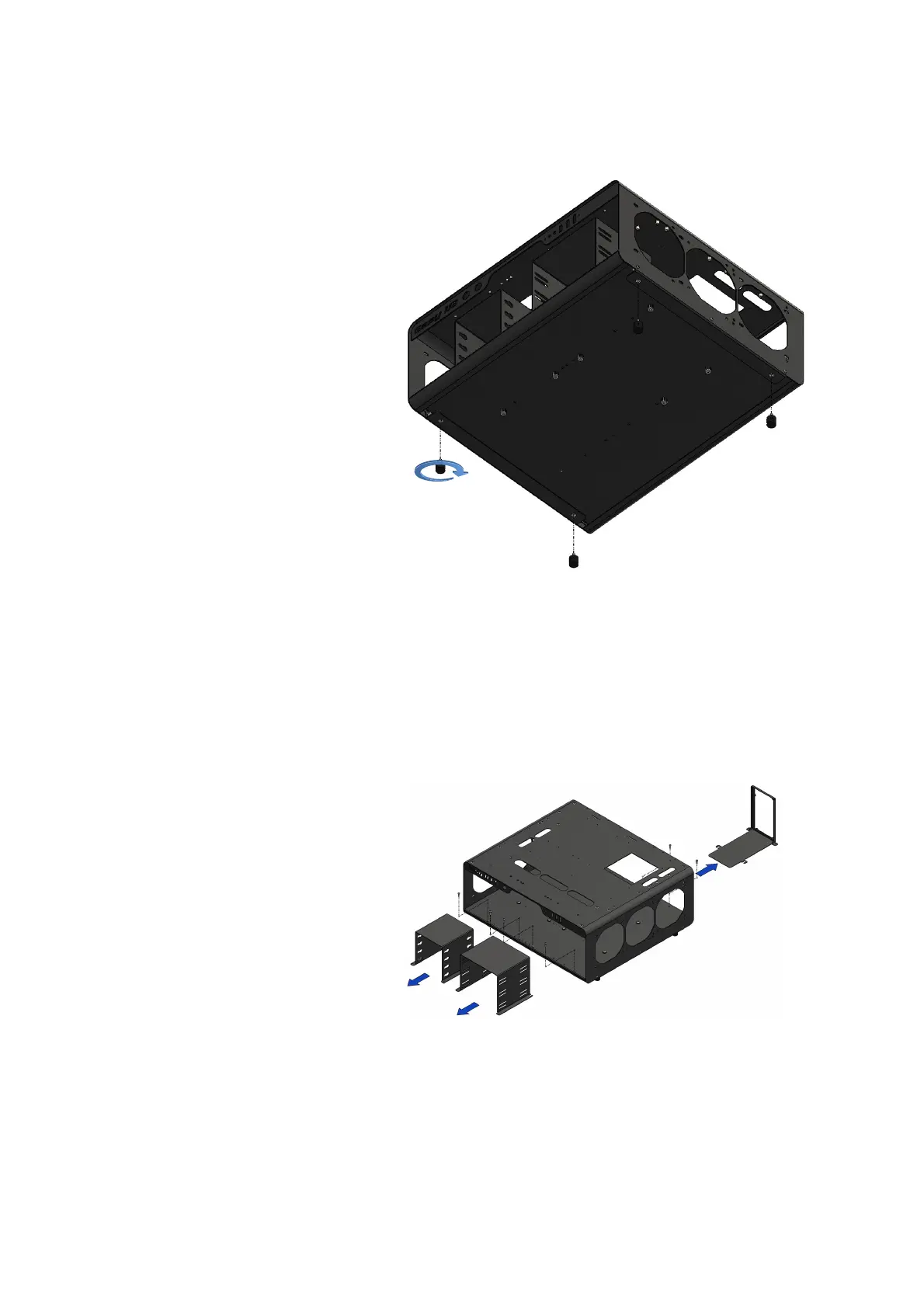

ASSEMBLY DimasTech Easy V.3.0 – STEP-1
- Assemble No.4 VC067_rubber-
feet_M4 (10) into the dedicated
M4 threaded inserts, located at
the base of the
DIMAS_400_C_RF-RB_V.3.0 (1)
body, as shown in the figure
beside
ASSEMBLY DimasTech Easy V.3.0 – STEP-2
- Unscrew the No.6 screws
VC048_M3x10 housed both in
the front part of the Dimastech
Easy V.3.0 and in the back one
and extract the three
preassembled components
BT148 (3), BT149 (4) and BT051-
2013 (5), as shown in the figure
beside
Note: The number indicated in the brackets indicates the corresponding
identification in the table on the page No.2
