ASSEMBLY DimasTech Easy V.3.0 – STEP-3

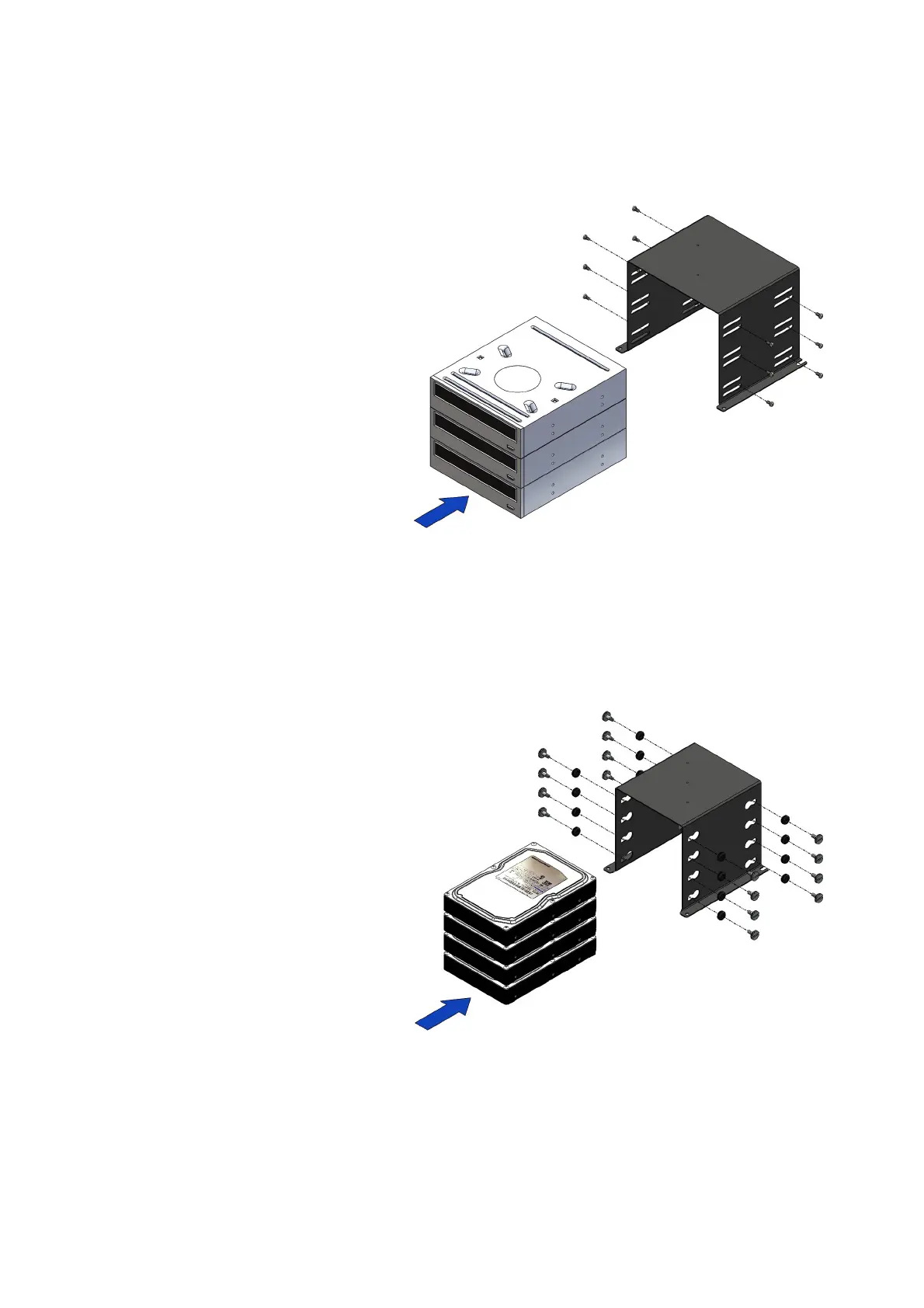

- The component BT148 (3) has
the possibility to house inside
No.3 optical readers (items not
included), the image has the sole
purpose of illustrating the possible
positions of the parts.
- Align the side holes of the optical
reader with the slots of the
component BT148 (3) and fasten
with No.4 screws VC049_M3x6
(20) for each optical reader, as
shown in the figure beside
ASSEMBLY DimasTech Easy V.3.0 – STEP-4
- The component BT149 (4) has
the possibility to house inside No.4
hard-disks (items not included),
the image has the sole purpose of
illustrating the possible positions
of the parts.
- Insert No.16 VC019 (16) into the
appropriate shaped slots
- Align the side holes of the hard
disk with the holes of VC019 (16)
and fasten with No.4 screws
VC014_6-32 (17) for each hard
disk, as shown in the figure beside.
Note: The number indicated in the brackets indicates the corresponding
identification in the table on the page No.2
