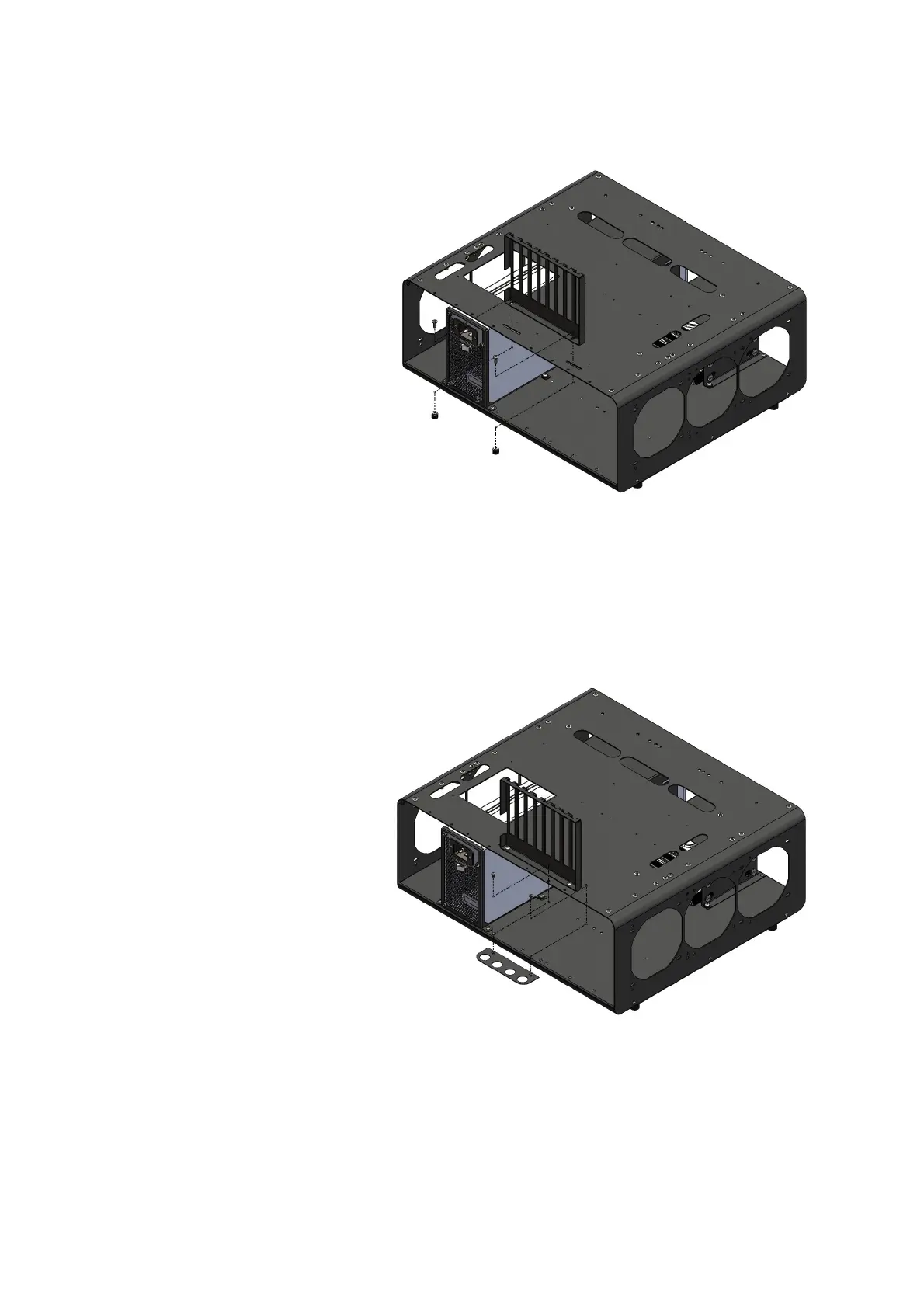

ASSEMBLY DimasTech Easy V.3.0 – STEP-7
- Align the slots at the base of
the BT045-2013 component (6)
with the slots at the back of the
Dimastech Easy V.3.0 and fasten
with No.2 screws VC047_M4x10
(21) plus No.2 knurled nuts
VC024_M4 (18), as shown in the
figure beside.
ASSEMBLY DimasTech Easy V.3.0 – STEP-8
- Align the M3_ inserts of the
component BT153 (7) with the
holes in the back part of the
Dimastech Easy V.3.0 and
fasten with No.2 screws
VC049_M3x6 (20), as shown in
the figure beside.
Note: The number indicated in the brackets indicates the corresponding
identification in the table on the page No.2
