ASSEMBLY DimasTech Mini V.2.0 - FLEX-FAN

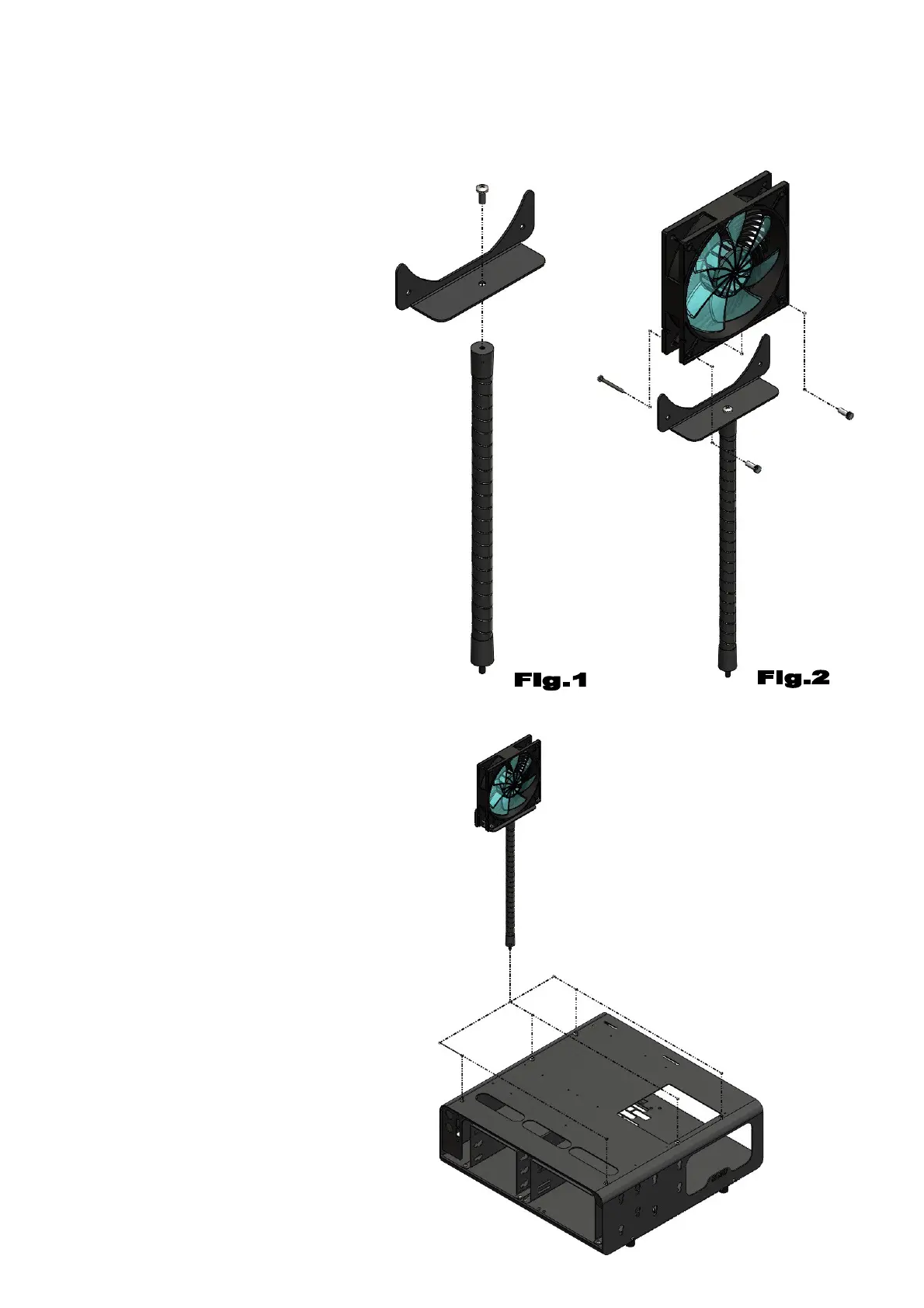

- Align VC058 (7) to BT2501 (6)
and fasten with No.1 screw
VC047_M4x10 (20), as shown
in Figure 1
- Align FAN 120 (item not
included) to BT2501 (6) on
vertical holes and fasten with
No.2 screws VC050_M2,5x25
(21) plus No.2 knurled nuts
VC034_M2,5 (22), as shown in
figure 2
- It is possible to mount the FLEX-
FAN in any of the 6 holes with M4
threaded inserts at your disposal
according to the motherboard you
have purchased or the preferred
choice, as shown in the figure
beside. The image has the sole
purpose of illustrating the possible
positions of the parts.
Note: The number indicated in the
brackets indicates the
corresponding identification in the
table on the page No.2
