Dimplex B075E Installation And Operating Instructions

This guide is for quick reference only
To view the full manual, please scan this QR code using your
Smartphone or visit the product page at www.dimplex.co.uk
93mm
67mm
Energy Related Product Directive
Type of heat output/ room temperature control
With electronic room temperature control Yes
Electronic room temperature control plus week timer
Yes
With open window detection Yes
With adaptive start control Yes
Model Identier(s):
B075E C100E D150E E200E
Nominal heat
output
Pnom
0.75 kW 1 kW 1.25 kW 1.5 kW
Height (mm)
659 659 659 659
Width (mm)
570 840 1105 1373
Depth (mm)
50 50 50 50
Minimum heat
output (indicative)
Pmin
0.75 kW 1.00 kW 1.25 kW 1.5 kW
Maximum continuous
heat output
Pmax,c
0.75 kW 1.00 kW 1.25 kW 1.5 kW
Auxiliary electricity Consumption
At nominal heat output elmax
0.00 0.00 0.00 0.00
At minimum heat output elmin
0.00 0.00 0.00 0.00
In standby mode elSB
<0.0005 <0.0005 <0.0005 <0.0005
With open window detection
Yes
With adaptive start control
Yes
This product complies with Lot20 of the Energy Eciency Directive (2015/1188)
General Information
Please read the instructions closely before rst using the product.
This heater may be used wall-mounted or freestanding. The necessary wall mounting brackets
are provided with the product as a standard. The feet screws can be bought separately as an
accessory.
It should only be operated when in the upright position as shown - see Fig.1a and Fig.1b. All
models are IP20 rated. Before connecting the heater check that the supply voltage is the same
as that stated on the heater.

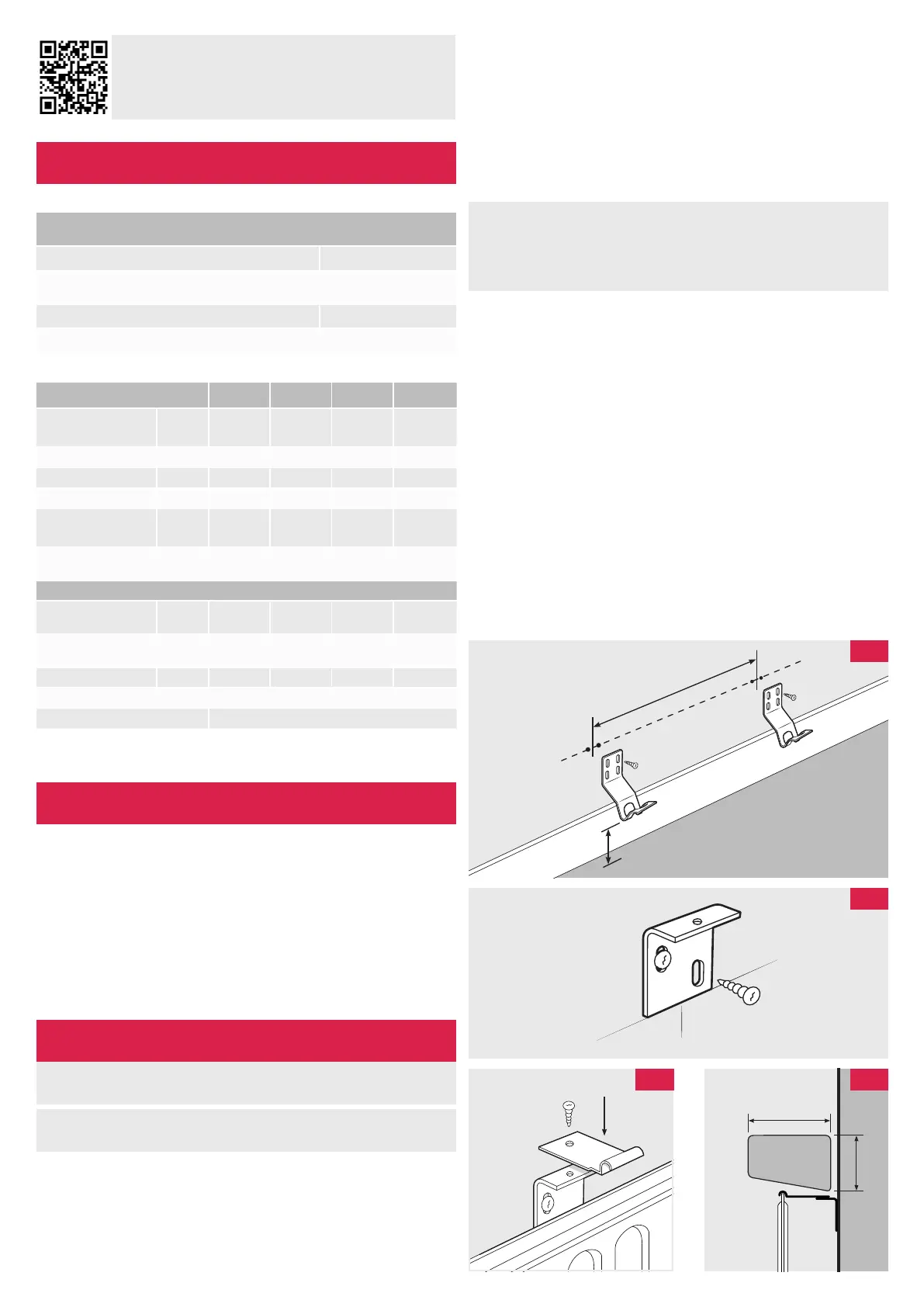

Wall Mounting
IMPORTANT - The radiator must only be mounted using the kit supplied
WARNING - This product is heavy and care should be taken in installation
Select a suitable position on a wall, near to a mains power outlet. The radiator
should not be mounted closer than 75mm from the oor - see Fig. 2 (to enable
cleaning), or adjacent side walls. Ensure at least 305mm clear space between
the radiator and any overhanging shelf. It should not be mounted closer than 1
metre from the ceiling.
NOTE - The bottom of the radiator must not be less than 75mm from the oor.
To achieve this the top edge of the bottom brackets must be at least 160mm
from the oor - see Fig 2. On this line, mark o the xing centres according to
model - see `C’ in the table in Fig. 2 and Fig.3
Place the bottom brackets centrally over these centres with the top row of holes
on the line, and mark the xing hole positions – see Fig. 3.
STEP 3: Drill the holes and t wall plugs. Screw the bottom brackets in position
– see Fig. 3.
STEP 4: Measure dimension D in Fig. 2 according to model, from the top of the bottom brackets
and draw a horizontal line. Mark o the xing centres for the top brackets in line with
the bottom brackets. Place each top bracket on the line and mark the xing holes – see
Fig. 4. Drill and plug the wall and x the top brackets in place.
STEP 5: Place the radiator on the bottom brackets, then t each securing bracket to the top of
the radiator and secure it with the self-tapping screw provided – see Fig. 5.
Check that the radiator is securely xed to the wall.
75mm
(min)
‘C’
‘Y’
75
mm
(min)
Fig. 2
Fig. 3
Fig. 4 Fig. 5
STEP 1: Check that you have all the necessary components:
(a) 2 x Bottom wall brackets
(b) 2 x Top wall brackets
(c) 2 x Radiator securing brackets
(d) 2 x Self-tapping screws.
STEP 2: Using a straight edge, draw a horizontal line (see ‘Y’ in Fig. 2) for the bottom brackets
at the required mounting height from the oor.
