Dimplex DTK Series User Manual

In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice.
© 2013 Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
2
CAUTION:This thermostat must be properly installed
before it is used.
The built-in thermostat senses the temperature of the air at
the baseboard and must be set by trial to provide optimum
room comfort. When rst operating baseboard heater, turn
thermostat knob clockwise to last stop. Within a short period
of time the room will be at desired temperature. Turn the
thermostat knob counter clockwise until baseboard goes off
(you will hear a slight “click” ). Keep thermostat knob at that
setting and temperature will be automatically maintained.
Operation
CAUTION: Before removing the front cover for cleaning,
make certain the power has been turned off at the circuit
breaker panel.
CAUTION: Allow adequate time for the element and body
casing to cool before attempting to work on the heater.
!
NOTE:See Heater Manual for Cleaning Instructions.
WARNING: The user can perform cleaning ONLY, all
other servicing should be performed by qualied service
personnel.
Maintenance
provided.
6. Remove all residual materials (knockouts or any other
construction material).
7. Check that all electrical connections are tight and place
all wiring inside the terminal box.
8. Replace the terminal box cover and front panel or the
rear cable clamp. Care must be taken that no wires are
pinched during installation.
9. Install knob (Figure 7) or plug
button (Tamper proof version).
10. Follow the baseboard installation
instructions to nish heater
installation.
!
IMPORTANT: DO NOT BYPASS OR
ELIMINATE THERMAL CUTOUT FROM CIRCUIT.
HANDLE THERMOSTAT WITH CARE.

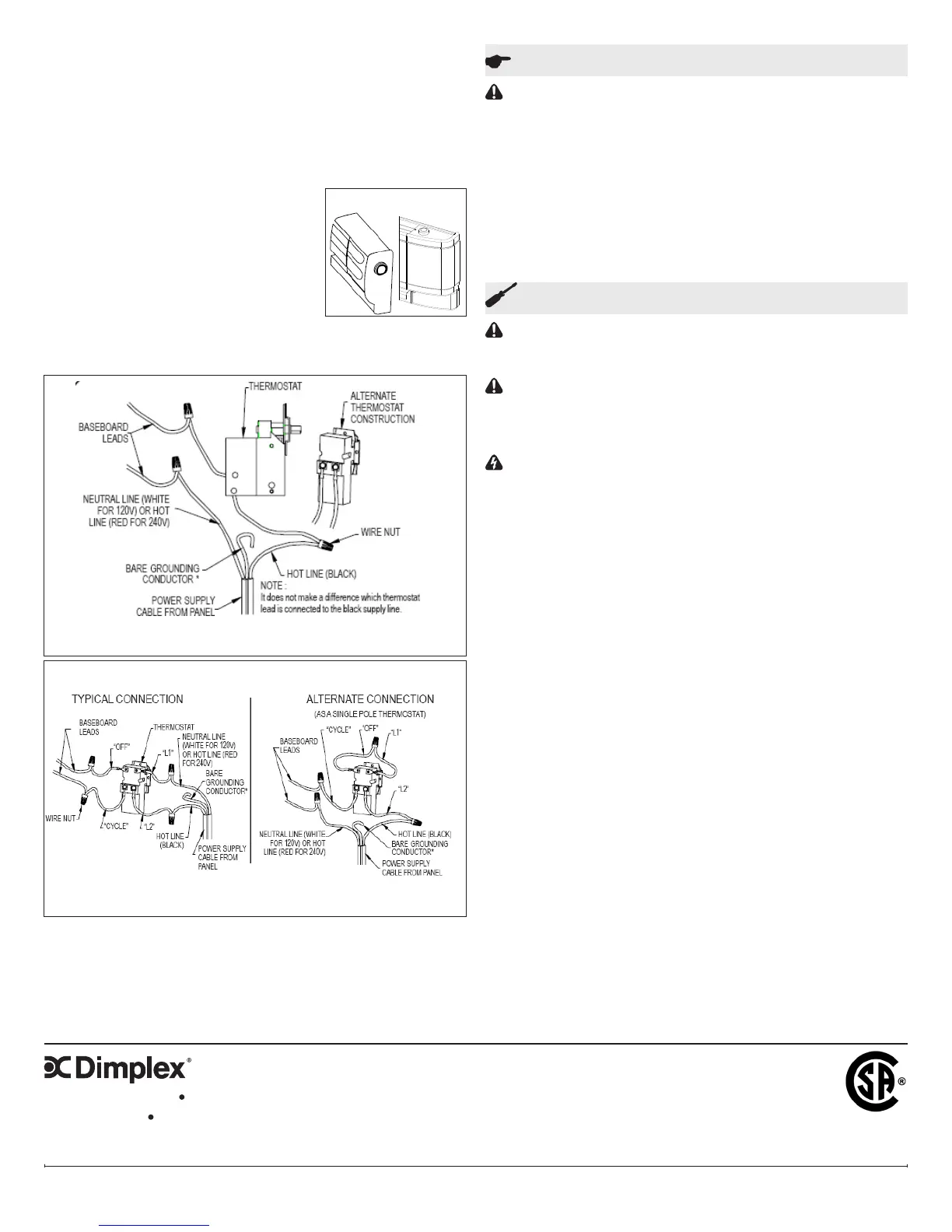

Figure 5 - Single Pole
Grounding conductor must be connected to the green
ground screw or wire on the baseboard
Figure 6 - Double Pole
Figure 7
Grounding conductor must be connected to the green
ground screw or wire on the baseboard
