Dimplex DXDB20E - Control Panel; Control Panel Layout and Functions

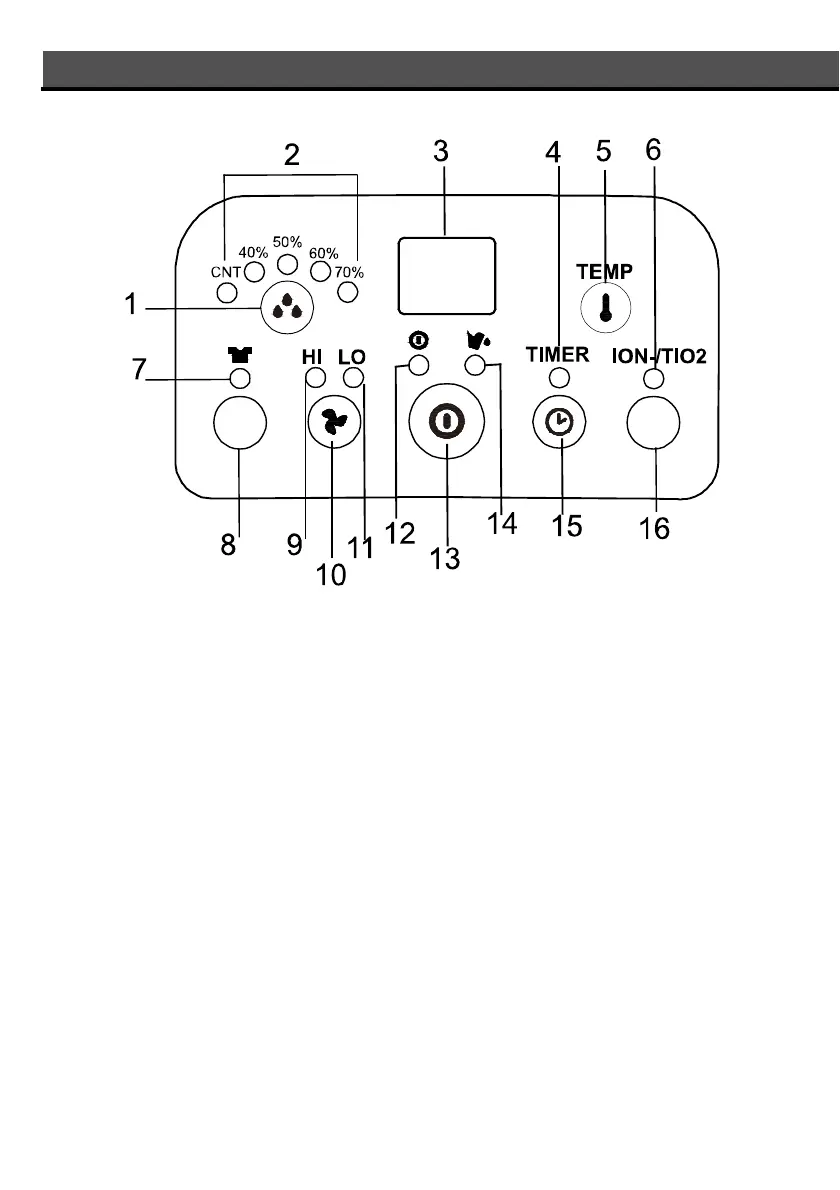

Control Panel
1. Humidity setting button
2. Working mode indicator
(continuous working, humidity
40%, 50%, 60%, 70%)
3. Humidity/Temperature display
4. Timer operation indicator
5. Temperature display button
6. Ionizer or TiO2 indicator (these
are optional function depending
on the model you purchased)
7. DRYER indicator
8. DRYER button
9. High ventilation indicator
10. Speed/Ventilation button
11. Low ventilation indicator
12. Power indicator
13. ON/OFF (power) button
14. “Full Water” indicator
15. TIMER button
16. Ionizer or TiO2 button (these are
optional function depending on the
model you purchased)
5
