Black - Element Return Wire
Black - Element Wire
Black - Control Wire
Blue - Control Wire
Blue control wire and black element return wire are connected.
Connect L2/Neutral to these during installation.
Black wire from control.
Connect L1 to this during installation.
Yellow control wire and black element wire are connected.
Do not change during installation.
Control Board
LPC
Thermal Cutoff
Ground
L2 / Neutral
L1
Yellow - Control Wire
Operation
3. Furniture: Place furniture no closer than 3” (7.62 cm) from
the front of the Linear Proportional Convector. (Figure 1D)
4. Overhanging Solid Objects (Except Plastic): Position Lin-
ear Convector so there is at least 14” (35.6 cm) between the
top of the heater and any solid object that obstructs or redi-
rects the vertical air ow out of the top of the unit. (Figure 1C)
5. Overhanging Plastic Objects: All Plastic items that can-
not withstand extended exposure to temperatures 60º C or
higher should be kept a minimum of 20” (50.8cm) above the
unit. (Figure 1C))
!
NOTE: Ensure that when 2 Linear Proportional Convectors
are installed near the same corner they are both a minimum
of 6” from the corner.
Installation
All Linear Proportional Convectors must be connected from
the right side of the heater.
!
NOTE: The left hand end of the enclosure can be used as
a junction box and the space under the heater can be used as
a wireway.
CAUTION: Disconnect power supply before installation to
prevent electric shock.
1. Unpack and place Linear Proportional Convector on oor
face up, use packaging to protect oor if required. Remove
front covers.
!
NOTE: Remove the center cover, by releasing the top
rst.
!
NOTE: Heater ns can be easily bent. For optimal per-
formance ensure that they remain vertical.
2. Orient unit in desired location and mark pilot holes - top and
bottom at both ends and at least one set in middle.
3. Wire unit as per diagrams (below) and National and Local
Electrical Codes.
CAUTION: Connect heaters to a branch circuit used only
for permanently installed heater and protected by over cur-
rent devices rated or set at no more than 30 amperes. The
total connected load should not be more than 80% of the
rating of the over current devices. It may cause a re haz-
ard if not installed and maintained in accordance with these
instructions.
4. Position LPC, pushing cable back into wall (or conduit), run
screws through pre-selected mounting holes and spacers
(if applicable), using appropriate wall anchors, if necessary.
!
NOTE: Screw should be backed off 1/2 turn from snug
1. This linear convector must be properly installed before it is
used.
2. Prior to energizing, remove all construction dirt (plaster,
sawdust, etc.) from interior and exterior of linear convector.
Dimplex linear convectors are designed and tested for safe
and trouble-free operation. All Dimplex linear convectors are
protected against overheating by a built-in thermal cutout.
Free airow throughout the linear convector is very important
for the most efcient operation of the linear convector. Re-
stricted airow may cause the thermal overload protector to
cycle the linear convector “ON and OFF”. A cycling linear con-
vector will not supply sufcient heat to the room.
CAUTION: Avoid direct contact of paper, fabric, or furniture
with linear convector, to prevent a possible re.
When power is rst supplied to the LPC the Setpoint Tempera-
ture will ash in the temperature display area. At any time ei-
ther the + or - button can be pressed to have the temperature
setpoint displayed again.
A. Setting/Temperature Display
The LPC is designed to control the temperature of a room any-
where from 32-86°F (0-30°C). Pressing the + or - will increase
or decrease the desired temperature for the room to be heated
by 0.5° (in either °C or °F).
After 5 seconds the Setpoint Temperature will switch to dis-
play the intake temperature of the room.
!
NOTE: Pressing the + and - at the same time will toggle
between °C and °F.
2 www.dimplex.com

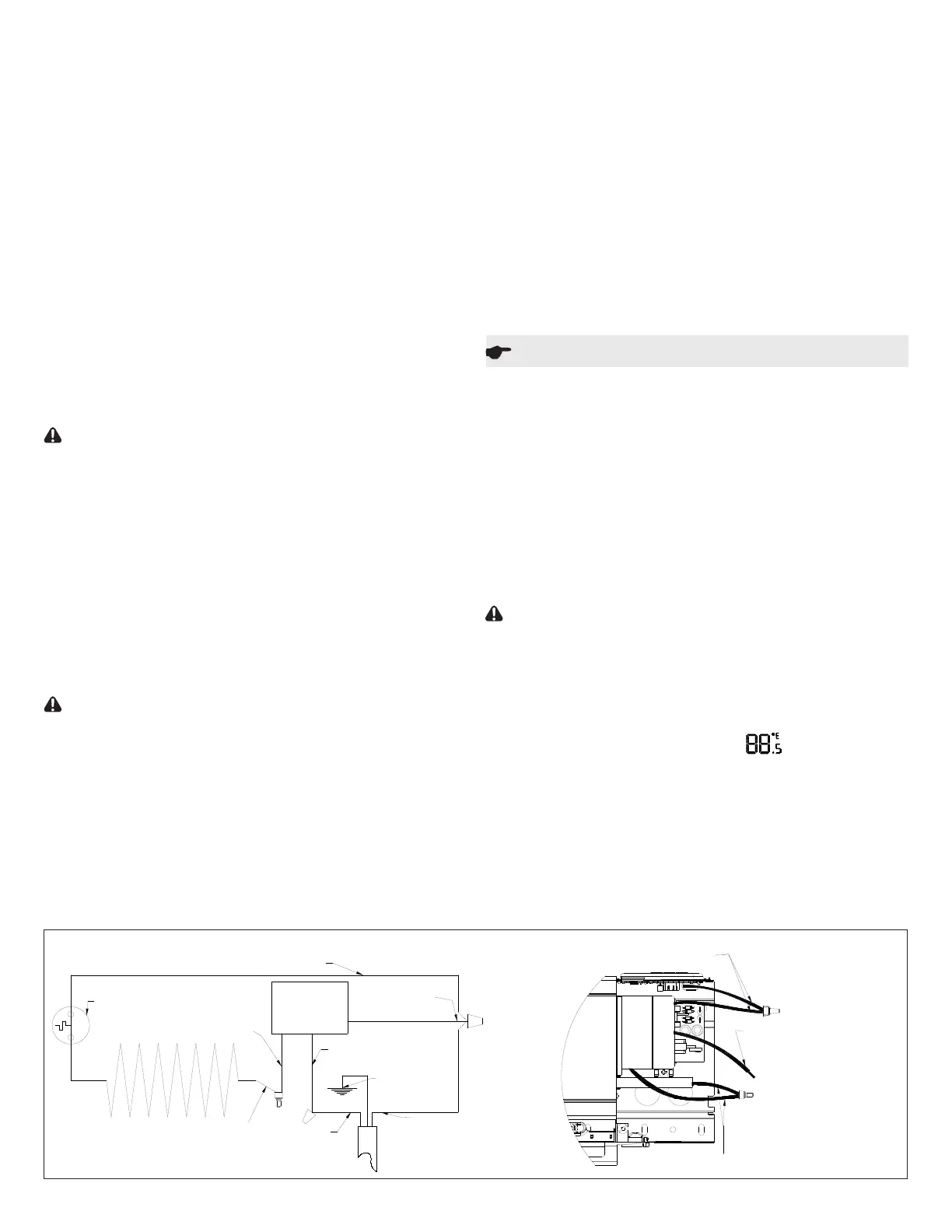

Wiring Diagram
position to allow free expansion and contraction of housing
and to ensure quiet operation.
5. Replace covers on unit.
!
NOTE: Install the center cover rst, by installing the top
rst, then the bottom.
Usage of Multiple Linear Proportional Convectors
Multiple Linear Proportional Convectors can be wired in paral-
lel on a single circuit. To use/control multiple Linear Propor-
tional Convectors from a single source, a CONNEX
TM
control-
ler can be used. By synchronizing one CONNEX
TM
controller
to multiple LPC’s, the controller can control all of the heaters
from one location. Each component must be within 15m (45ft)
of any other component in the system for the entire system to
operate.
