Dimplex LPC Series User Manual

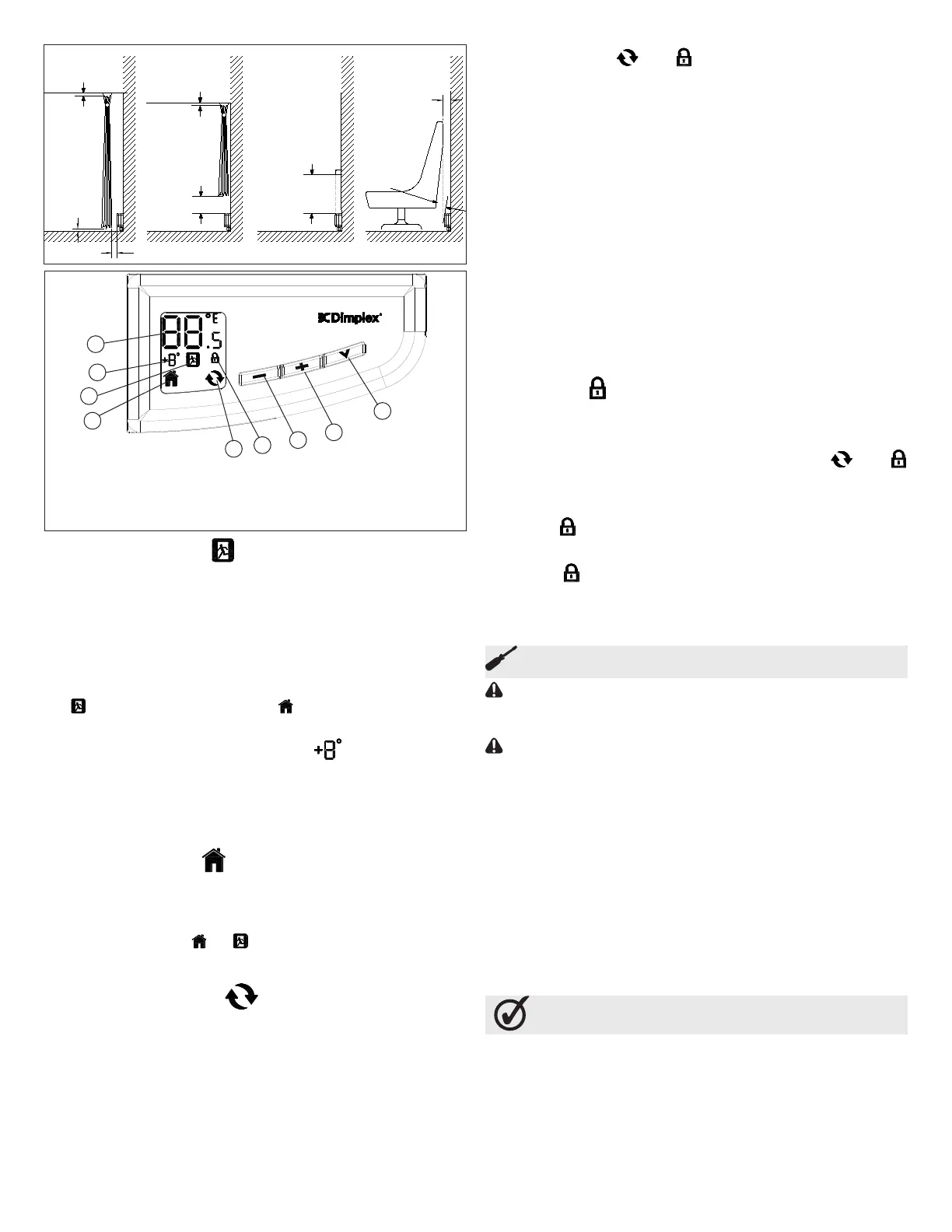

Figure 2
B
E
F
G
H
I
A - Setting/Temperature Display
B - Economy Setting Icon
C - Set Back Temperature Setting
D - Comfort Setting Icon
E - Synchronized Icon
F - Lock Icon
G - Decrease Button
H - Increase Button
I - Menu Button
A
C
D
B. Economy Setting
The Economy Setting can be used to change the Setpoint
Temperature for a variable period of time. By pressing the V
the Economy Setting will be enabled - signied by the icon
ashing. After the Set Back Temperature has been set, the
icon will become solid after three seconds and the Set Back
Temperature will be enabled.
To return back to the Comfort Setting press the V button and
the icon will disappear and the icon will appear.
C. Set Back Temperature Setting
The Set Back Temperature Setting is used during periods
when the Economy setting feature is active. This tempera-
ture adjustment can be set by pressing the V followed by the
+ or -.
D. Comfort Setting
The Comfort Setting icon will be displayed when the heater
is in normal operation based on the Setpoint Temperature for
the room.
!
NOTE: Either the or icon will always be visible, de-
pendent on the setting being used.
E. Synchronized Icon
The LPC features CONNEX
TM
, a wireless technology that
works with Dimplex single and multi-zone CONNEX
TM
control-
lers to provide simple whole home connectivity and comfort.
CONNEX
TM
controllers are available to control one or multiple
LPC’s or PCH’s within a 50’ (15 m) radius. In order for the
controller to have this function the LPC and the controller will
need to be synchronized. To do this:
1. On the LPC heater press and hold the V button for 3 sec-
Figure 1
A B C D
Min.
1.5" (3.8 cm)
Min.
1.5" (3.8 cm)
Min.
1.5" (3.8cm)
Min.
3" (7.6 cm)
Min.
3" (7.6 cm)
Min.
3" (7.6 cm)
Min.
6" (15.3 cm)
Min.
See Item 4 & 5
for Dimension
Maintenance
CAUTION: Before removing the front cover for cleaning,
make certain the power has been turned off at the circuit
breaker panel, to prevent electric shock.
CAUTION: To avoid burns, allow adequate time for the ele-
ment and body casing to cool before attempting to work on
the linear convector.
The LPC series contain no moving parts. Since the appliance
contains no moving parts, little maintenance is required be-
yond vacuum cleaning. It is however essential that the linear
convector is not operated with an accumulation of dust or dirt
on the element, as this can cause a build up of heat and even-
tual damage. For this reason the linear convector must be in-
spected regularly, depending upon conditions and at least at
yearly intervals. Once cleaning is complete replace the front
cover and restore power.
!
NOTE: The user can perform cleaning ONLY. All other ser-
vicing should be performed by qualied service personnel.
onds, both the and icons will begin to ash.
2. Press the - , + and then V, on the LPC heater.
3. Within 10 seconds press any button once on the CON-
NEX
TM
controller.
!
NOTE: There is a 3 second delay between pressing the last
button on the CONNEX
TM
controller and the LPC heater.
!
NOTE: To desynchronize a LPC heater from the synchro-
nized CONNEX
TM
controller, on the LPC heater:
1. Press and hold the V for 3 seconds.
2. Press the V, + and then -.
Nothing needs to be done to the CONNEX
TM
controller.
Dimplex single and multi-zone CONNEX
TM
controllers are sold
separately and are available for purchase from your autho-
rized Dimplex dealer.
To nd your local Dimplex dealer, visit www.dimplex.com.
F. Lock Icon
The Linear Proportional Convector Heater has a Button Lock
feature, to prevent settings from accidentally being changed.
1. Press and hold the V for 3 seconds. Both the and
Icons will begin to ash.
2. To Enable: Within 5 seconds press +, then -, then +, then
-. The icon will now be visible.
To Disable: Within 5 seconds press -, then +, then -, then
+. The icon will not be visible.
!
NOTE: The LPC can be locked in either the Comfort or
Economy Setting. Ensure that the desired icons are present
when locking is complete.
3
The Manufacturer warrants the Linear Proportional Convector
and components of the enclosed product against any defect in
material or workmanship for a period of one year from the date
of purchase, with the exception of the elements which are war-
ranted to be free from defect in material and workmanship for
ten years. In full satisfaction of any claims under this Warranty
the Manufacturer will repair or replace without charge, in its
factory or in the eld as it alone may decide, any parts which
Warranty
