SPECIAL INSTRUCTIONS FOR CONVERSION FROM R10 TO R7 / R8 HEATER
Follow these instructions carefully to ensure the Electricaire units operate safely and reliably.

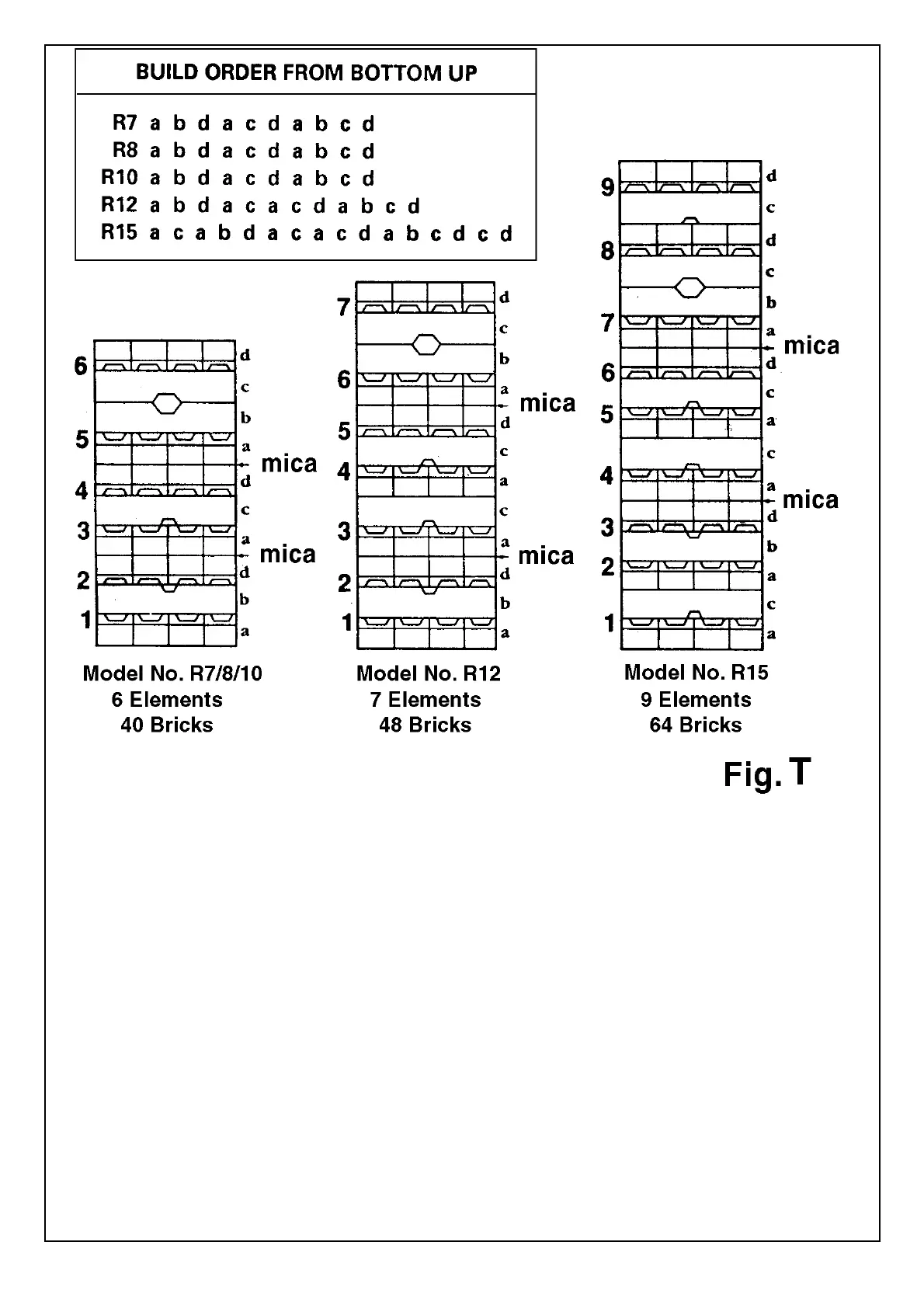

The build of the storage core for models R7, R8 and R10 is identical (see diagram Model No. R7/8/10). Elements must only be fi tted
as indicated below.
MODEL R7
Only four elements must be used for this specifi cation. Install elements in positions 3, 4, 5 and 6 only. See diagram Model No.
R7/8/10.
MODEL R8
Only fi ve elements are to be used for this specifi cation. Fit elements into positions 2, 3, 4, 5 and 6 only. See diagram Model No.
R7/8/10.
MODEL R10
All 6 elements are installed as per diagram Model No. R7/8/10.
Important
Self adhesive rating labels are supplied. Please ensure the correct rating label, identifying the correct model,
is fi tted. The rating label is fi xed to the mesh panel behind the detachable fi lter.
