English Installation

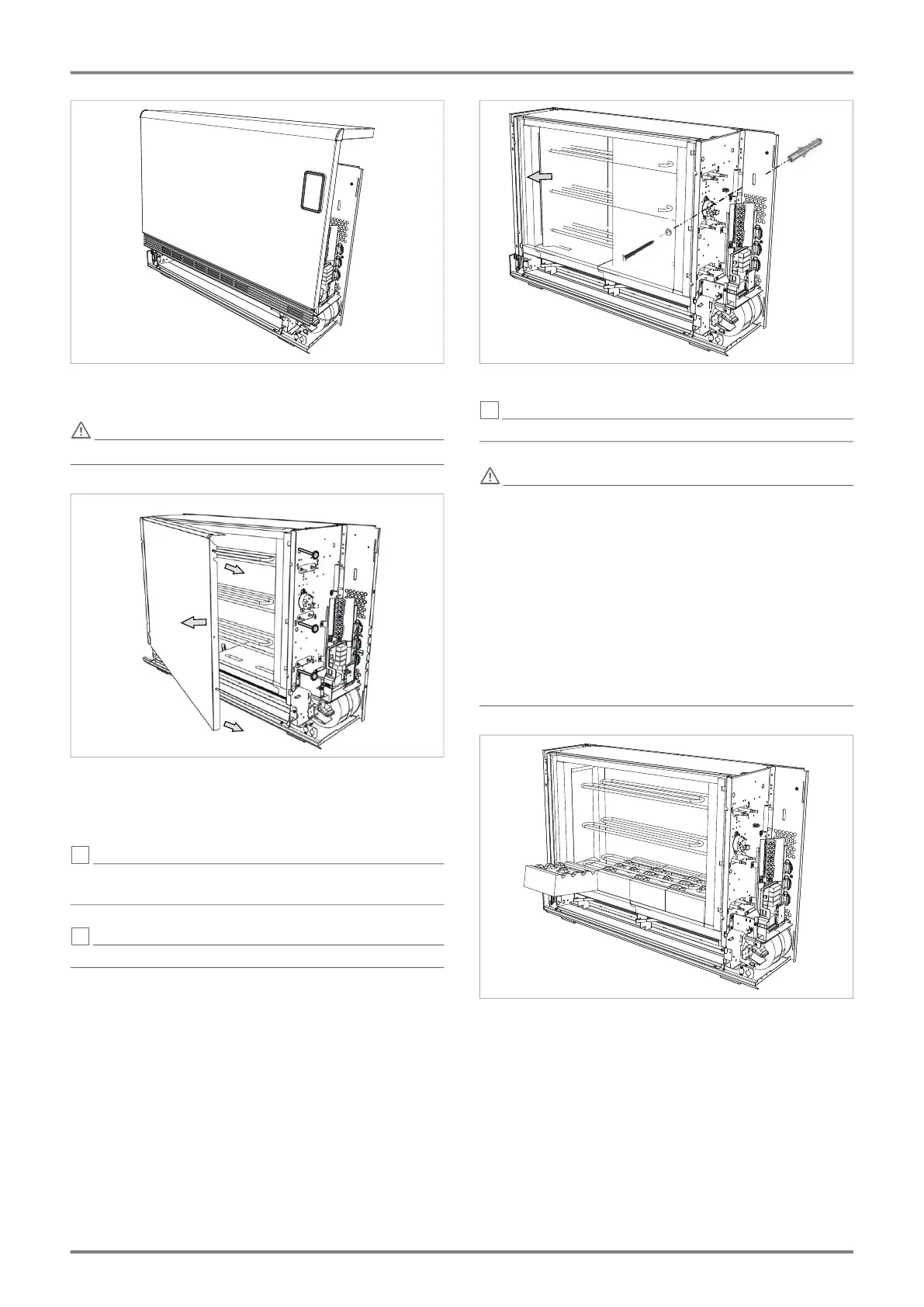

6.5 Swivel out the front panel to the front, lifting it
slightly to release it from its rear fixing.
ATTENTION!
The inner plate edges may be sharp.
6.6 Remove the core room cover. To do this, loosen
and remove the three fixing screws at the side. Lift the
core room cover slightly, swivel it outwards (A) and
then pull it to the right (B).
NOTE
Remove the transport protection of the heating ele-
ments.
NOTE
Do not place any objects on top of the heating device.
6.7 Mount the tilt protection.
NOTE
The wiring must not be damaged.
ATTENTION!
The device must be secured so that it does
not tilt. After assembly, the upper edge of the
storage heater must be able to withstand a
horizontal load of at least 200 N (20.5 kg)
without tilting or shifting. If the required sta-
bility cannot be achieved with the supplied
accessories, e.g. if the wall is not sufficiently
stable, the installer must use a more suitable
method for fixing the heating device to the
wall.
6.8 Push the first row of storage stones under the
heating element into the core room, starting from the
right.
Ensure that the indentations in the storage stones for
holding the heating element always point upwards.
