www.dimplex.eu 2202/D EN-11
Installation English

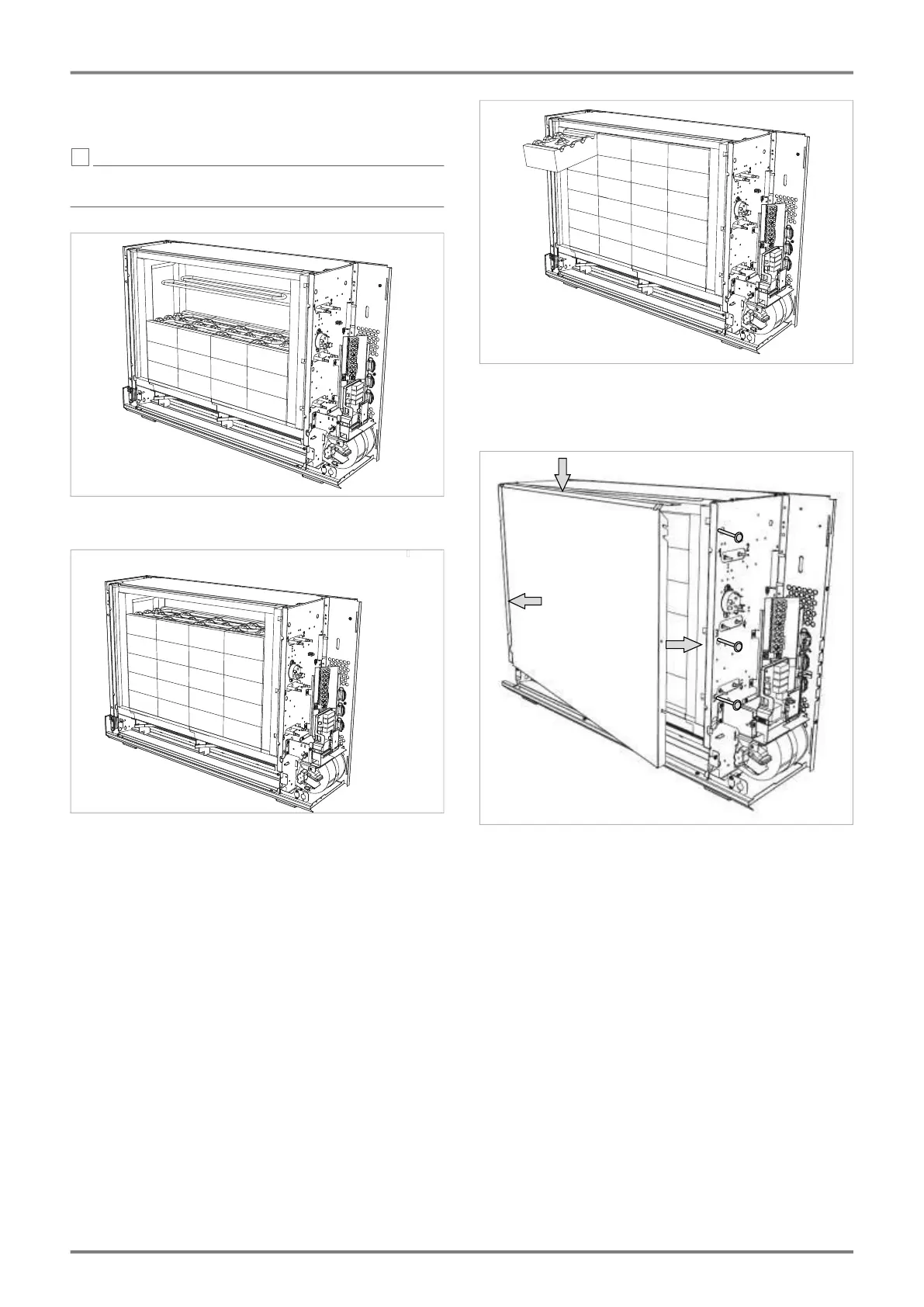

Arrange the heating element in the indentations in the
storage stones to the left.
NOTE
The thermal insulation must not be damaged when in-
serting the storage stones.
6.9 After inserting the second row, push in the third
row of storage stones under the heating element.
6.10 After inserting the fourth row, push in the fifth
row of storage stones under the heating element.
6.11 Insert the top row of storage stones in the same
way. Check that the heating element can slide freely.
Trapped heating elements cause noises. Clean the air
outlet area and the switchbox.
6.12 Reinsert the core room cover.
Left: The upper edge (A) of the core room cover must
rest on the partition. Slide the lateral edge (B) behind
the bevel of the partition.
Right: Insert the lateral edge of the core room cover
(C) between the thermal insulation and the partition.
Watch out for the guiding slots.
Press the core room cover firmly and fix in place with
the three screws.
