Directed Electronics ViperAudio d300.1 - Speaker Wiring Diagrams

SPEAKER WIRING DIAGRAMS
11
© 2002 Directed Electronics, Inc

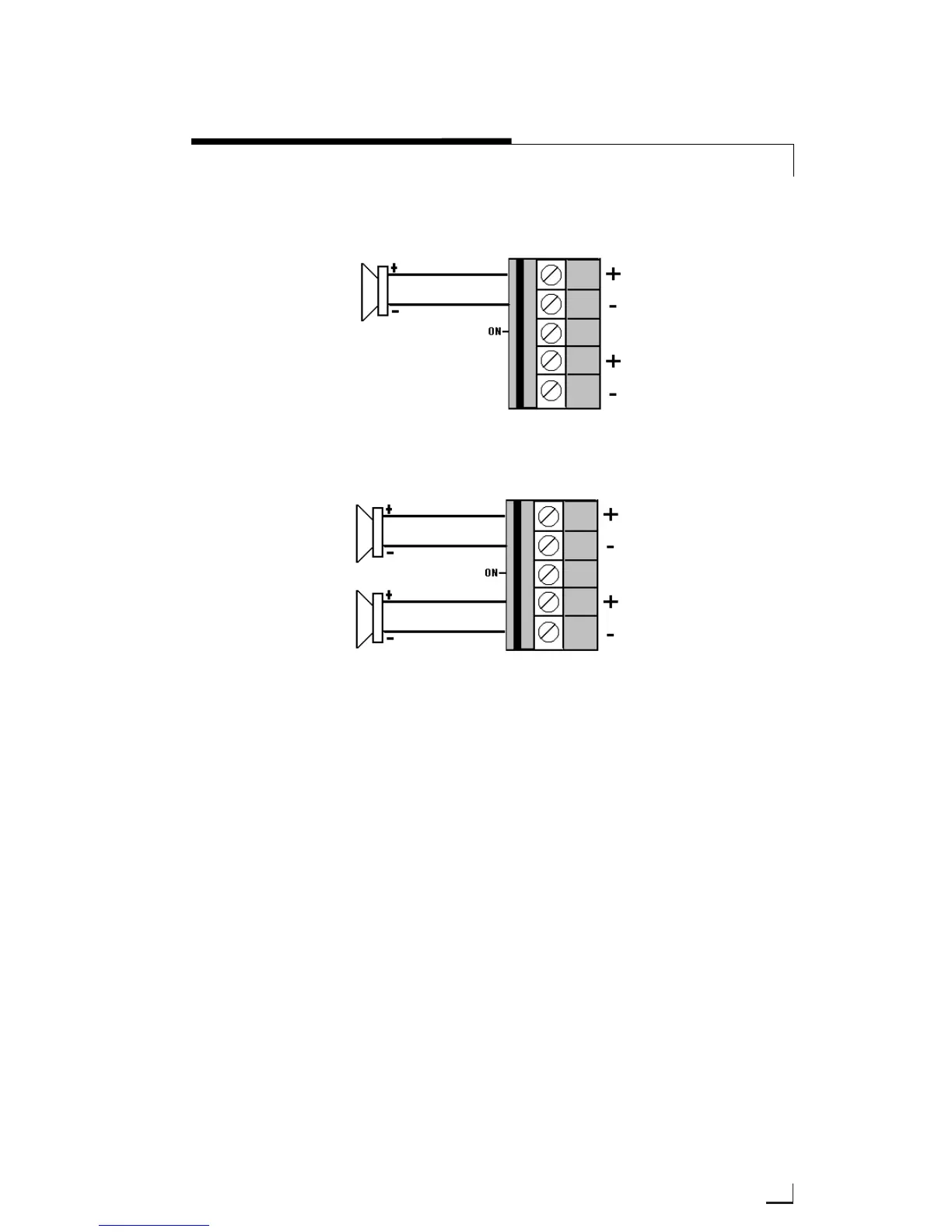

Single subwoofer connection (bottom view)
NNOOTTEE::
The dual + and -- subout terminals of the d300.1 are paralleled internally and the combined load impedance should be taken
into consideration when connecting multiple subwoofers.
Two subwoofer connection (bottom view)
