Directed Video OHD901 - Page 35

© 2005 Directed Electronics, Inc.

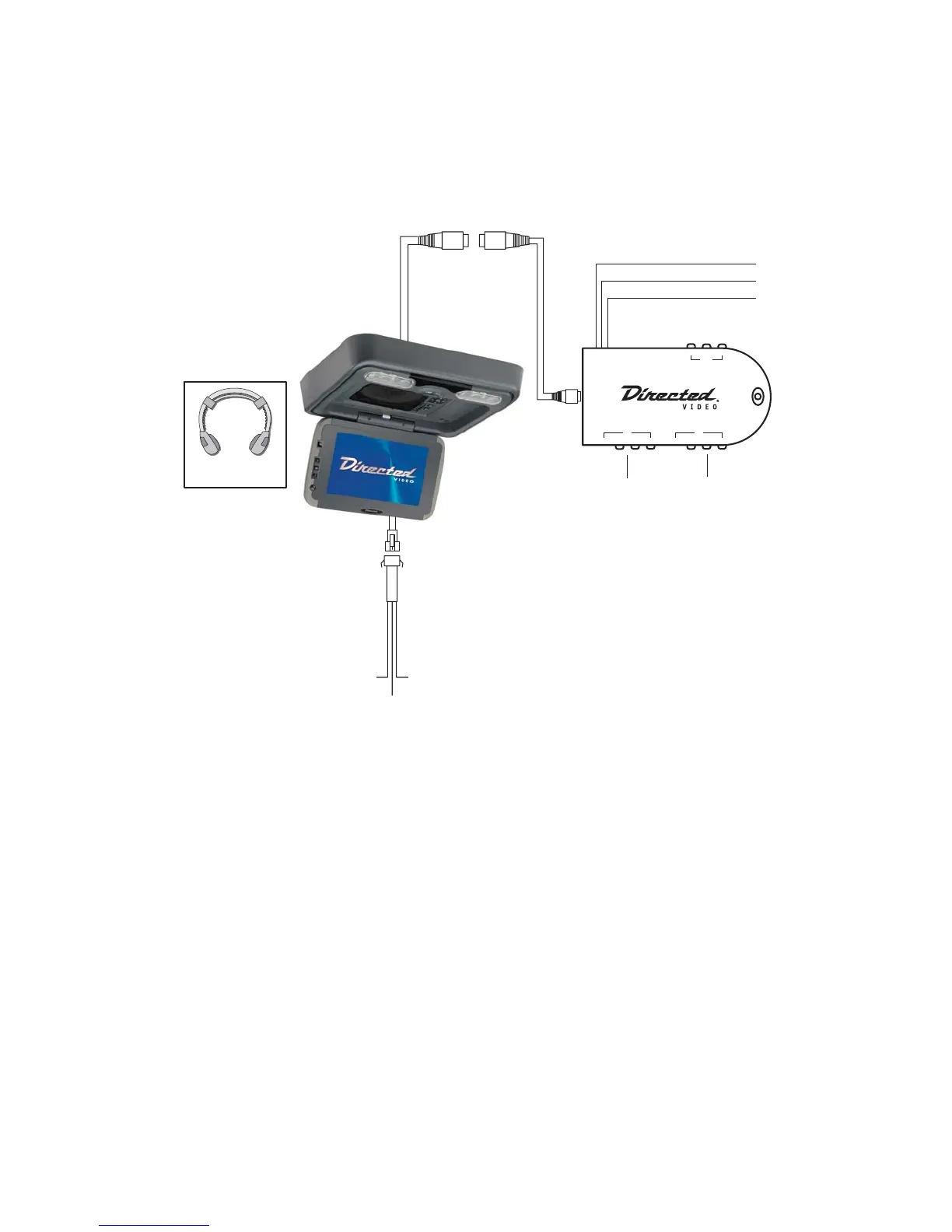

TTYYPPIICCAALL WWIIRRIINNGG DDIIAAGGRRAAMM
Wireless
Headphones
A(R) A(L) V
OUT
IN1
IR V A(L) A(R)
IN2
IR V A(L) A(R)
MONITOR
BLACK–Ground
YELLOW–12V Constant
RED–Ignition
BLACK–Ground
YELLOW–12V Constant
GRAY (-) Door Trigger
A/V
SOURCE 2
A/V
SOURCE 1
A/V
OUTPUT 3
35
