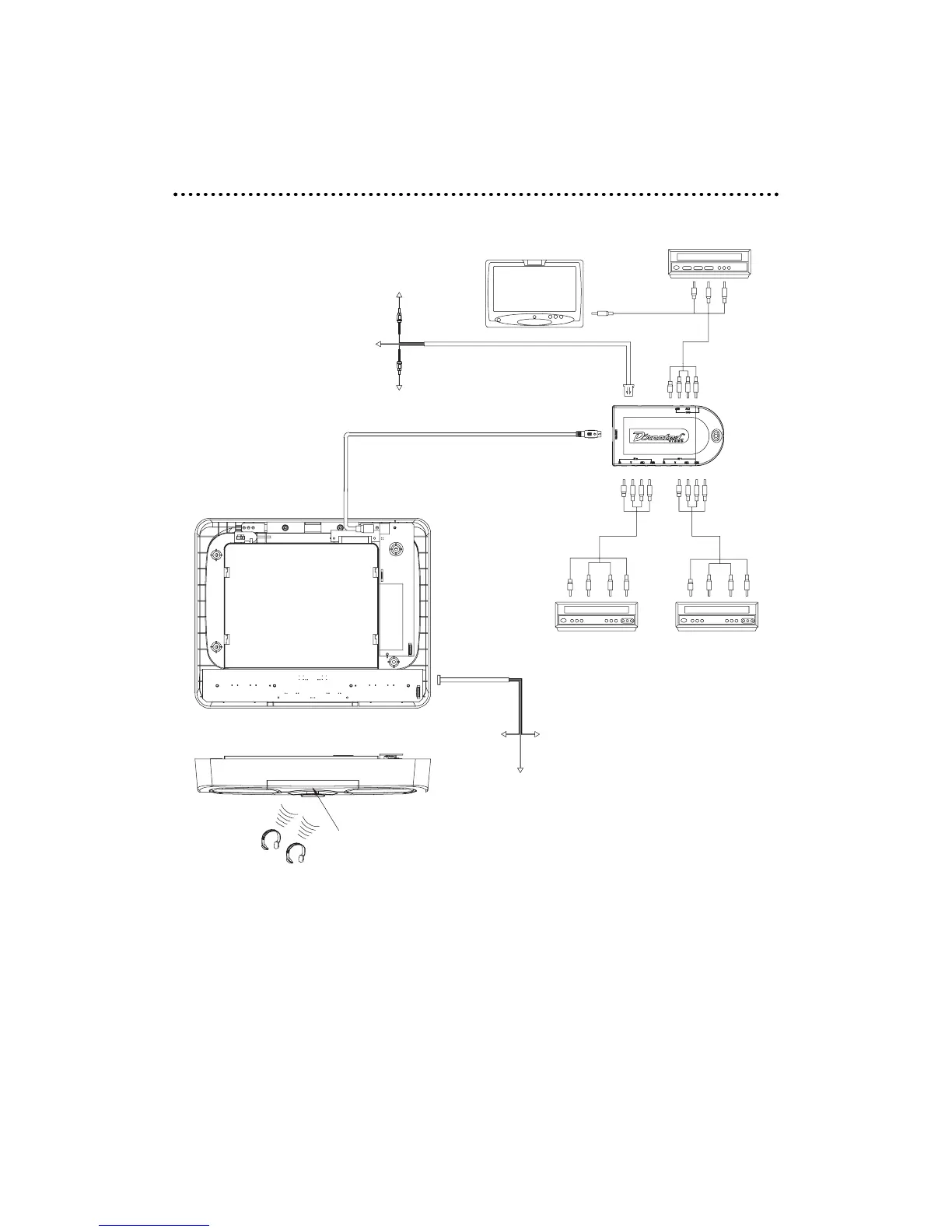

SSyysstteemm WWiirriinngg DDiiaaggrraamm EExxaammppllee
Video In
VCR
or
AUDIO AMPLIFIER
OUT
Power
ININ
Audio
R
Video
L
Audio
Video
DVD
or
TV Tuner
DVD
L
R
BLACK (GROUND)
GRAY (DOOR SWITCH)
YELLOW
+12V CONSTANT
IR Transmitter
BLACK (GROUND)
RED (ACC)
YELLOW
BATTERY (+12V)
