Version 1.0
10/2017
User Manual—Osprey and
R
emote Control
3. Other
Associated
Hardware
i. Mounting Specifications
C71KW will support table top and wall mounting configurations.
C71KW will not have vent holes in the top of the cover. The C71KW
bottom cover will have a recess for attaching a cable tie for hanging
the unit in a wall mount scenario.
Cable tie’s specifications:
a. Width: 4.5mm
b. High: 1.25mm

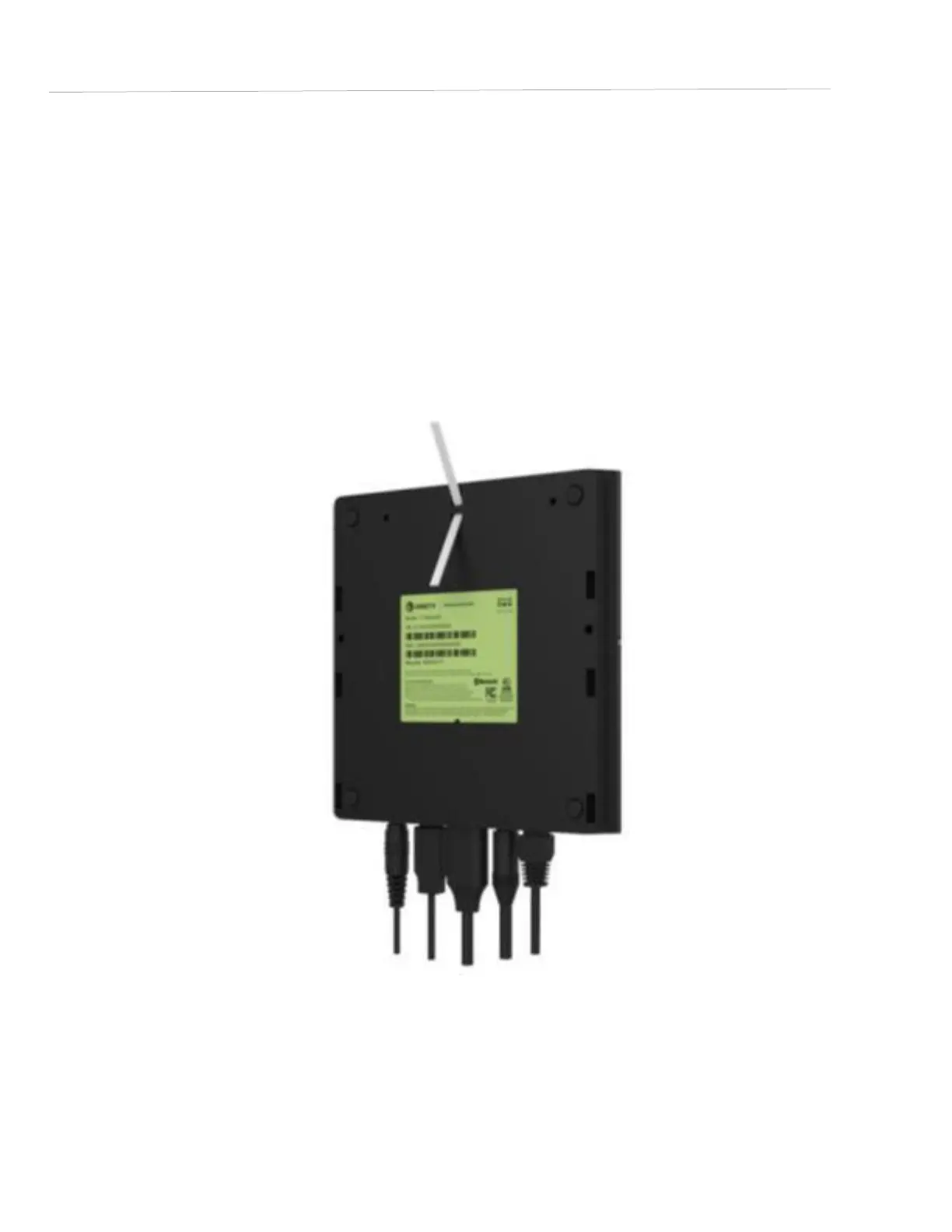

FIGURE 4: C71KW WALL MOUNTING
