DirecTV C71KW Series - C71 KW Client Hardware

Version 1.0 10/2017

User Manual—Osprey and
R
emote Control





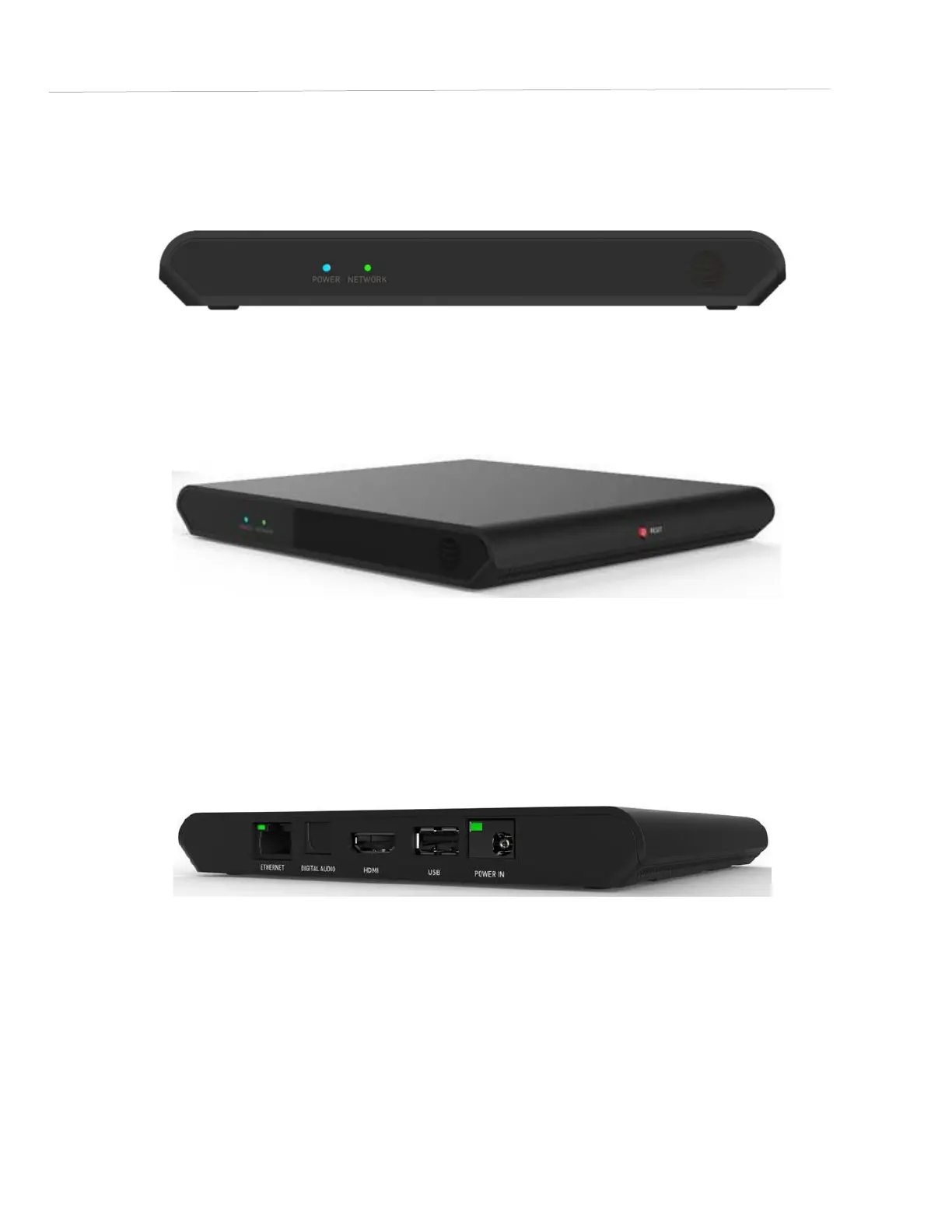

2. C71KW Client Hardware
i. Front Panel
1. Blue Power Status Indicator LED
2. Green / Yellow / Red Network Status Indicator LED







FIGURE 1: C71KW FRONT PANEL



ii. Side Panel
1. Red Reset Button












FIGURE 2: C71KW SIDE PANEL

iii. Rear Panel
1. 10/100 Ethernet Connector with Indicator LED
2. S/PDIF Optical Audio
Connector
3. HDMI Connector (Type
A)
4. USB 2.0 Port (Type “A” connector)
5. DC Power Inlet Connector (for EPS10 External Power Supply)
with Power Indicator
LED


FIGURE 3: C71KW REAR PANEL
