Example: TV with RCA Connectors
Here is an example of a TV that has RCA connectors as the best
video input and RCA audio connectors as the best audio input.
This example also shows using a VCR with component video
connectors and RCA audio connectors.
Receiver with A/V Out Connector
Some HD receivers have a special A/V Out connector that supports
either component or RCA (composite) video. Receiver model H25
comes with the A/V Out cable that supports component video and
RCA audio. You can also purchase an optional cable with A/V Out to
RCA audio and video (composite) connectors.

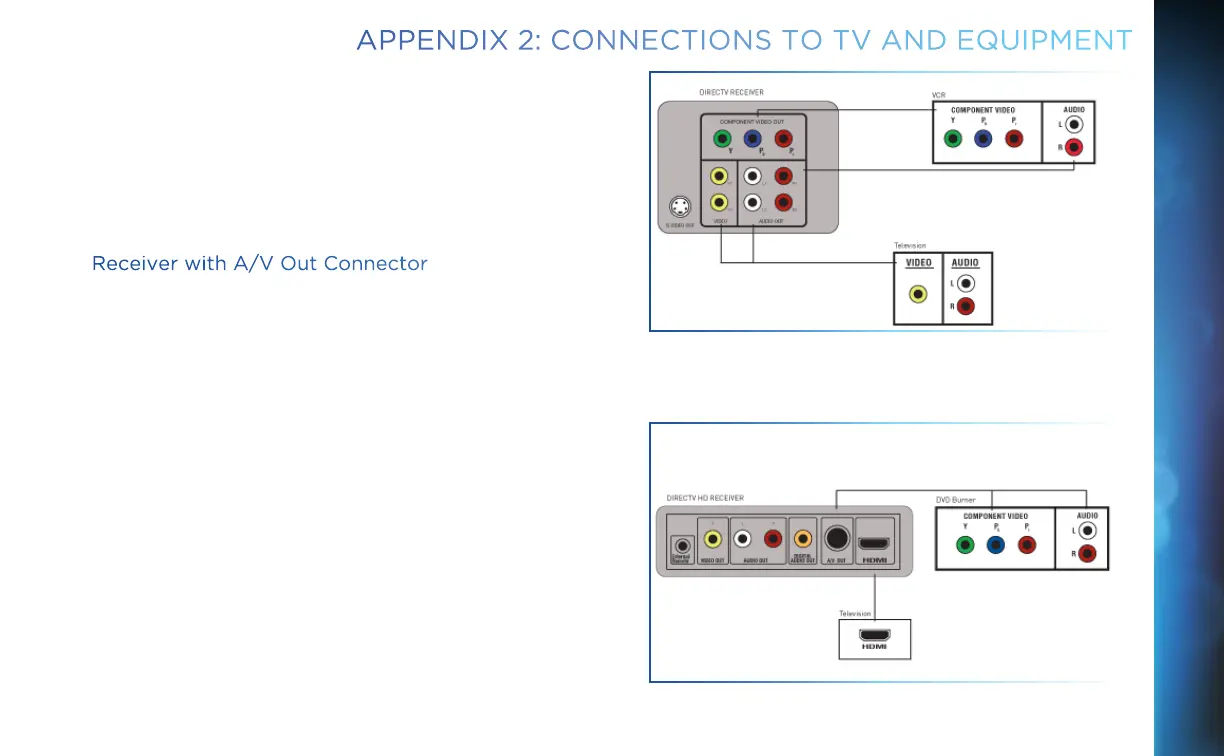

Example: Using the A/V Out Component
Video Cable
Here is an example using a TV that has an HDMI connector as the
best audio/video input.
This example also shows connecting your receiver to a DVD
burner using the AV Out cable that comes with your receiver for
component video and RCA audio connections.
APPENDIX 2: CONNECTIONS TO TV AND EQUIPMENT
