Dirt Devil CV1500 - Important Safety Instructions

Installation
CENTRAL VACUUM SYSTEMS
HOSE, CUT TO LENGTH
#6452-15 = 5 FT LONG
#6452-06 = 10 FT LONG
#6452-05 = 29 FT LONG
#6452-13 = 60 FT LONG
-THREADS INTO 7477-G FLEX KIT
7477-G FLEX KIT INCLUDES:
(2) THREADED COUPLINGS
(2) 5527W
(SEE
PAGE 5
FOR MORE
INLET
VALVE
OPTIONS)
8735W
Dirt Devil
®
CV1500 Central Vacuum

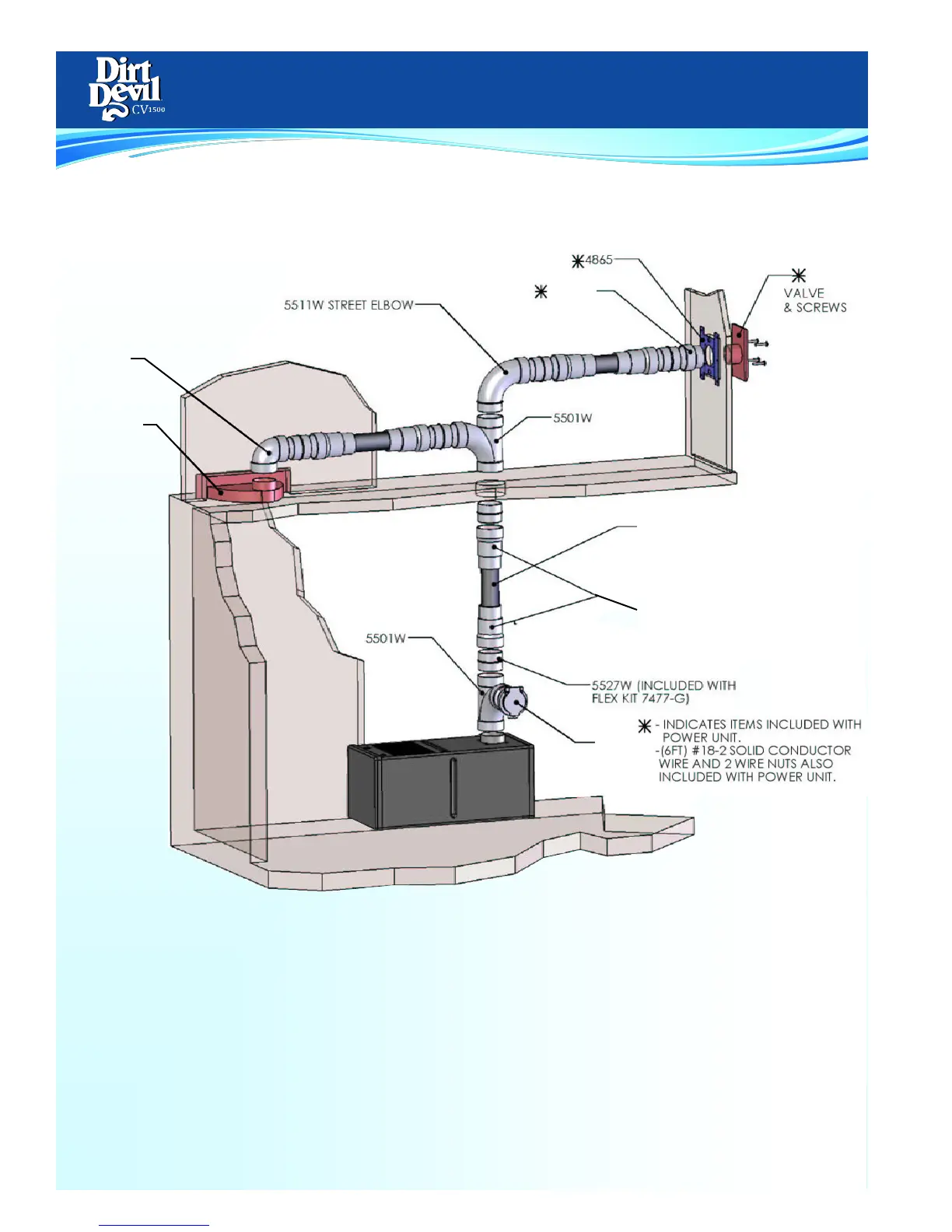

System Layout
ADDITIONAL ACCESSORIES:
5149 - WIRE NUTS
5038 - PVC SOLVENT
NOTES:
1) This illustration shows a typical installation. Many different mounting configurations can be
achieved by using these standard components.
2) Rigid PVC tubing (#6928W) may be used in place of flexible hose (6452-06, -05, -13) and the
flex kit (#7477-G).
5148-6 - #18-2 SOLID CONDUCTOR WIRE (6 FT)
5148-14 - #18-2 SOLID CONDUCTOR WIRE (14FT)
5139W - #18-2 SOLID CONDUCTOR WIRE (100 FT) SPOOL
5018W - VALVE STEM EXTENSION USED FOR THICK WALLS
5510W - 90º ELBOW (NOT STREET)
VACPAN
7710W WHITE
7710B BLACK
7710A ALMOND
5506W
5586W
