03
ASSEMBLY
02

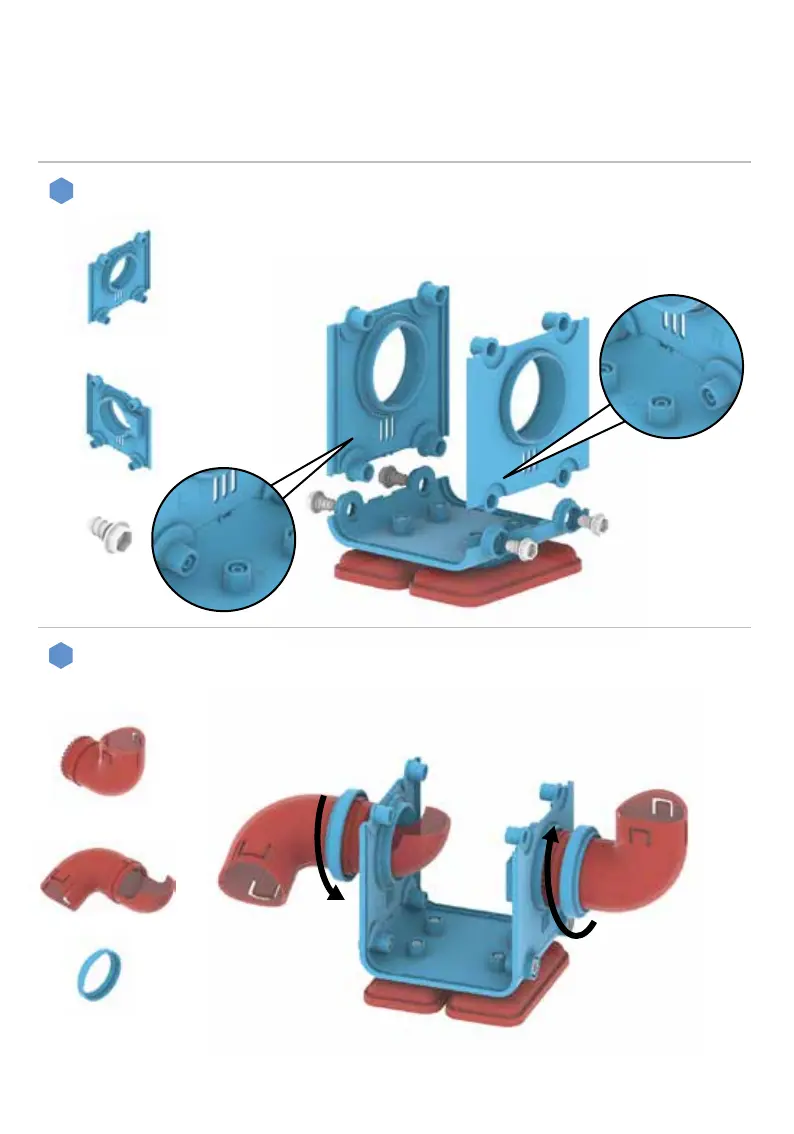

With the 3 cutout lines facing the robot’s feet, line up the side body plate (L) to the
L-side of the bottom body plate and attach with the bolts. Repeat for the side body
plate (R) to the R-side of the bottom body plate.
Side Body Plate (L)
x1
Side Body Plate (R)
x1
Bolt
x4
Right Arm
x1
03
Left Arm
x1
Insert the left arm into the side body plate (L) and secure from the outer side by
twisting an arm holder clockwise. Repeat for the right arm on the side body plate (R).
Arm Holder
x2
To Next Page
