06
ASSEMBLY
Side Head Plate
x2
06
Bolt
x4

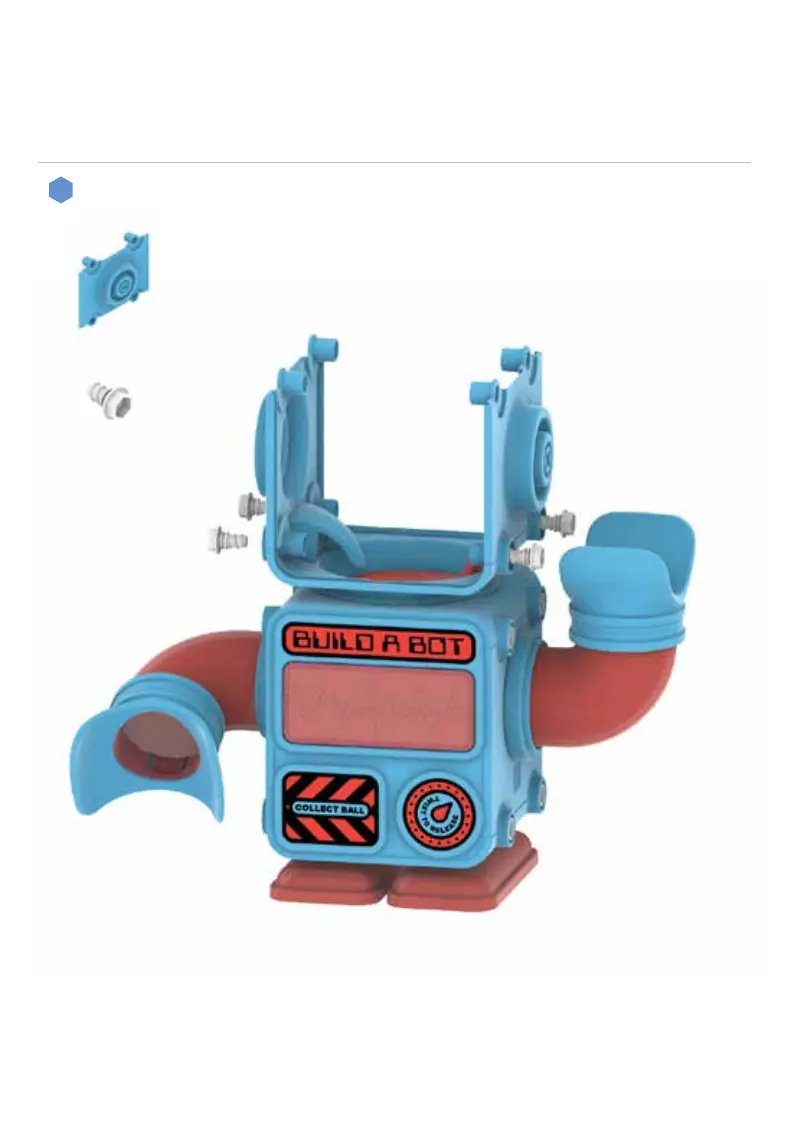

With the circles facing out, line up each side head plate (x2) to the holes in the
bottom head plate and attach with the bolts in the bottom holes only.
