54 1030/1230 - LUBRICATION AND MAINTENANCE
LUBRICATION SCHEDULE
54 1030/1230 - LUBRICATION AND MAINTENANCE
LUBRICATION SCHEDULE

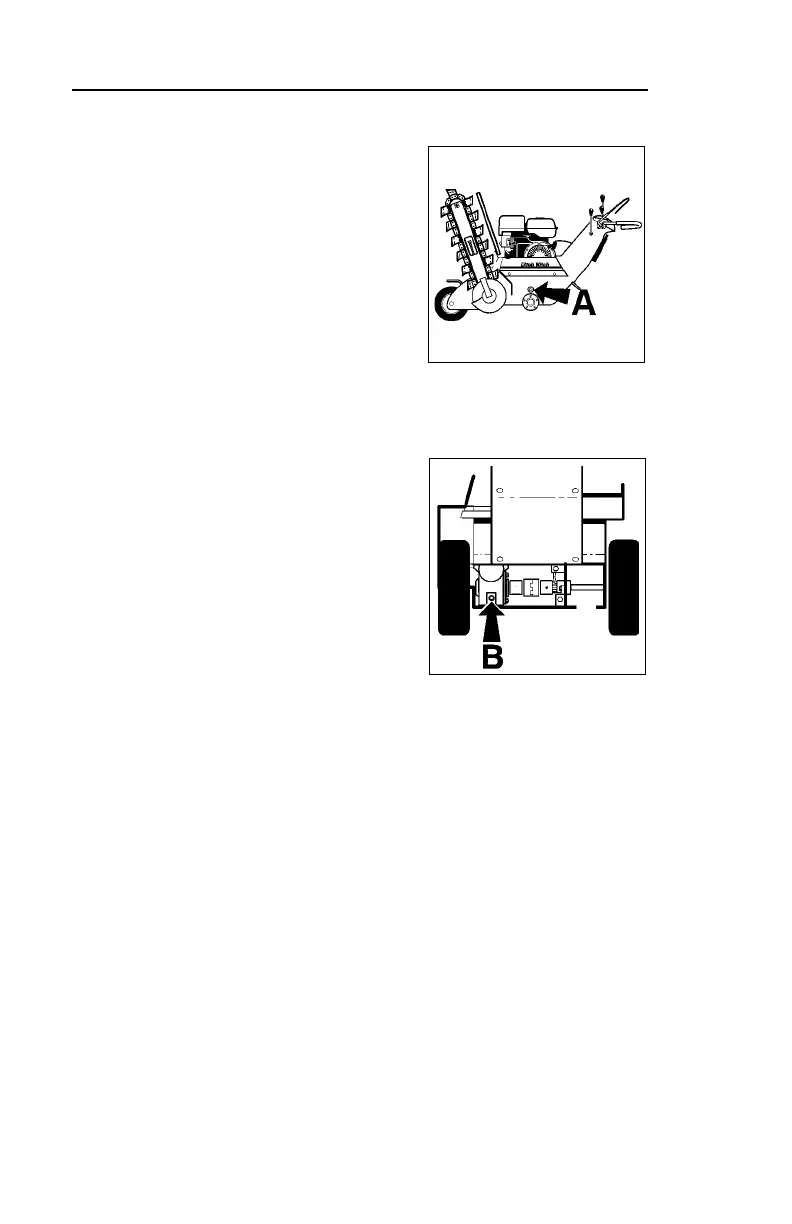

Worm Drive
Check
Check worm drive oil every 50
hours at fill plug (A). Refill with
AGMA-7 as necessary to keep oil
level with fill plug.
Change
Change worm drive oil every 500
hours.
• Empty worm drive at drain (B).
• Replace drain plug.
• Fill with AGMA-7 to fill plug,
approximately 3.25 pt (1.5 L).
NOTICE: Do not use a
substitute lubricant. Worm
drive failure could occur.
