CONTROL DESCRIPTIONS
HT25 - BACKHOE
55
CONTROL DESCRIPTIONS
Boom/Swing Control
This control moves boom left or
right and raises or lowers boom.
• Move left to swing left.
• Move right to swing right.
• Pull to raise.
• Push to lower.
Control can perform more than one
action at a time. Using them together, operator can “feather,” or
combine, backhoe operations.
Stow Lock
This control locks boom during transport.
To lock:
• Turn handle counterclockwise.
• Raise boom fully.
• Release handle. Boom will settle into latch.
To release:
• Lift boom slightly.
• Turn handle counterclockwise to release latch.
• Lower boom slightly.
• Release handle.

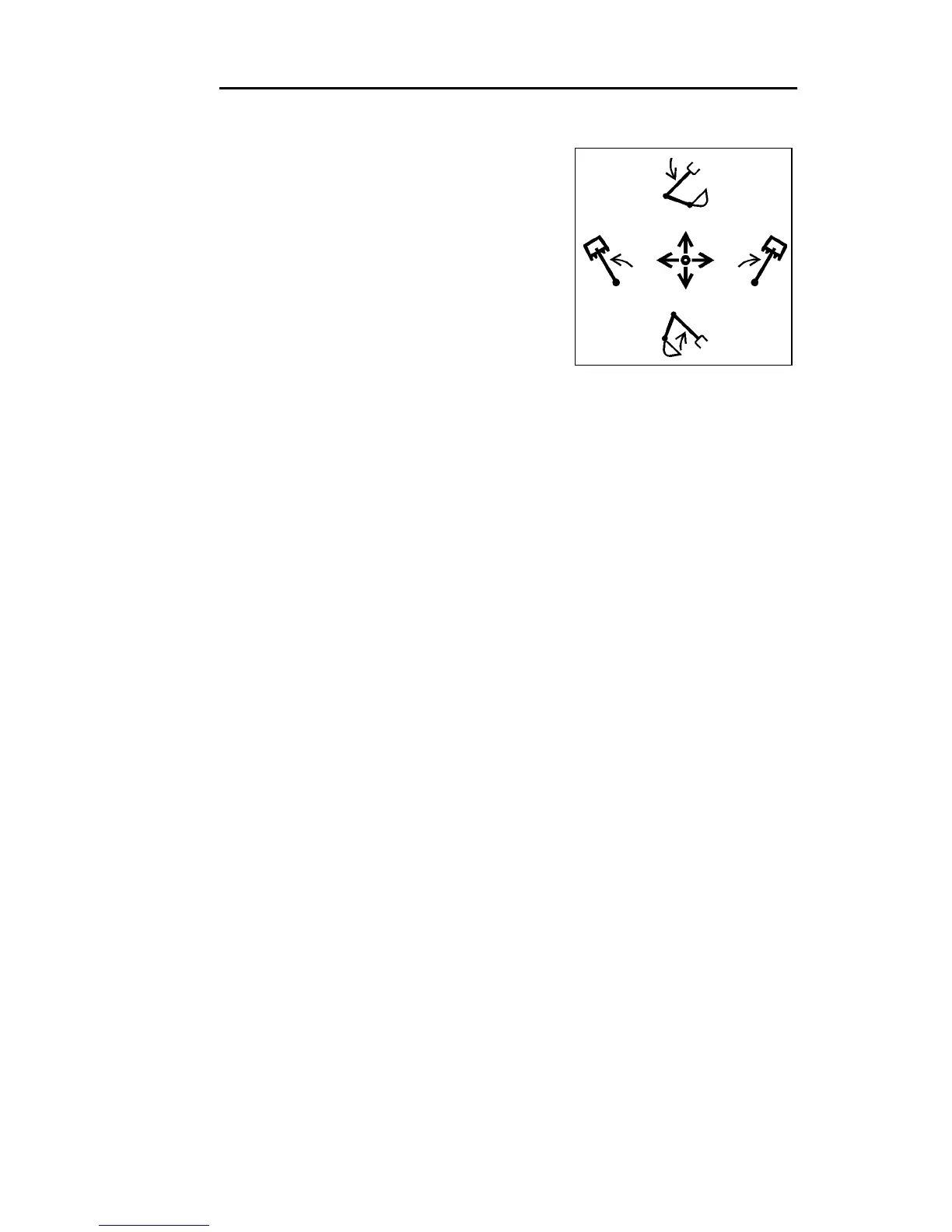

ic0042c.eps
Boom/Swing Control
This control moves boom left or
right and raises or lowers boom.
• Move left to swing left.
• Move right to swing right.
• Pull to raise.
• Push to lower.
Control can perform more than one
action at a time. Using them together, operator can “feather,” or
combine, backhoe operations.
Stow Lock
This control locks boom during transport.
To lock:
• Turn handle counterclockwise.
• Raise boom fully.
• Release handle. Boom will settle into latch.
To release:
• Lift boom slightly.
• Turn handle counterclockwise to release latch.
• Lower boom slightly.
• Release handle.
ic0042c.eps
