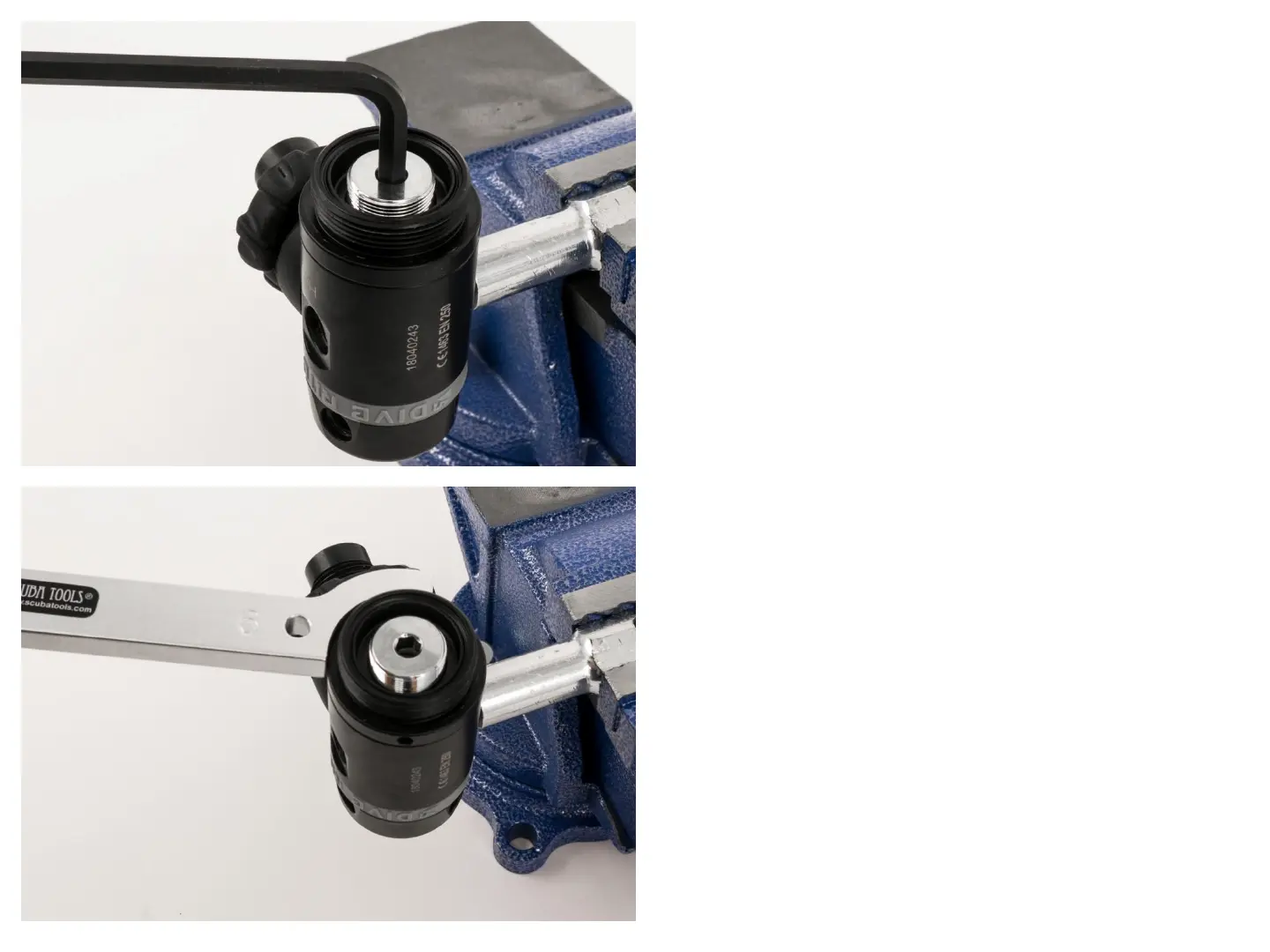

4) Use a 6mm Hex wrench to loosen
the Adjustment Screw (15) until spring
tension is relieved
5) Use the spanner wrench to
loosen the Diaphragm Cap (35)
8
