Coverage Pattern
Wall Switch Occupancy Sensor Retrofit
Line Voltage with Neutral
Ph. 877-873-2797
www.DouglasLightingControls.com
Installing in Washrooms
• Sensor effective in partitioned spaces.
• Voice sound re-activation prevents lights out condition.
Standard Lens
• Optimal usage is to detect small motions such as hand movements
• Designed for a mounting height of up to 4 ft.
• ADI-Voice can detect voices around corners to maintain occupancy.

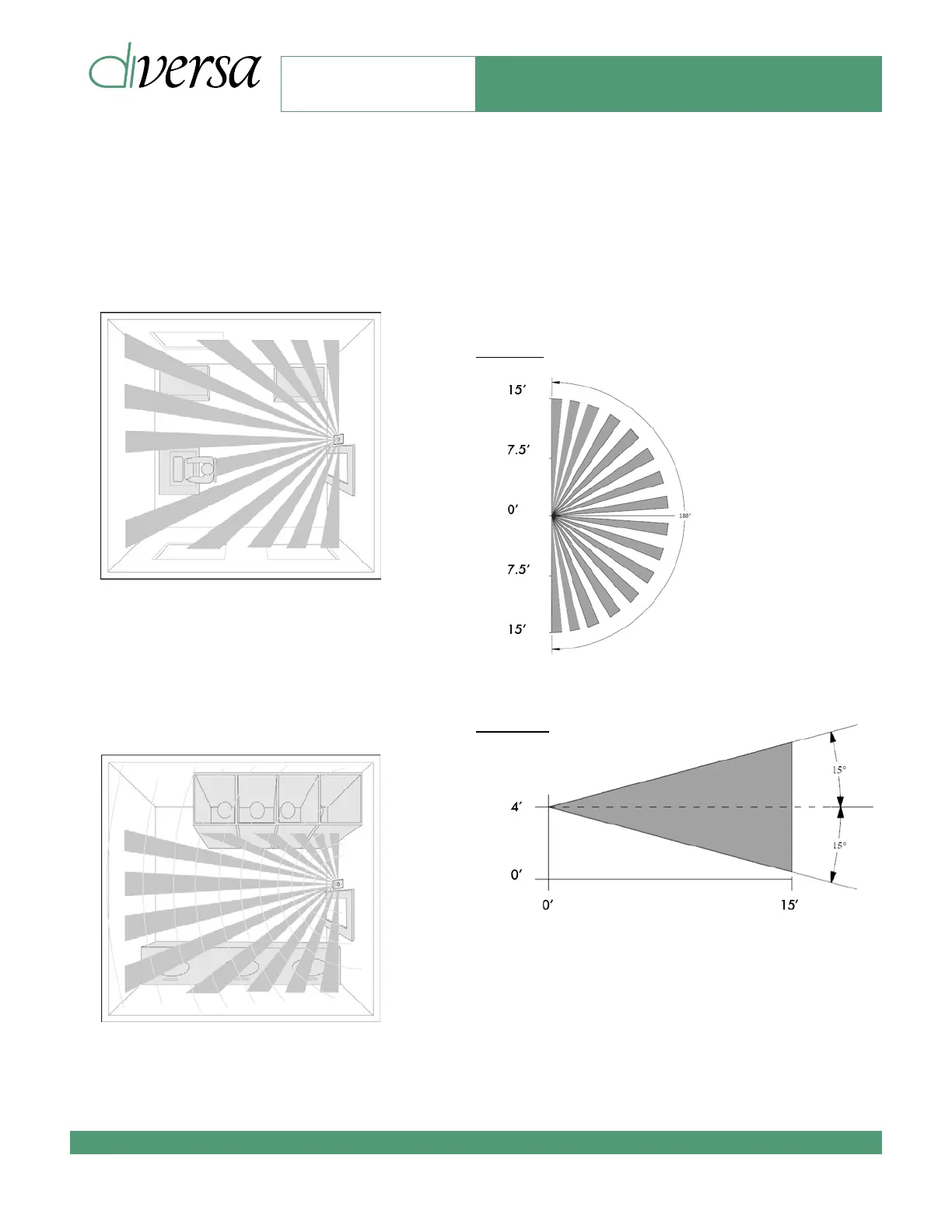

Top View
Side View
Typical Office
Typical Washroom
INSTALLATION
• Mount the WOS Series sensor on the wall about 4’ above floor level near the midline of the room so its PIR detection zones cover the
room area and any obstructions are within range of the ADI-Voice detector.
• There should be no obstructions between the sensor and the room entrance. This ensures that the sensor’s PIR lens will be activated when
a person enters the room, which will subsequently trigger the ADI-Voice.
Installing in Offices
• Sensor effective in obstructed spaces.
• Voice sound re-activation prevents lights out condition.
