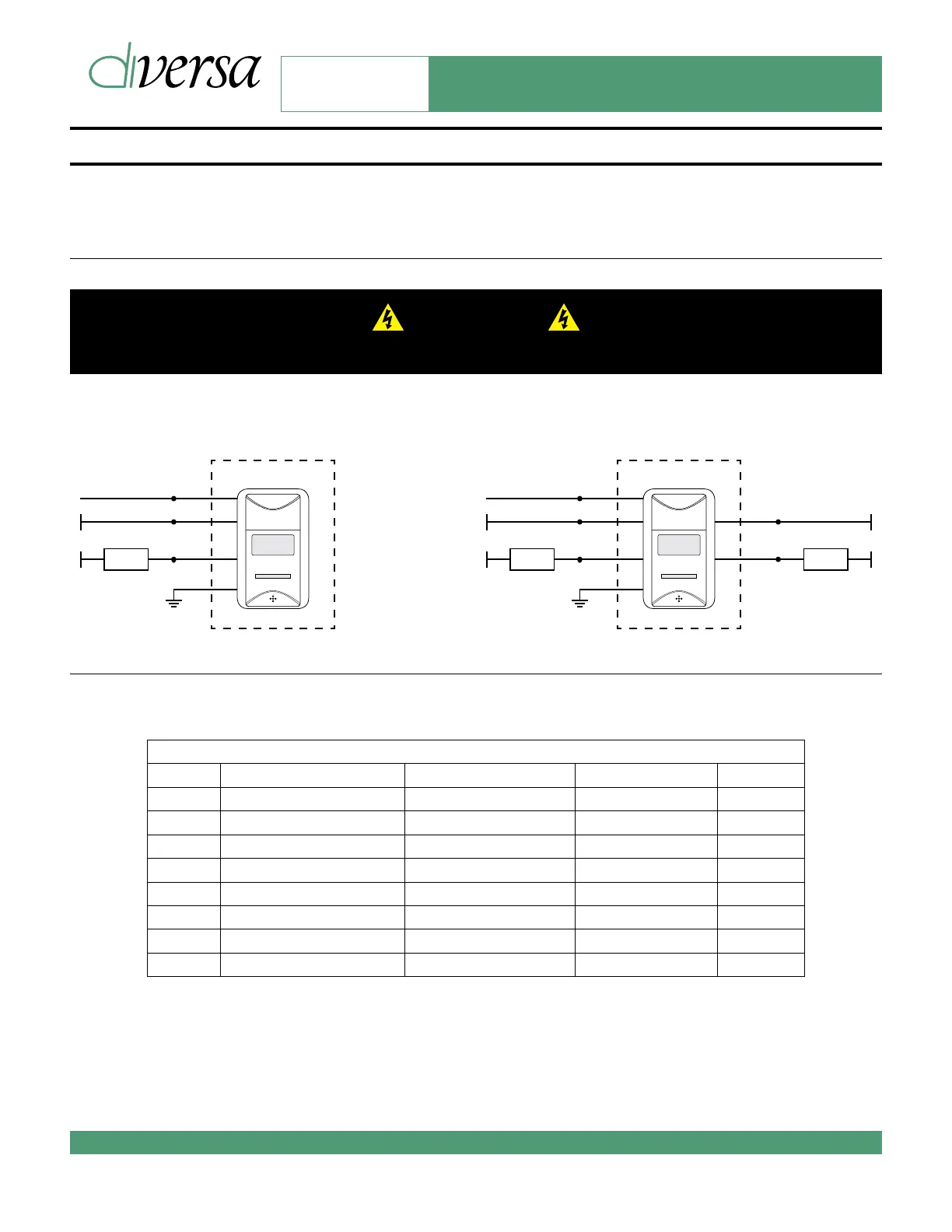

Installation
Wall Switch Occupancy Sensor Retrofit
Line Voltage with Neutral
Ph. 877-873-2797
www.DouglasLightingControls.com
Installation
Mounting of the device requires a standard gang box. Only SQUARE CORNER mud-rings fit these devices.
Wiring
The WOS Series Line Voltage sensors are equipped with #14 AWG stranded leads. Use appropriate sized wire-nuts to connect the wires
to the incoming load terminations; for installation with field-installed conductors of 60ºC minimum rating.
DIP Switches
A bank of eight DIP switches and two rotating controls can be used to manually setup and configure the sensor.
*2-Pole models only
INSTALLATION & WIRING INSTRUCTIONS
WOSSDU*-P-TW
DIP # FUNCTION ON OFF DEFAULT
1
Voice Detection Disabled Enabled OFF
2
Motion Detection Sensitivity High Normal OFF
3
Detection LED Disabled Enabled OFF
4
Auto or Manual ON Occupancy (Auto-On) Vacancy (Manual On) ON
5
Photocell Inhibit Disabled Enabled OFF
6*
Photocell Control Inhibit Primary Pole Only Inhibit Both Poles OFF
7
Manual Override Button Disabled Enabled OFF
8
Settings Input IR Handheld (WR-3110) DIPS & Dials ON
CAUTION
TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WORKING WITH OR NEAR HIGH VOLTAGE
WOSSDU1-P-TW
Blk/Wht
Grn
Ground
(required)
WhtNeutral
Line Blk
Load
WOSSDU2-P-TW
Blk/Wht Blu/Wht
Grn
Ground
(required)
WhtNeutral
Line Blk Blu Line
Load Load
2018-10-16
