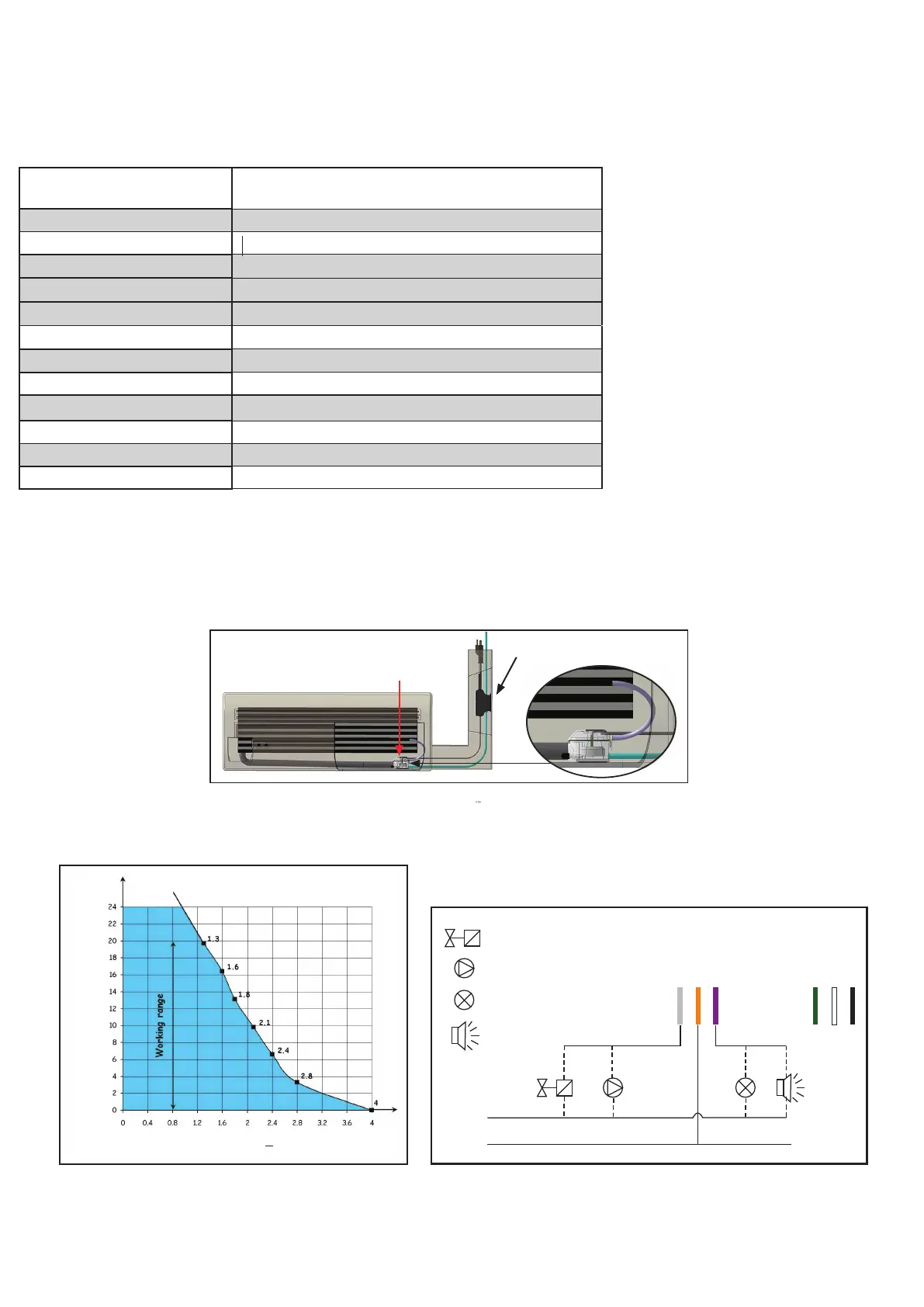

DIVERSITECH Mini-Split CP-M230 - Product Description; Technical Specifications

Figure A
Reservoir Tank
Pump Module
Description
Due to its small size the DiversiTech Mini-Split Pump is easy to use in all ductless systems (ceiling, wall or
oor-standing) with a cooling capacity of 34,000 btu/hr or less. The Mini-Split
®
Pump comes in 2 modules:
• pump module (pump + control circuits)
• tank reservoir (3 level oat: Pump shut-down, Pump start-up and alarm.)
Technical Data
Liquid type: condensate water from mini-split system -
maximum 35
°
C/95
°
F
Power Supply 115 V 60 Hz or 230 V 50/60 Hz
Consumption 19 W
Rating 70% duty cycle (ex: 7 sec.ON/3 sec. OFF)
Working temperature 41
°
F to 113
°
F - 5
°
C to 45
°
C
Storage temperature 37
°
F to 158
°
F - 3
°
C to 70
°
C
Class class 1 appliance
Capacity 4 GPH @ zero head, 1.3 GPH @ 20  head
Maximum discharge see Flow Rate Chart
Maximum suction 6.6 
Thermal protection yes – with auto-restart
Ingress Protection IP64
Noise level < 21 dBA* at 3.3  distance
*= Average level pressure at 3.3 , calculated on acoustic power level Lwad = 32.80
dBA (ref 1pw) NF EN Iso 3744 standards
Installation
This pump must not be installed in zones of air circulation.
Alarm and mains connections
Flow (GPH)
+
10%
Head Height - Ft.
Flow Rate Chart
The power must be connected to a dierent source than air unit. Disconnect power before installation.
Only use the supplied cables.
Grey NC
Orange C Purple NO
Solenoid valve
Compressor
Light alarm
Sound alarm
Green Ground
White Neutral Black Line
Neutral/Line 2
Line/Line 1
or and / or or
