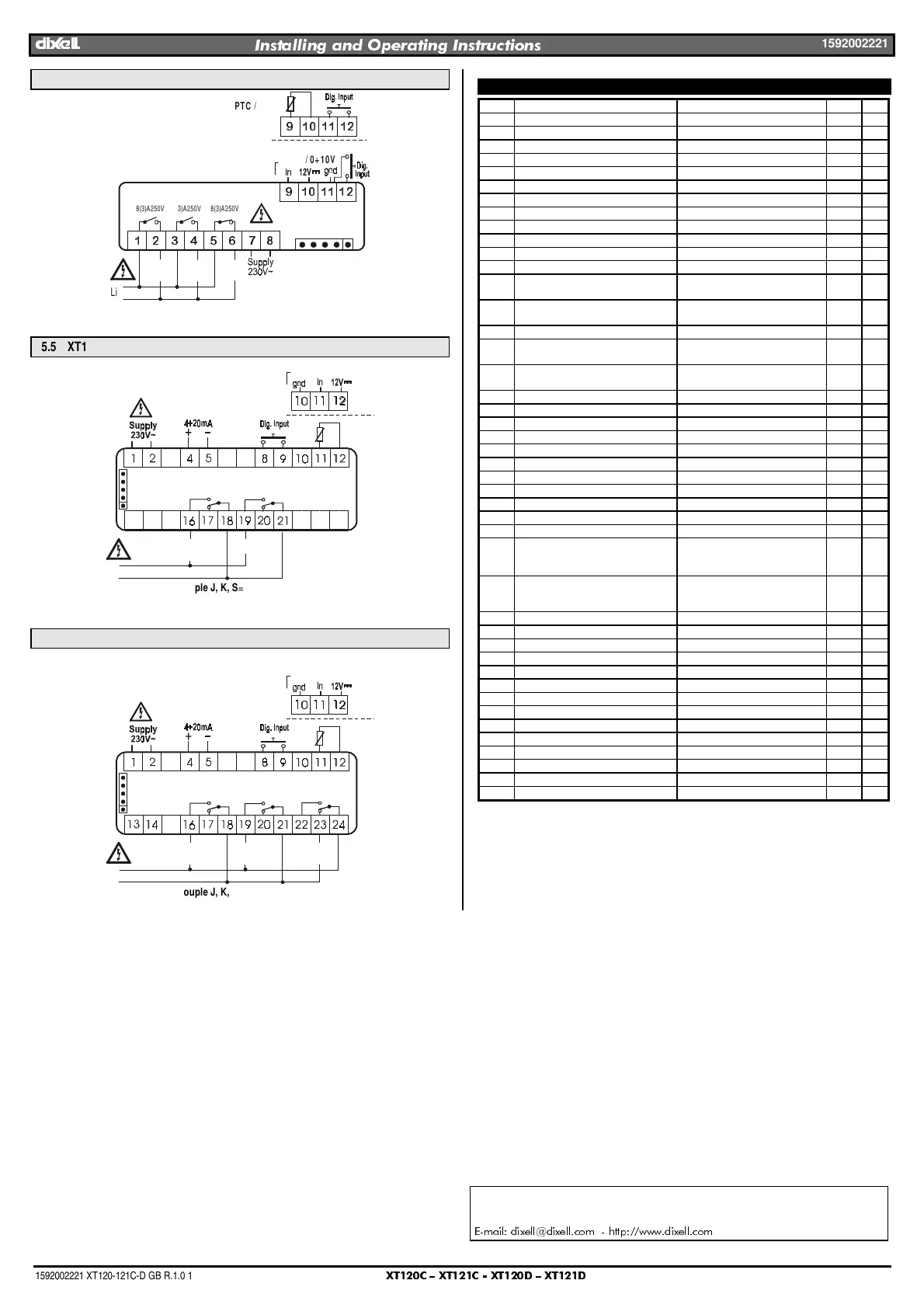

15.4 XT121C – 230V AC OR 115V AC


Hot-KEY
8(3)A250V8(3)A250V 8(3)A250V
Line
LOAD 1
LOAD 2
Alarm
Input 4÷20mA
0÷1V / 0÷10V


PTC / NTC
Probe: Pt100
=9–11 (10);
Thermocouple J, K, S
= 9(+) - 11(-)
115Vac supply:
7-8
15.5 XT120D – 230V AC OR 120V AC OR 24V AC
Input: 4÷20mA
0÷1V / 0÷10V









PTC
NTC
8(3)A250V 8(3)A250V
Line
LOAD 1
LOAD 2
Hot-KEY
Analog
Out
Probe: Pt100
=11 - 10 (12);
Thermocouple J, K, S
= 11(+) - 10(-)
115Vac supply:
1-2;
24Vac supply:
1-2
15.6 XT121D – 230V AC OR 115V AC OR 24V AC
Input: 4÷20mA
0÷1V / 0÷10V









PTC
NTC
8(3)A250V 8(3)A250V
8(3)A250V
Line
LOAD 1
LOAD 2
Alarm
Hot-KEY
Analog
Out
Probe: Pt100
=11 - 10 (12);
Thermocouple J, K, S
= 11(+) - 10(-)
115Vac supply:
1-2;
24Vac supply:
1-2
16. DEFAULT SETTING VALUES
COD Name Range °C/°F
Lev
Set1
Set point1 LS1÷US1 0/32 -
Set2
Set point2 LS2÷US2 1/34 -
Hy1
Differential 1 -Full Sc./ Full Sc. -1/-2 Pr1
Hy2
Differential 1 -Full Sc./ Full Sc. -1/-2 Pr1
LS1
Minimum set point1 Down Sc./ Set1 min Pr2
LS2
Minimum set point2 Down Sc./ Set2 min Pr2
US1
Maximum set point1 Set1/ Full Sc. max Pr2
US2
Maximum set point2 Set2/ Full Sc. max Pr2
ouC
Output configuration ind= independent; diP = dependent ind Pr2
S1C
Action type output 1 in= Inverse; dir=direct in Pr2
S2C
Action type output 2 in= Inverse; dir=direct in Pr2
Ac
Anti-short cycle delay: 0÷250 sec 0 Pr2
on
Minimum time a stage stays switched
ON
0÷250 sec 0 Pr2
ono
Minimum time between 2 following
switching ON of the same load
0÷120 min 0 Pr2
ALC
Alarm configuration rE=relat.; Ab= absolute rE Pr2
ALL
Minumum alarm (ALC=rE)
(ALC=Ab)
0 ÷ |Start Sc.-Set1|;
Start Sc.÷ ALu
10.0/ 20
Pr2
ALU
Maximum alarm (ALC=rE)
(ALC=Ab)
0 ÷ |Full Sc.-Set1|.
ALL÷ Full Scale
10.0/ 20
Pr2
ALH
Alarm recovery differential 0÷Full scale 2.0/4 Pr2
ALd
Alarm delay 0÷999 min 15 Pr2
dAO
Alarm delay at start up 0÷23h 50min 1.3 Pr2
So1
Out1 status with faulty pr. oFF=open on=closed oFF Pr2
So2
Out2 status with faulty pr. oFF=open on=closed oFF Pr2
tbA
1
Alarm relay disabling no; yES yES Pr2
AS
1
Alarm relay polarity CL÷oP oP Pr2
Lci
2
Start scale with current or voltage input -1999÷1999
various
Pr1
Uci
2
End scale with current or voltage input -1999÷1999
various
Pr1
OPb
Probe calibration -Full Sc./ Full Sc. 0.0 Pr1
rES
Resolution in=NO; dE=0,1; cE=0,01 in Pr2
UdM
Measurement unit (
temp
.)
(
current/voltage
)
°C=°C; °F= °F;
0=°C; 1=°F; 2=RH; 3=bar; 4=PSI,
5=off
various
Pr1
PbC
Kind of probe
Pt=Pt100; J=tcJ; c= tck; S=tcS;
Ptc=PTC; ntc= NTC; 0-1=0÷1V; 10=
0÷10V; cur=0÷20mA
various
Pr1
P3F
3
rd
wire presence no=2 wires; yES=3 wires no Pr2
Aoc
3
Analog output configuration Pb = probe; Er = Probe-Set1 Pb Pr2
LAo
3
Lower An.Output limit Down Sc
various
Pr2
uAo
3
Upper An. Output limit Full sc.
various
Pr2
SAo
3
Analog output safety on; oFF oFF Pr2
HES
Energy saving differential Down Sc./ Full Sc. 0.0 Pr2
i1F
Digital input configuration c-H / oFF / AuS / HES / EAL / bAL EAL Pr2
i1P
Digital input polarity cL=closing; oP=opening cL Pr2
did
Alarm delay for dig. input 0÷120m 0 Pr2
Adr
Serial address RS485 address 1 Pr2
OnF
oFF function enabling no=not enabled; oFF=enabled no Pr2
Ptb
Parameter table Readable only -- Pr2
rEL
Software release Readable only --- Pr2
Pr2
To access the Pr2 Readable only 321 Pr1
1
Only for XT121C/XT121D;
2
Only for instrument with 4÷20mA or 0÷1V or 0÷10V
3
Only for instrument analog output
