MOWER DECK ADJUSTMENTS
LEVEL MOWER DECK
Before making any adjustments to the mower
deck, tire size, style, and pressure must be
checked.
Measure from the ground to the top of the frame
rails at the rear of the mower. Adjust the rear
tire pressure to achieve the same height side-to-
side.
Side-to-side leveling of the mower deck is accomplished by lowering the mower deck and adjust-
ing the threaded eyebolts at the front of the deck. Park mower on a level surface and place a level
across the front of the mower deck or position the mower blade tips side-to side. Adjust the eyebolts,
so that the mower deck is level or the distance between the right and left blade tip ends and the sur-
face of the ground is the same.

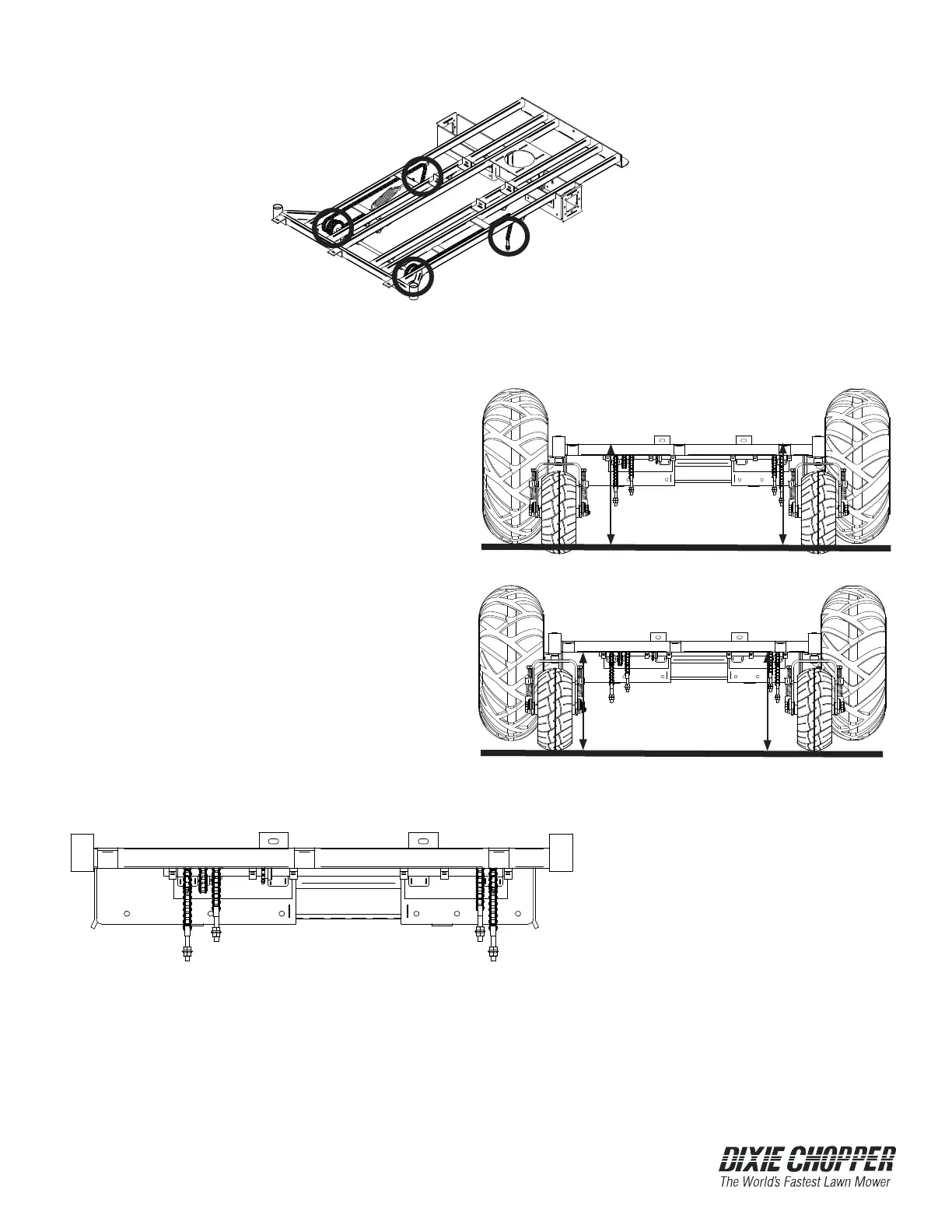

This mower uses 4 chains to raise and lower the deck at a constant level.
Measure from the ground to the bottom of the
frame rails at the front of the mower. Adjust the
front tire pressure to achieve the same height
side-to-side.
Change the pitch of the deck by
adjusting the two rear chains.
Change the height of the deck by
adjusting the two front chains.
