Model # ____________________
Serial # ____________________
Date Purchased ____________________
Engine Serial # ____________________
Engine Model # ____________________
Engine Spec. # ____________________

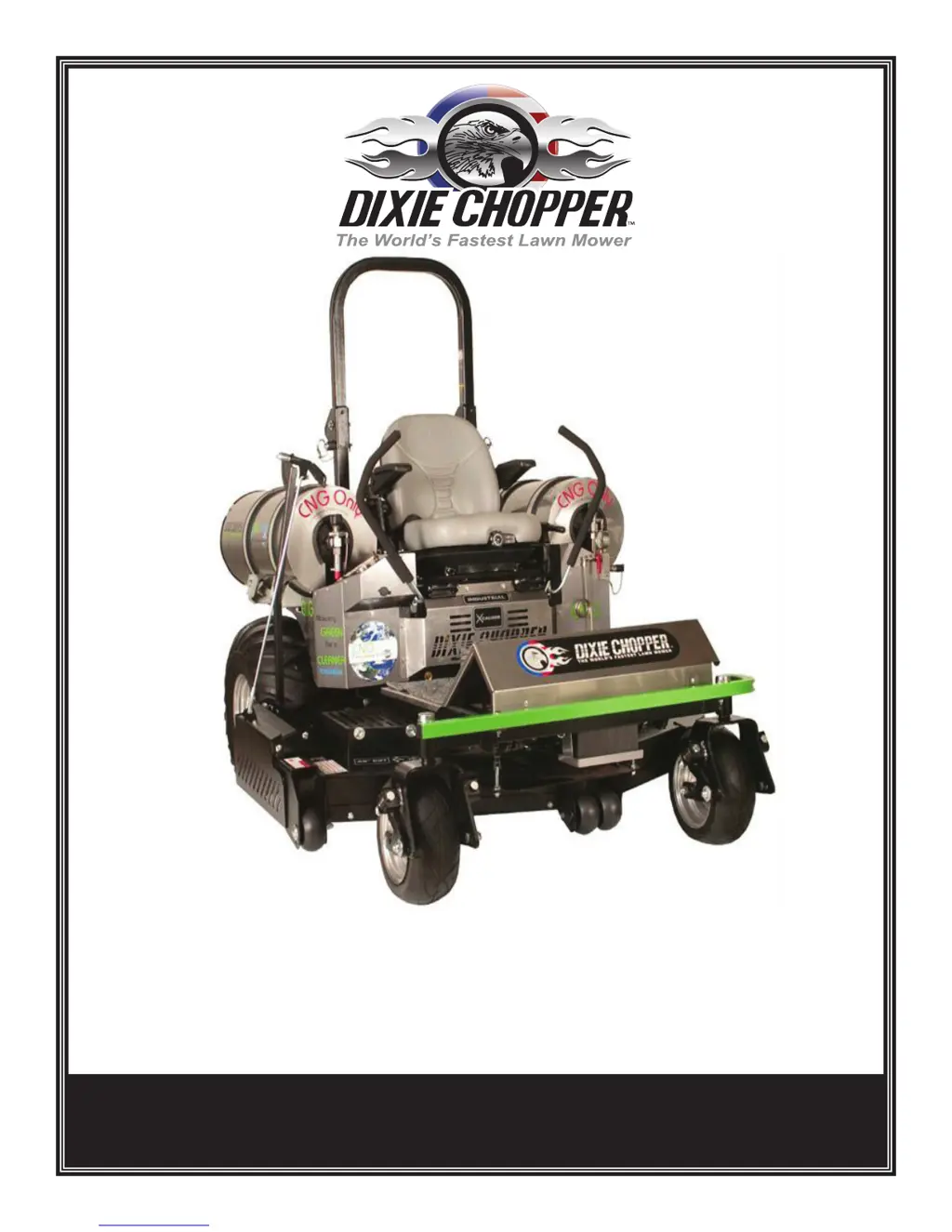

Alternative Xcaliber CNG Owner’s Manual
February, 2010700161

Table of Contents

Questions and Answers

  • N
    nicholasstoneAug 14, 2025
    Why won't my Dixie Chopper Eco-Eagle Xcaliber Lawn Mower starter crank?
    • J
      Joe RussoAug 14, 2025
      If the starter on your Dixie Chopper lawn mower isn't cranking, several factors could be the cause. First, ensure the PTO is disengaged and the parking brake is set. Also, check that the steering levers are in the neutral lock position. A low battery charge, corroded or loose electrical connections, or a blown fuse can also prevent the starter from cranking. In the case of electrical issues, clean the connector terminals with electrical contact cleaner, apply dielectric grease, and reconnect them. If the relay or switch is defective, contact an Authorized Service Dealer.
  • L
    lucasmatthewAug 21, 2025
    Why does my Dixie Chopper Eco-Eagle Xcaliber engine lose power?
    • M
      Micheal EricksonAug 21, 2025
      If your Dixie Chopper lawn mower engine is losing power, it could be due to several reasons. First, check if the engine load is excessive and reduce the ground speed. Also, ensure the air cleaner is clean and the oil level in the crankcase is sufficient. Other potential causes include plugged cooling fins and air passages, or a dirty fuel filter. If the issue persists, there might be dirt, water, or stale fuel in the fuel system, requiring assistance from an Authorized Service Dealer.
  • J
    John KnightAug 25, 2025
    How to fix uneven cutting height on my Dixie Chopper Lawn Mower?
    • H
      Hailey WalkerAug 25, 2025
      To fix an uneven cutting height on your Dixie Chopper lawn mower, start by sharpening the blades or installing new ones if they are bent. Ensure the mower deck is level from side to side and front to rear. Clean the underside of the mower deck to remove any debris. Also, verify that the tire pressure in the drive tires is correct. If the blade spindle is bent or the tips of adjacent blades are at an uneven cutting height, contact an Authorized Service Dealer or replace blades, spindles and/or check for damage to mower deck.
  • T
    Tammy ShannonAug 27, 2025
    What to do if Dixie Chopper Eco-Eagle Xcaliber Lawn Mower blades do not rotate?
    • M
      Megan WhiteAug 27, 2025
      If the blades on your Dixie Chopper lawn mower do not rotate, first check the drive belt tension. If the deck belt is worn, loose, or broken, install a new one. Make sure the deck belt is properly installed on the clutch and deck pulleys, idlers, and tensioning idler according to the routing decal on the deck. Replace any broken or missing idler springs. Also, ensure the drive belt is routed correctly by referring to the belt routing decal on the deck.
  • J
    juarezedwardAug 31, 2025
    Why won't my Dixie Chopper Lawn Mower drive?
    • D
      Dana CarterAug 31, 2025
      If your Dixie Chopper lawn mower won't drive, first ensure the steering levers are in the operating position. Other potential issues include a worn, loose, or broken drive or pump belt, or a drive or pump belt that is off a pulley, in which case you should change the belt. Check for a broken or missing idler spring and replace it if necessary. Also, verify that the hydraulic fluid level is adequate and not too hot; add hydraulic fluid to the reservoir or allow it to cool down if needed.
  • H
    Hector LeeSep 3, 2025
    Why is my Dixie Chopper Eco-Eagle Xcaliber Lawn Mower vibrating abnormally?
    • E
      emilyfergusonSep 3, 2025
      If your Dixie Chopper lawn mower is vibrating abnormally, start by checking the cutting blades for bends or unbalance and replace them if necessary. Ensure the blade mounting bolt and engine mounting bolts are tightened. Also, check for any loose engine pulleys, idler pulleys, or blade pulleys, and tighten them accordingly. If the engine pulley is damaged or the blade spindle is bent, contact an Authorized Service Dealer.
  • J
    Jared PenaSep 7, 2025
    What to do if my Dixie Chopper Eco-Eagle Xcaliber Lawn Mower clutch will not engage?
    • J
      Joseph RyanSep 7, 2025
      If the clutch on your Dixie Chopper lawn mower will not engage, start by checking if the fuse is blown and replace it if necessary. Also, check for low voltage supply at the clutch. Inspect the coil resistance, battery charge, charging system, and wiring connections, and replace if necessary. If the coil is damaged, replace the clutch. Ensure there is an adequate current supply by repairing or replacing the clutch lead wire or electrical system and cleaning connector contacts. If the rotor/armature airgap is too large, remove a shim or replace the clutch.
  • R
    roberthendersonSep 9, 2025
    Why does my Dixie Chopper Lawn Mower pull to the side?
    • M
      Mrs. Cassandra Davis DDSSep 10, 2025
      If your Dixie Chopper lawn mower pulls to the left or right, it is likely due to incorrect tire pressure in the drive tires. Adjust the tire pressure to the correct level.
  • M
    Michael HaydenNov 17, 2025
    What to do if my Dixie Chopper Eco-Eagle Xcaliber Lawn Mower engine will not start?
    • C
      Connor ThompsonNov 17, 2025
      If your Dixie Chopper lawn mower engine won't start, starts hard, or fails to keep running, begin by checking the fuel tank to ensure it's not empty and that the fuel shutoff valve is open. Verify the oil level in the crankcase and make sure the throttle is positioned midway between the “SLOW” and “FAST” settings. Other potential issues include a dirty fuel filter, a dirty air cleaner, a malfunctioning seat switch, corroded or loose electrical connections, or a faulty spark plug. Clean the spark plug, adjust it, or replace it if necessary, and check the spark plug wire connection. For electrical connections, clean the connector terminals thoroughly with electrical contact cleaner, apply dielectric grease, and reconnect. If the problem persists, it may be related to dirt, water, or stale fu...

Summary

Warranty Policies

Read the Manual

Children Safety

Slope Operation Safety

Provides crucial safety advice for operating the mower on slopes, including maximum angle limits and caution.

Safety Information: Thrown Objects, Moving Parts, and Roll Bar Use

Thrown Objects Hazards

Alerts to the danger of spinning mower blades throwing debris, potentially injuring bystanders.

Moving Parts Dangers

Highlights the risk of injury from moving parts and the importance of safety devices and operator presence controls.

Roll Bar Use

Instructs on the proper use of the roll bar and seat belt for rollover protection.

Safety Information: Hazardous Terrain, Fuel, and Enclosed Areas

Terrain and Obstacle Hazards

Warns about hazards near water, drop-offs, and overhead obstacles, advising clearance and caution.

CNG Fuel Safety

Provides critical safety warnings and contact information regarding the CNG fuel container and refueling.

Enclosed Areas Warning

Warns against operating the mower in enclosed areas due to poisonous carbon monoxide gas.

General Safety Precautions

General Safety Precautions (Continued)

MOWER CONTROLS

Ignition, Deck Engagement, and Parking Brake

Throttle and Steering Control Levers

Explains operation of throttle for engine speed and steering levers for movement and direction.

Start-Up and Operation of Mower

Starting the Mower

Provides step-by-step instructions for starting the mower engine safely.

Mowing Procedures

Outlines the steps for preparing the mower and starting the mowing process.

Stopping the Mower

Details the correct procedure for safely shutting down the mower engine.

Safety Interlock System

Explains the safety switches that prevent operation under unsafe conditions.

Start-Up and Operation of Mower (Continued)

Deck Height Adjustment

Zero Radius Turning Procedure

Details the technique for executing zero degree turns to avoid turf damage.

Mower Deck Operation

Steering Speed Control Levers Operation

Explains how to use the steering control levers for forward, reverse, and turning maneuvers.

Mowing Speed and Height Guidelines

Optimum Performance Tips

OCDC Operation

REFUELING THE MOWER

Basic Mower Adjustments, Maintenance, and Repairs

Blade Replacement

Blade Sharpening

Basic Mower Adjustments, Maintenance, and Repairs (Continued)

Under Deck Cleaning

Drive Belt Adjustment and Replacement

Deck Level Check

Fluid Recommendations

Fuel and Engine Oil Recommendations

Drive System and Lubrication Grease

Routine Maintenance

Routine Maintenance (Continued)

Verify Safety Interlock System

Inspect for Loose Hardware and Damage

Check Fuel Lines and Fittings

Clean Air Filter Components

Lubrication Points

Troubleshooting

Troubleshooting Common Issues

Engine Performance and Drive Issues

Addresses engine power loss, pulling to one side, and machine not driving.

Cutting and Vibration Problems

Covers uneven cutting height, abnormal vibration, and blades not rotating.

Troubleshooting Clutch Issues

Clutch Will Not Engage

Details possible causes and corrective actions when the clutch fails to engage.

Dixie Chopper Eco-Eagle Xcaliber Specifications

General IconGeneral
Blade Tip Speed18, 500 fpm
Deck TypeFabricated
Cutting Width60 inches
Fuel Capacity12 gallons
Cutting Height1.5 - 5 inches
Speed12 mph forward / 5 mph reverse
