Dixie Chopper Eco-Eagle Xcaliber - Belt Route and Common Parts

24
Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com
Engine
Oil
10075 Lucas 5W-30 Synthetic Racing Oil (2 quarts)
Change every 100 hours
Filter
070185D
Change every 100 hours
Drive System
Oil
10075 Lucas 15W-40 Magnum Motor Oil
Keep/Maintain reservoir to Cold Fill Line
Initial change 100 hours, every 400 hours thereafter
Drive system oil and lter changes MUST be performed by an Authorized Dixie
Chopper Service Dealer ONLY
Tire/Wheel
400232 Front Tire/Wheel Assembly (12psi) 15x6-8.00
400275 Front Wheel Bearing
400277 Front Wheel Spacer
400235 Rear Tire/Wheel Assembly Left (7psi) 27x13-12
400236 Rear Tire/Wheel Assembly Right (7psi) 27x13-12
Blades
66” ECO-Eagle
30227-66X
30227-66T
Spark Plug
0E6037A (0.040” Gap)
Change every 100 hours or when needed
Air Filter
0E3557 Primary Filter
0E3656 Safety
Replace element every 100 hours

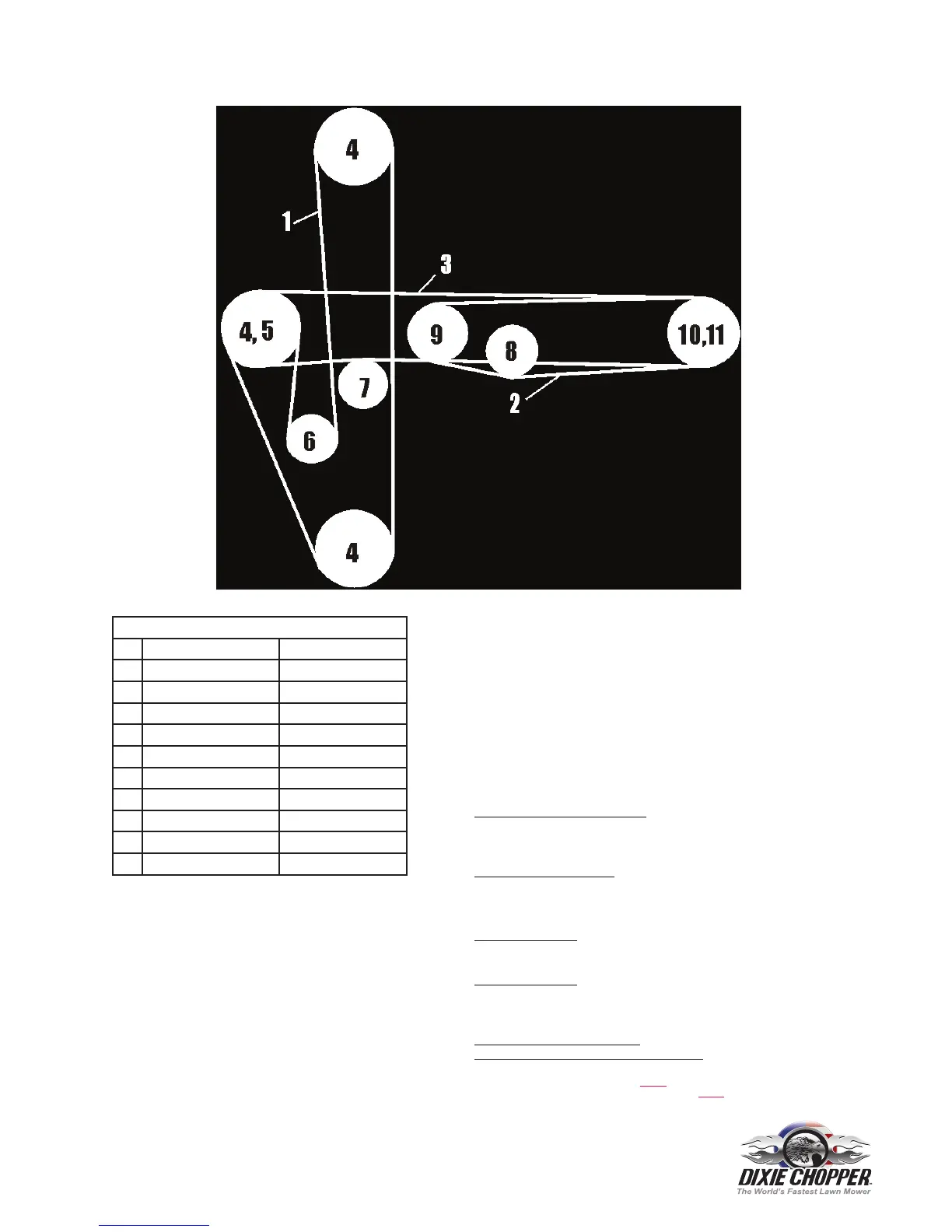

Belt Route and Common Parts
ECO-Eagle 66
1 Deck Belt 2006B144R
2 Engine-Trans. Belt 2006B42R
3 Engine-Deck Belt 2006B98W
4 Bottom Deck Pulley 9907675X100S
5 Top Deck Pulley 300470
6 Deck Idler Pulley 68224
7 Eng.-Deck Idler Pulley 300401
8 Trans. Idler Pulley 30234
9 Trans. Pulley 200083
10 Engine Pulley 200104
11 Clutch 500056
